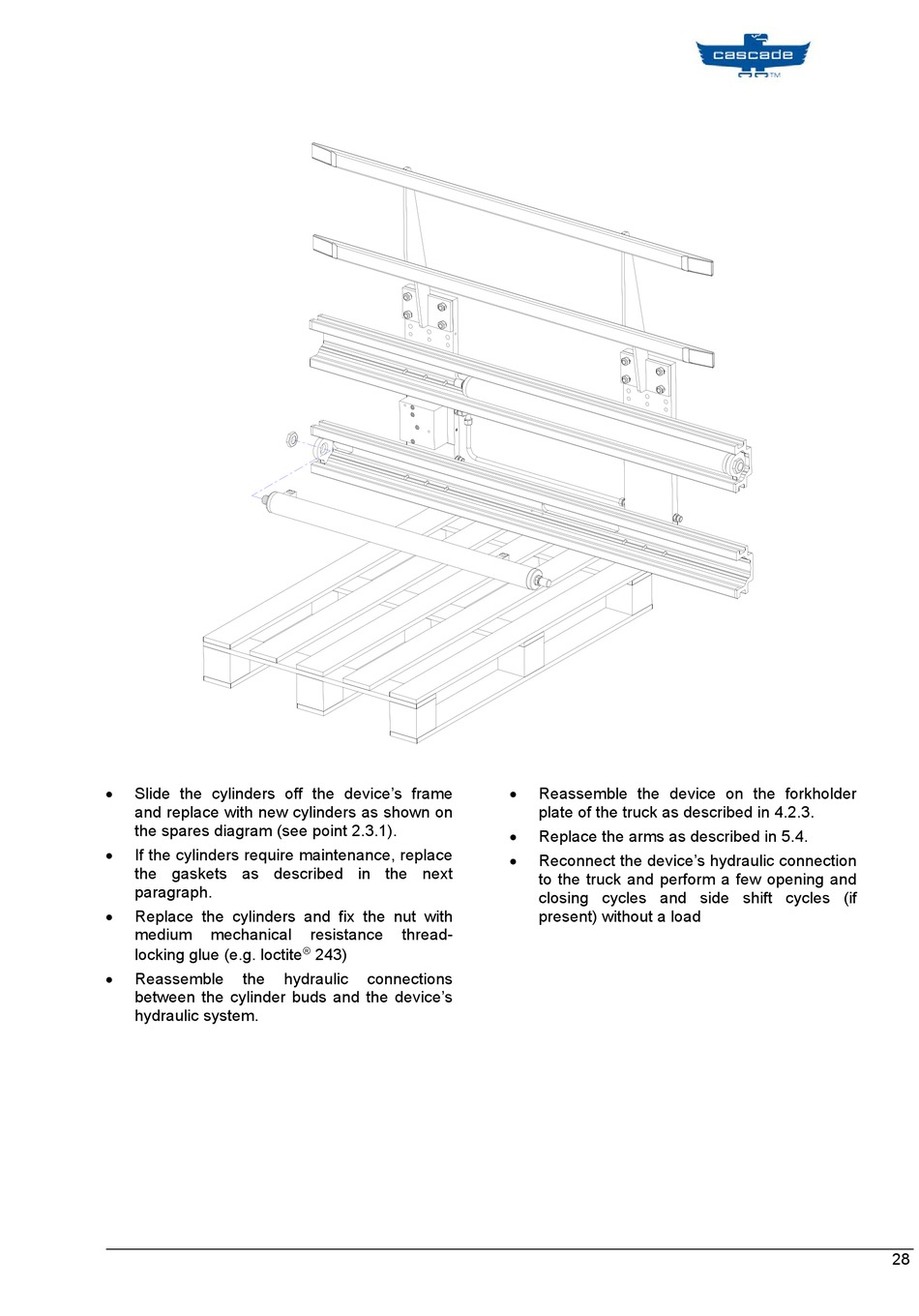

Slide the cylinders off the device's frame
and replace with new cylinders as shown on
the spares diagram (see point 2.3.1).

If the cylinders require maintenance, replace
the gaskets as described in the next
paragraph.

Replace the cylinders and fix the nut with
medium mechanical
locking glue (e.g. loctite

Reassemble the
between the cylinder buds and the device's
hydraulic system.
resistance thread-

243)
hydraulic connections

Reassemble the device on the forkholder
plate of the truck as described in 4.2.3.

Replace the arms as described in 5.4.

Reconnect the device's hydraulic connection
to the truck and perform a few opening and
closing cycles and side shift cycles (if
present) without a load
