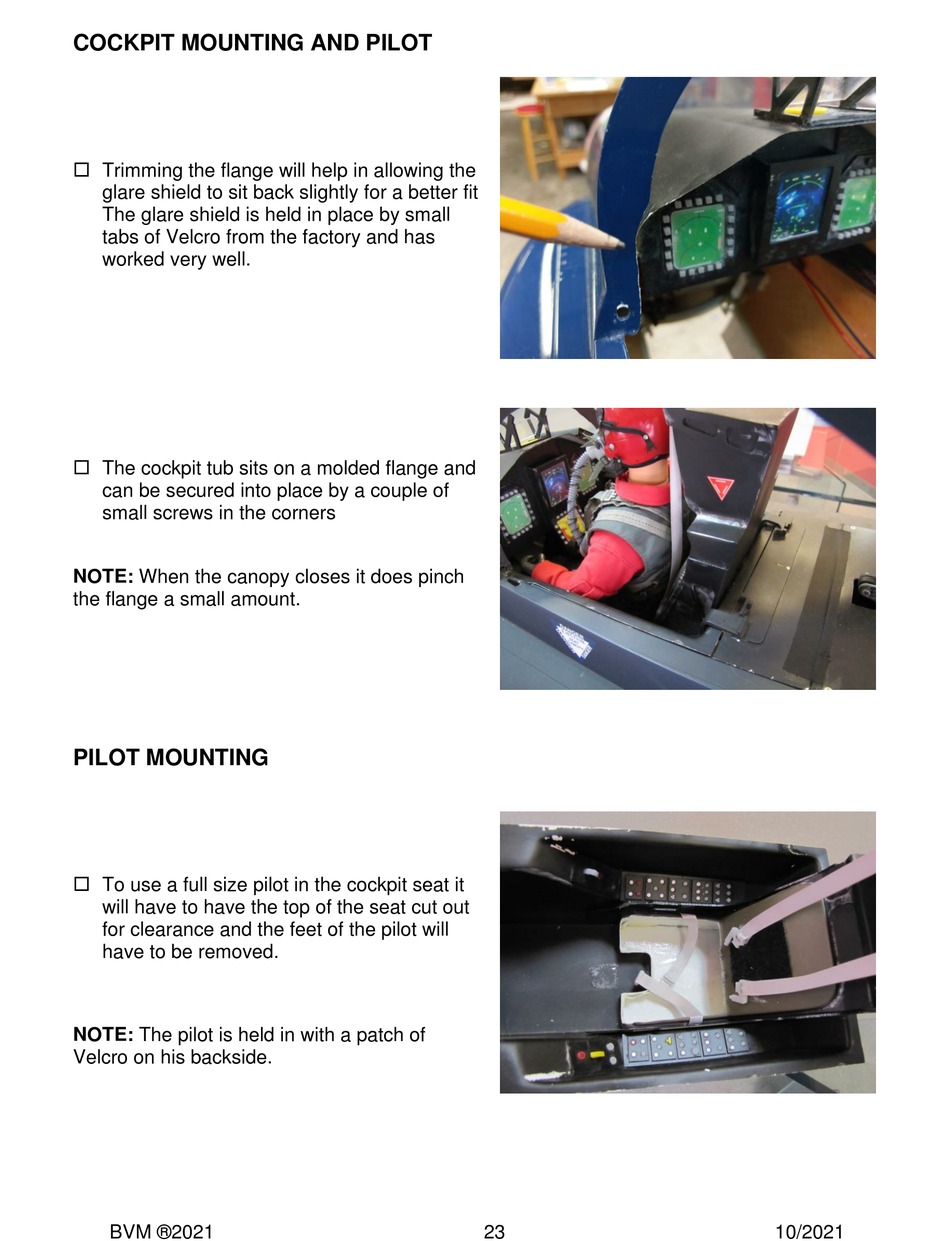

COCKPIT MOUNTING AND PILOT

 Trimming the flange will help in allowing the
glare shield to sit back slightly for a better fit
The glare shield is held in place by small
tabs of Velcro from the factory and has
worked very well.
 The cockpit tub sits on a molded flange and
can be secured into place by a couple of
small screws in the corners
NOTE: When the canopy closes it does pinch
the flange a small amount.

PILOT MOUNTING

 To use a full size pilot in the cockpit seat it
will have to have the top of the seat cut out
for clearance and the feet of the pilot will
have to be removed.
NOTE: The pilot is held in with a patch of
Velcro on his backside.
BVM ®2021 23 10/2021
