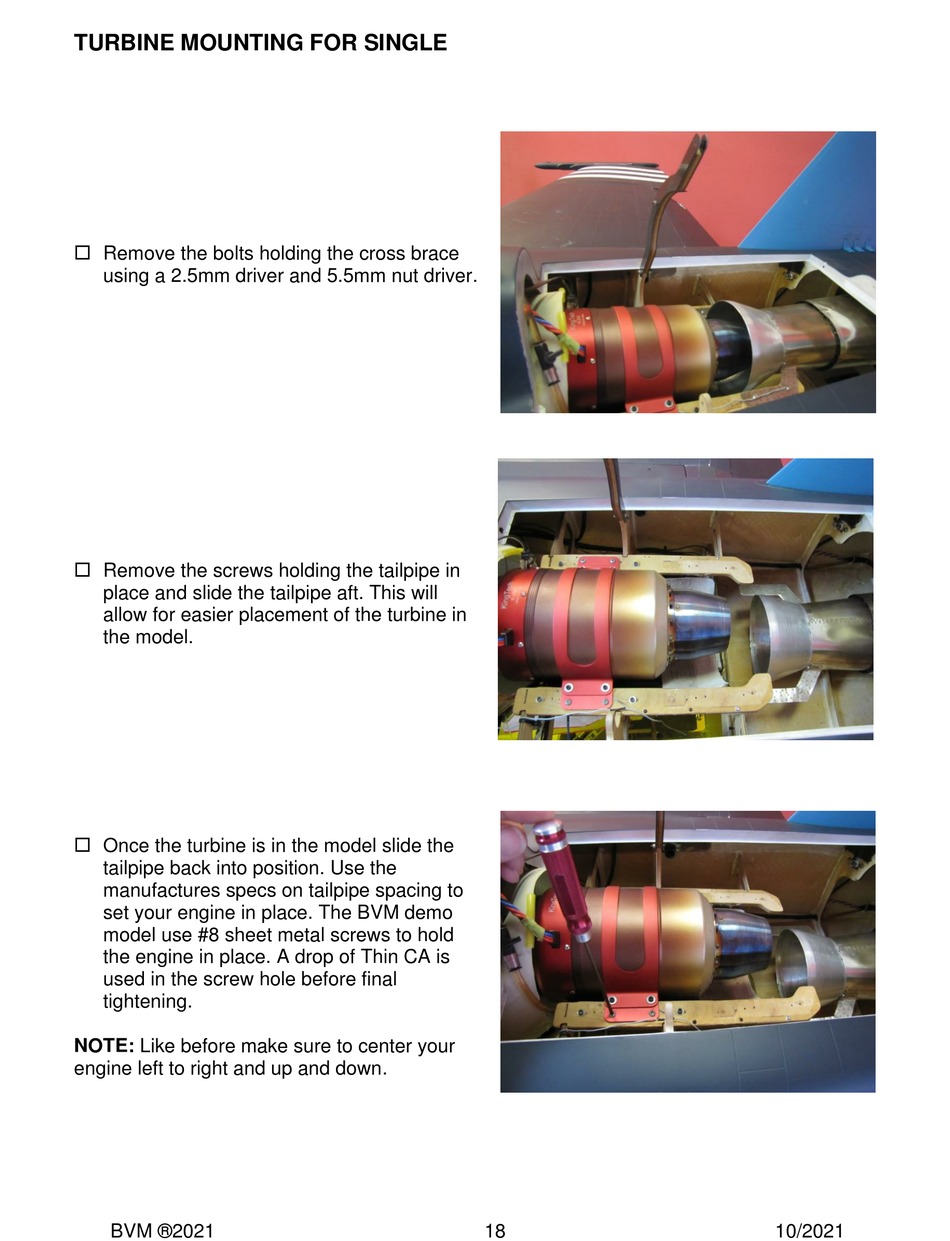

TURBINE MOUNTING FOR SINGLE

 Remove the bolts holding the cross brace
using a 2.5mm driver and 5.5mm nut driver.
 Remove the screws holding the tailpipe in
place and slide the tailpipe aft. This will
allow for easier placement of the turbine in
the model.
 Once the turbine is in the model slide the
tailpipe back into position. Use the
manufactures specs on tailpipe spacing to
set your engine in place. The BVM demo
model use #8 sheet metal screws to hold
the engine in place. A drop of Thin CA is
used in the screw hole before final
tightening.
NOTE: Like before make sure to center your
engine left to right and up and down.
BVM ®2021 18 10/2021
