TVLogic F-5A Operation Manual page 20

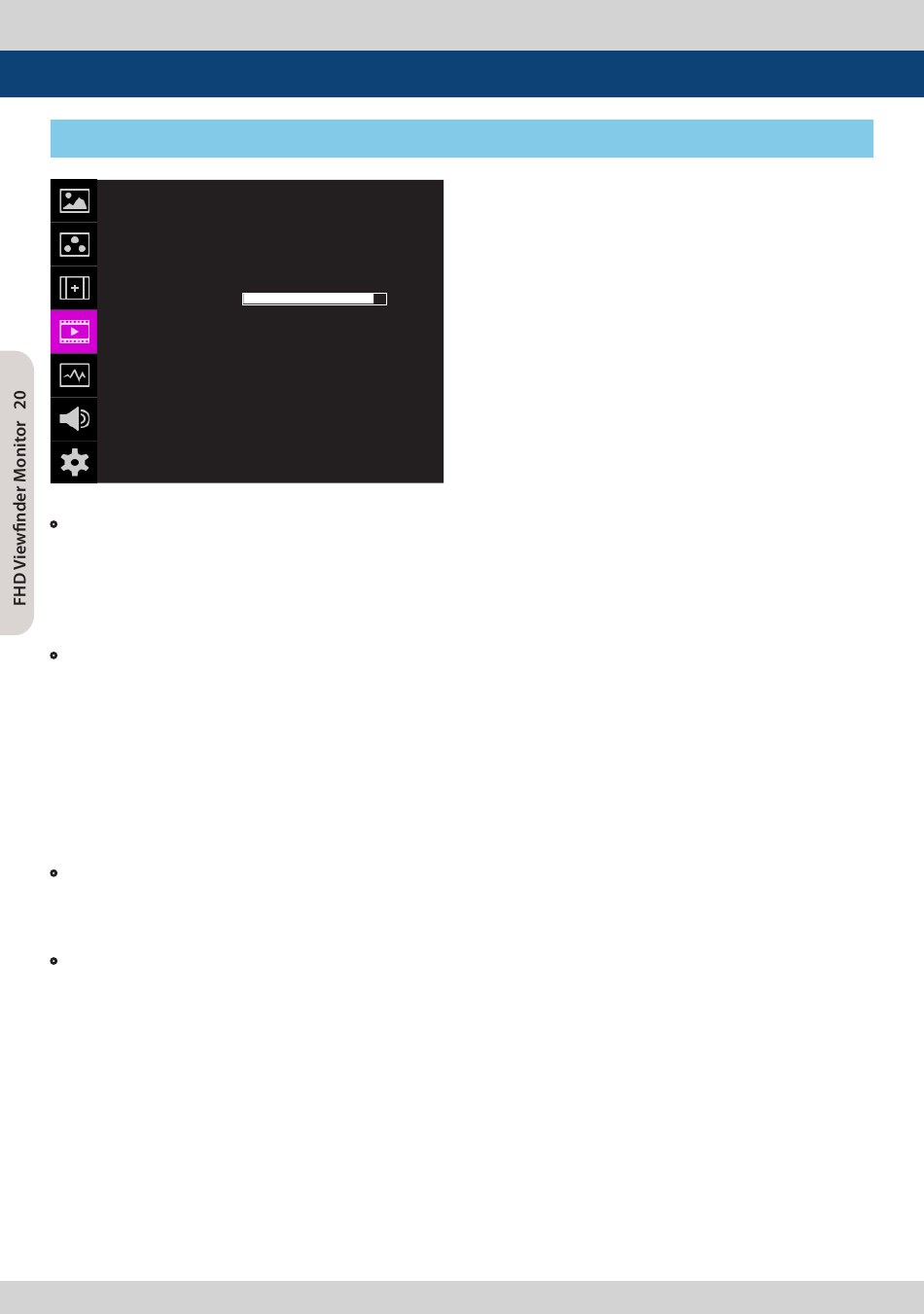

5. Menu Operations
[4] VIDEO
VIDEO이
DSLR
DSLR SCALE
TIMECODE
FOCUS ASSIST
FOCUS AS COLOR
FOCUS AS LEVEL
SCR TALLY
SCR OP LEVEL
SCR TALLY COL
LOW BAT DIS
• SCR TALLY
- Used to set Tally operation according to
the input level of TALLY IN terminal which is
among the terminals of XLR 4P connector in
the rear.
• SCR TALLY LEVEL
- Used to set the input level of Tally operation.
(Open&Low : less than 0.6V, High Range :
5V±2.5V)
- High: Set the level as "High" to activate the
Tally and set the level as "Low" to inactivate
the Tally.
- Low: Set the level as "Low" to activate the Tally
and set the level as "High" to inactivate the Tally.
• SCR TALLY COL
- Used to set Tally color.
- Available colors are Red, Green and Yellow.
• LOW BAT DIS
- Used to set Low Battery Display function.
- When the battery becomes weak, [Low
Battery] sign is indicated on the OSD.
F-5A
CANON 7D
LIVE VIEW
OFF
OFF
RED
+ 90
OFF
LOW
RED
OFF
PAGE(2/2)
