WisyCom MTH410 User Manual page 7

Using <up/down> selector all menus can be accessed in sequence, push <click> to enter edit mode
(on the left side of the display appear "EDIT" and the selected parameter starts blinking):
click
up down

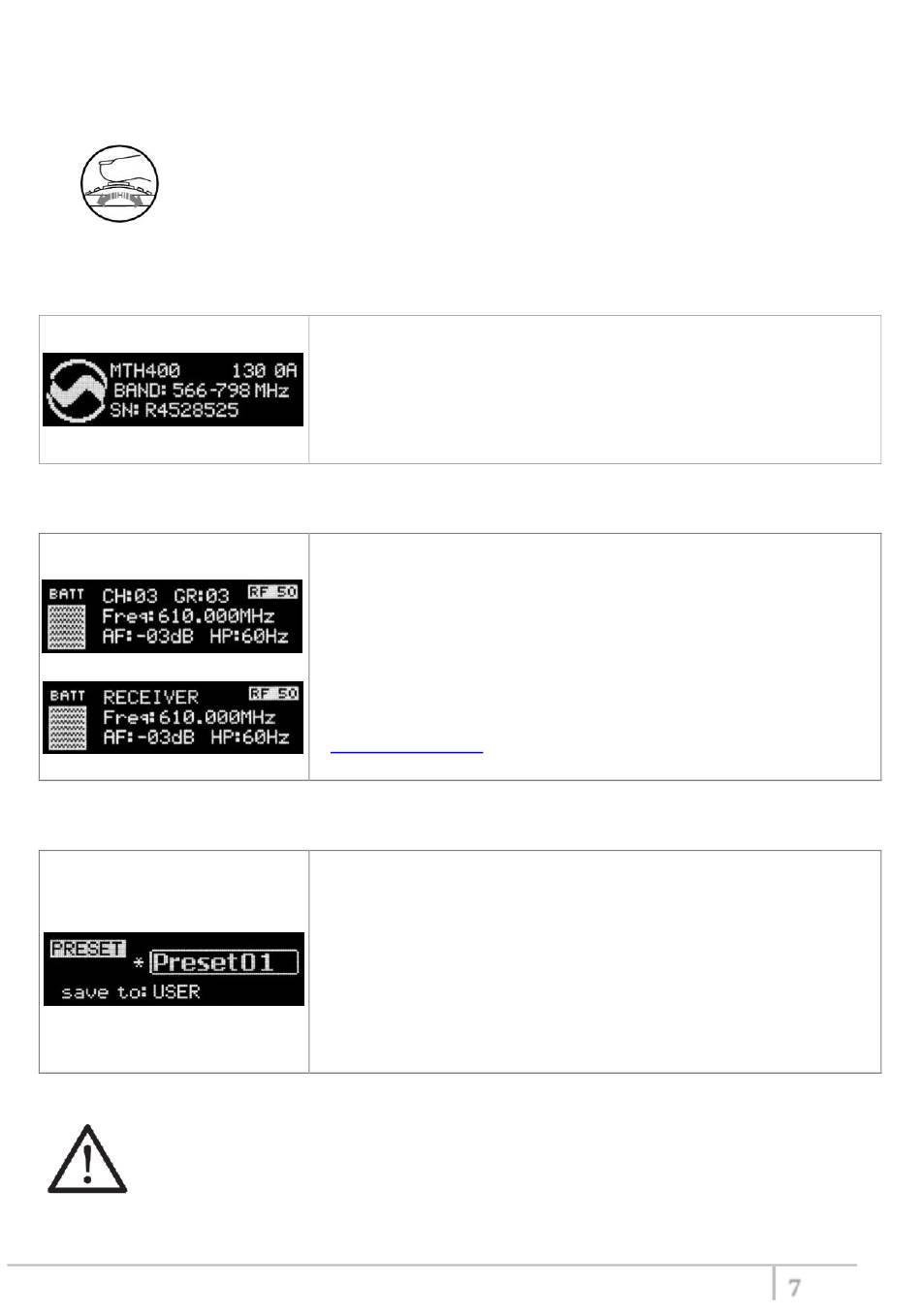

<START UP> menu
These menus are displayed during power up for few seconds.
<STATUS> menu
This is the first menu displayed after power up.
<PRESET> menu
This menu can be entered by scrolling selector.
The other 8 configuration presets are user programmable thru the infrared and the PC interface
(using the programmer UPK 300/UPK
We provide the device with some preset configurations specifically designed for certain types of
microphone or applications (it's possible to change these presets in any time using the TX manager).
All parameters can be "left unchanged", "changed" or "changed and lock", allowing a very flexible
way to pre-program MTH410 configuration.
<up/down> to setup field
<click> again to confirm changes and exit.
If no button is pressed, the device exits the EDIT mode and returns the
parameter as it was previously set.
This menu gives indication on product:
- product id (MTH410),
- the firmware release (ex. 1.30.0A),
- the band in extended format and
- the serial number.
Keep selector pushed to hold this menu!
Major info are displayed:
- Current channel/group (i.e. CH:03 GR:03) or Receiver's name
(i.e. RECEIVER) if the microphone has already been synchronized
with a receiver
- Current frequency (i.e. 610 MHz)
- Mic gain (i.e. -03dB) and high pass filter (i.e. 60Hz)
- If in the top right there is "RF10", "RF 50"or "RF 100", the
transmission is active respectively at 10, 50 or 100mW (see
RF/BATTERY
- On left side, the battery bar is displayed
MTP41 can recall configuration presets.
"FACTORY" recalls the Wisycom factory configuration.
"USER" recalls the user configuration (the transmitter configuration
is copied into the USER using the "save to" submenu).
All "USER" menus are not locked by default, thus this is quick way to
unlock features!
When the user changes some parameters from the PRESET
configuration (for less than frequency) a star appears on the top-
right corner until a save command is executed.
menu)
Mini
or the receiver MRK950/MRK960).
MTH410 User Manual
7
