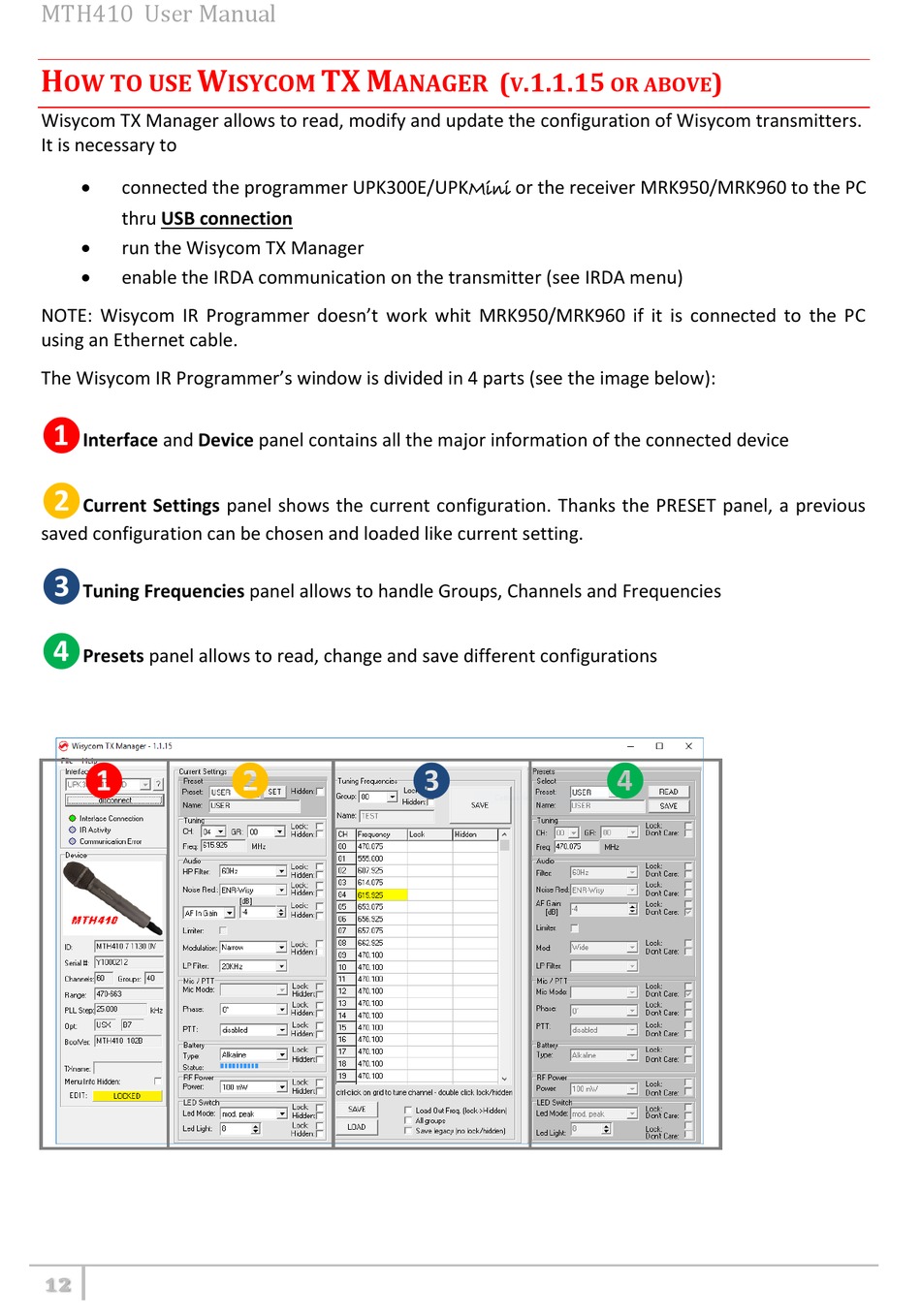

WisyCom MTH410 User Manual page 12

MTH410 User Manual
H W
OW TO USE
Wisycom TX Manager allows to read, modify and update the configuration of Wisycom transmitters.
It is necessary to

connected the programmer UPK300E/UPKMini or the receiver MRK950/MRK960 to the PC
thru USB connection

run the Wisycom TX Manager

enable the IRDA communication on the transmitter (see IRDA menu)
NOTE: Wisycom IR Programmer doesn't work whit MRK950/MRK960 if it is connected to the PC
using an Ethernet cable.
The Wisycom IR Programmer's window is divided in 4 parts (see the image below):
❶
Interface and Device panel contains all the major information of the connected device
❷
Current Settings panel shows the current configuration. Thanks the PRESET panel, a previous
saved configuration can be chosen and loaded like current setting.
❸
Tuning Frequencies panel allows to handle Groups, Channels and Frequencies
❹
Presets panel allows to read, change and save different configurations
❶
12
TX M
ISYCOM ANAGER
❷
( .1.1.15
V
❸
)
OR ABOVE
❹
