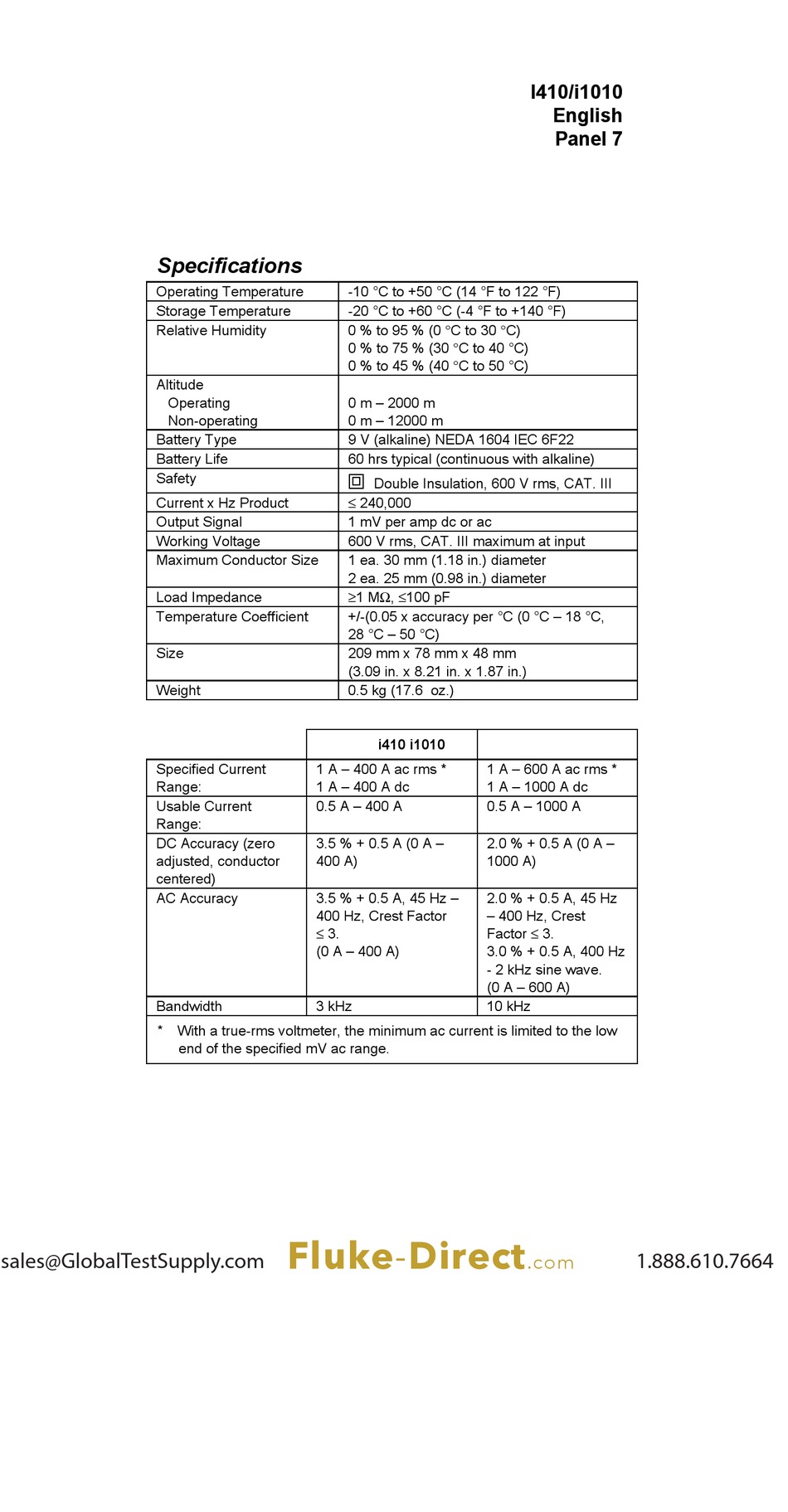

Specifications

Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Operating
Non-operating
Battery Type
Battery Life
Safety
Current x Hz Product
Output Signal
Working Voltage
Maximum Conductor Size
Load Impedance
Temperature Coefficient
Size
Weight
Specified Current
Range:
Usable Current
Range:
DC Accuracy (zero
adjusted, conductor
centered)
AC Accuracy
Bandwidth
* With a true-rms voltmeter, the minimum ac current is limited to the low
end of the specified mV ac range.
Fluke-Direct
-10 °C to +50 °C (14 °F to 122 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
0 % to 95 % (0 °C to 30 °C)
0 % to 75 % (30 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C)
0 m – 2000 m
0 m – 12000 m
9 V (alkaline) NEDA 1604 IEC 6F22
60 hrs typical (continuous with alkaline)
s
Double Insulation, 600 V rms, CAT. III
≤ 240,000
1 mV per amp dc or ac
600 V rms, CAT. III maximum at input
1 ea. 30 mm (1.18 in.) diameter
2 ea. 25 mm (0.98 in.) diameter
≥1 MΩ, ≤100 pF
+/-(0.05 x accuracy per °C (0 °C – 18 °C,
28 °C – 50 °C)
209 mm x 78 mm x 48 mm
(3.09 in. x 8.21 in. x 1.87 in.)
0.5 kg (17.6 oz.)
i410 i1010
1 A – 400 A ac rms *
1 A – 400 A dc
0.5 A – 400 A
3.5 % + 0.5 A (0 A –
400 A)
3.5 % + 0.5 A, 45 Hz –
400 Hz, Crest Factor
≤ 3.
(0 A – 400 A)
3 kHz
I410/i1010
English
Panel 7
1 A – 600 A ac rms *
1 A – 1000 A dc
0.5 A – 1000 A
2.0 % + 0.5 A (0 A –
1000 A)
2.0 % + 0.5 A, 45 Hz
– 400 Hz, Crest
Factor ≤ 3.
3.0 % + 0.5 A, 400 Hz
- 2 kHz sine wave.
(0 A – 600 A)
10 kHz
