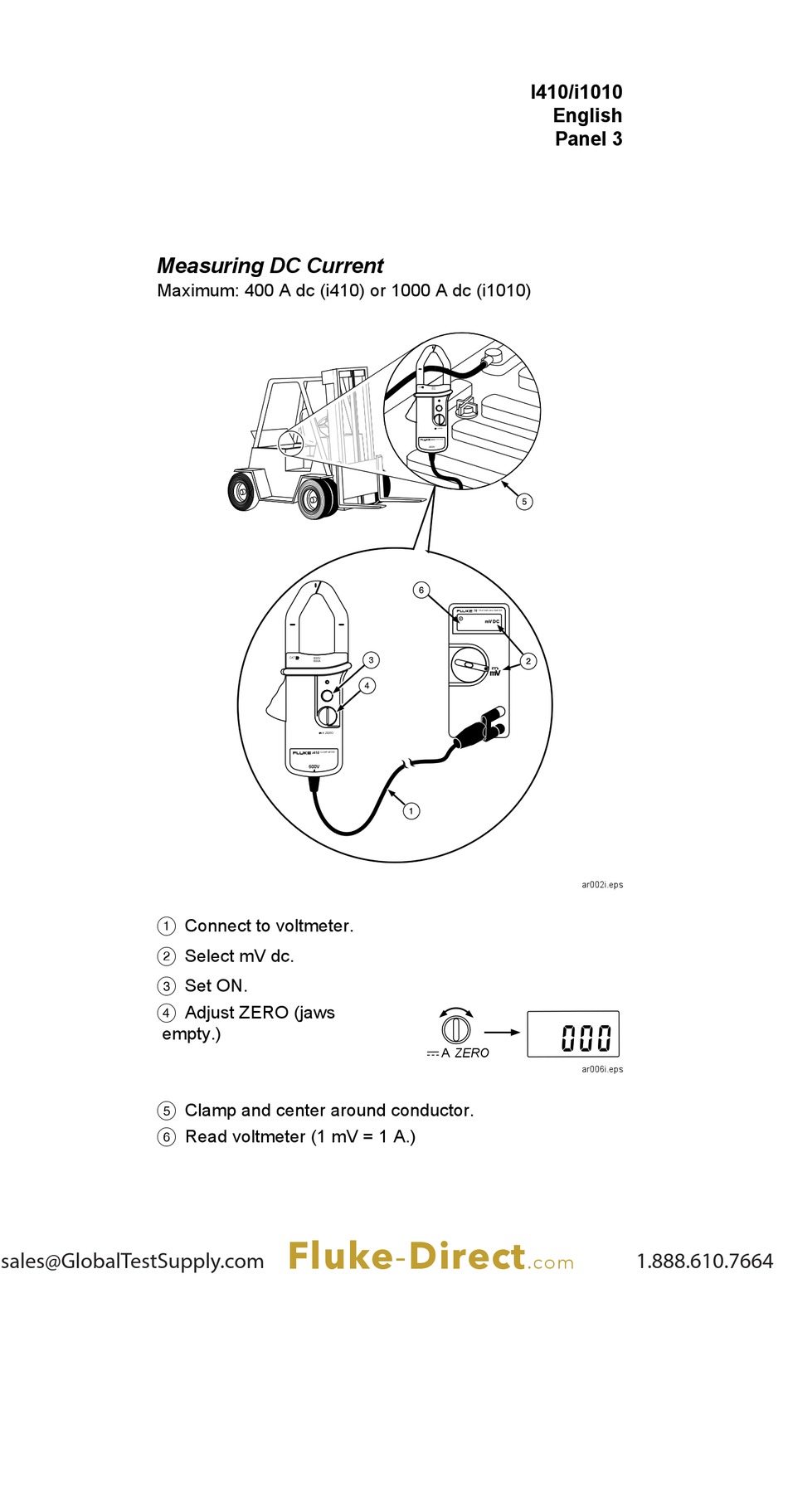

Measuring DC Current
Maximum: 400 A dc (i410) or 1000 A dc (i1010)
CAT
A Connect to voltmeter.
B Select mV dc.
C Set ON.
D Adjust ZERO (jaws
empty.)
E Clamp and center around conductor.
F Read voltmeter (1 mV = 1 A.)
Fluke-Direct
CAT
600V
600A
A
ZERO
i410
CLAMP METER
600V
600V
600A
A
ZERO
i410
CLAMP METER
600V
I410/i1010
English
Panel 3
76
TRUE RMS MULTIMETER
mV
ar002i.eps
ar006i.eps
