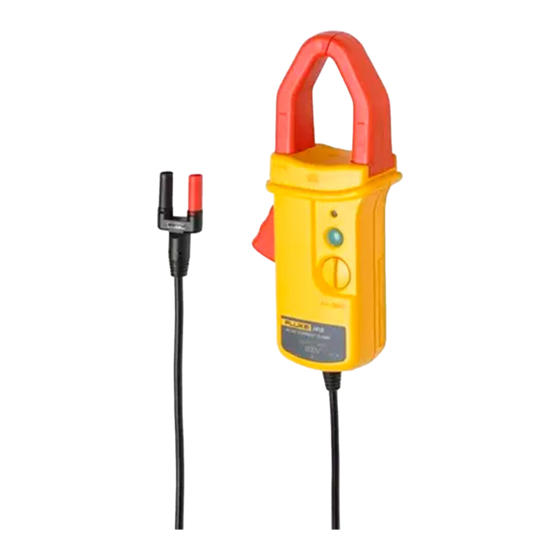

Ac/dc current clamp
Hide thumbs Also See for i410:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
AC/DC Current Clamp
P
Read First: Safety Information
• Avoid working alone to ensure that assistance can be rendered.
• Do not use the clamp if the clamp or leads appear damaged, or if you
suspect that the clamp is not operating properly.
• Use extreme caution when working around bare conductors or bus
bars. Accidental contact with the conductor could result in electric
shock.
• Use caution when working with voltages above 30V rms or 60V dc.
Such voltages pose a shock hazard.
• Never use the clamp on a circuit with a voltage higher than 600V
(CAT. III) or a frequency higher than 400 Hz (i410) or 2 kHz (i1010.)
The clamp may be damaged if these limits are exceeded.
• Use the clamp only as specified in this instruction sheet; otherwise,
the protection provided by the clamp may be impaired.
• Read the operating instructions before use and follow all safety
information.
• CAT. III - Industrial Locations (IEC 1010-1).
PN 617677 September 1996, Rev.1, 4/97
©1996, 1997 Fluke Corporation. All rights reserved. Printed in Thailand.
i410/i1010
Instruction Sheet
®

Advertisement

Table of Contents
loading

Related Manuals for Fluke i410

Summary of Contents for Fluke i410

  • Page 1 Such voltages pose a shock hazard. • Never use the clamp on a circuit with a voltage higher than 600V (CAT. III) or a frequency higher than 400 Hz (i410) or 2 kHz (i1010.) The clamp may be damaged if these limits are exceeded.

  • Page 2: Features And Connections

    A Jaw Lever B Jaw Centering Marks C ON Indicator 600V 600A D ON/OFF Switch E Zero Adjust F Battery Access ZERO G Output Cable i410 CLAMP METER 600V Minimum voltmeter requirements: TRUE RMS MULTIMETER • Accepts safety- shrouded banana plugs.

  • Page 3: Measuring Dc Current

    Measuring DC Current Maximum: 400A dc (i410) or 1000A dc (i1010) 600V 600A ZERO i410 CLAMP METER 600V TRUE RMS MULTIMETER 600V 600A ZERO i410 CLAMP METER 600V ar002i.eps A Connect to voltmeter. B Select mV dc. C Set ON.

  • Page 4: Measuring Ac Current

    Measuring AC Current Maximum: 400A ac rms (i410) or 600A ac rms (i1010) 4 5 6 Speed TRUE RMS MULTIMETER ar003i.eps A Connect to voltmeter. B Select mV ac (or V ac, but resolution may be limited to 1A.) C Set ON.

  • Page 5: Testing The Battery

    B Select V dc. 600V 600A C ≤ 7.0V dc = replace battery. TRUE RMS MULTIMETER (Voltmeter input ZERO impedance ≥ 1 MΩ) i410 CLAMP METER 600V ar004i.eps Replacing the Battery For specified battery life, use an alkaline battery. ar005i.eps...

  • Page 6: If The Current Clamp Does Not Work

    Do not use abrasives or solvents. Service and Parts The Current Clamp should be serviced only by a qualified service technician. For service information, contact your nearest Fluke dealer or service center. Specifications Operating Temperature -10 to 50°C (14 to 122°F) Storage Temperature -20 to 60°C (-4 to 140°F)
  • Page 7 Specified Current 1 - 400A ac rms * 1 - 600A ac rms * Range: 1 - 400A dc 1 - 1000A dc Usable Current 0.5 - 400A 0.5 - 1000A Range: DC Accuracy (zero 3.5% + 0.5A (0 - 400A) 2.0% + 0.5A (0-...
  • Page 8 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
