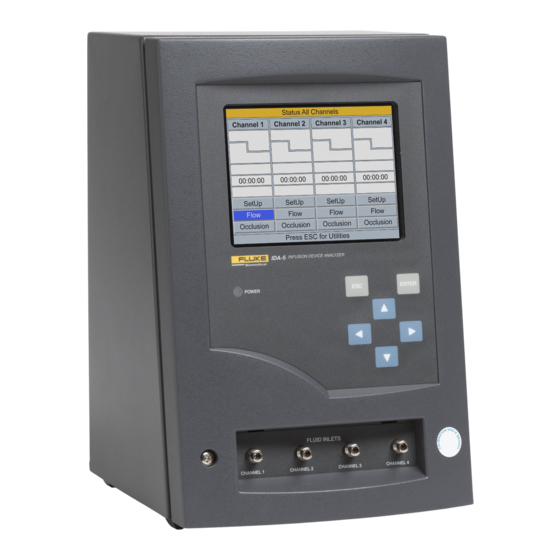

- Page 1 IDA-5 Infusion Device Analyzer Getting Started PN 3975990 April 2013, Rev. 1 © 2013 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
- Page 3 Fluke Biomedical warrants this instrument against defects in materials and workmanship for one year from the date of original purchase OR two years if at the end of your first year you send the instrument to a Fluke Biomedical service center for calibration.
- Page 4 Copyright Release Fluke Biomedical agrees to a limited copyright release that allows you to reproduce manuals and other printed materials for use in service training programs and other technical publications. If you would like other reproductions or distributions, submit a written request to Fluke Biomedical.
- Page 5 Fluke Biomedical, we recommend using United Parcel Service, Federal Express, or Air Parcel Post. We also recommend that you insure your shipment for its actual replacement cost. Fluke Biomedical will not be responsible for lost shipments or instruments that are received in damaged condition due to improper packaging or handling.
- Page 6 Restrictions and Liabilities Information in this document is subject to change and does not represent a commitment by Fluke Biomedical. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by Fluke Biomedical for the use or reliability of software or equipment that is not supplied by Fluke Biomedical, or by its affiliated dealers.
-
Page 9: Table Of Contents
Table of Contents Title Page Introduction ........................1 Intended Use ........................1 Safety Information ......................1 Symbols ......................... 5 Instrument Familiarization ....................6 Product Connections ...................... 8 Connect Infusion Devices ..................8 Connect Drains to the Product .................. 9 Connect Accessories ...................... 9 Keyboard ........................ - Page 10 Inside ........................11 Test Fluid ........................11 Storage ........................12 Shipping ........................12 Specifications ........................ 12 General Specifications ....................12 Performance Specifications ..................13 Other Specification ....................14...
-
Page 11: Introduction
Introduction Safety Information The Fluke Biomedical IDA-5 Infusion Device Analyzer A Warning identifies hazardous conditions and actions that could cause bodily harm or death. A Caution (the Product) is a precision instrument that examines the performance of medical infusion devices. The Product... - Page 12 IDA-5 Getting Started • • Do not use and disable the Product if it Do not use the Product around explosive is damaged. gas, vapor, or in damp or wet environments. • Use this Product indoors only. • Do not use the Product on infusion •...
- Page 13 Infusion Device Analyzer Safety Information • • The Product must be properly earthed. The Product is intended for use with Only use a supply socket that has a single-phase, grounded power. It is not protective earth contact. If there is any intended for dual, split-phase or three- doubt as to the effectiveness of the phase power configurations.
- Page 14 IDA-5 Getting Started • Caution Do not expose the Product to temperature extremes. For proper To prevent possible damage to the product operation, ambient temperatures should or to equipment under test: be from 15 °C to 30 °C (59 °F to 86 °F).
-
Page 15: Symbols
With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste. Go to Fluke’s website for recycling information. -
Page 16: Instrument Familiarization
IDA-5 Getting Started Instrument Familiarization Tables 2 and 3 and Figures 1 and 2 tell you about the controls and connections on the front and rear panels of the Product. Table 2. Front-Panel Controls and Connections Item Description Display (LCD) ... - Page 17 Infusion Device Analyzer Instrument Familiarization Table 3. Rear-Panel Controls and Connections Item Description Handle Power switch Power inlet Equipotential post USB “B” connector – Computer connection. USB “A” connectors – Connect a maximum of four accessories such as: ...
-
Page 18: Product Connections
IDA-5 Getting Started Product Connections The Product connects to infusion devices through the front-panel inlet ports. Fluid drain hoses and accessories 20 ml Syringe connections are made through the rear-panel to aid priming connections. Connect Infusion Devices As shown in Figure 3, it is recommended that all infusion device connections be made to the Product front-panel inlet connectors through 3-way stopcocks. -
Page 19: Connect Drains To The Product
Infusion Device Analyzer Connect Accessories Caution When you connect drain tubing to the Product outlets: Do not use delivery set or components that • Connect different drain tubes to each channel. have been used for prior testing for patient •... -
Page 20: Keyboard
IDA-5 Getting Started Product Maintenance Keyboard It is recommended that a small footprint USB keyboard be The subsequent sections tell you how to maintain the used with the Product. The keyboard is necessary to Product. record data about the infusion device under test. -
Page 21: Outside
Infusion Device Analyzer Product Maintenance • Test Fluid Do not pour fluid onto the Product surface. Fluid seepage into the electrical The Product is intended to operate with de-ionized water circuitry may cause the Product to fail. with added detergent. Fluids intended for use on patients, such as high viscosity, oily, or corrosive substances will •... -
Page 22: Storage
IDA-5 Getting Started Specifications Storage Remove all water from the Product before storage, General Specifications particularly if temperatures can fall below 5 °C (41 °F). Do Operating Voltage not pressurize the inlet ports. It is safest to use a medical Range ...... -
Page 23: Performance Specifications
Infusion Device Analyzer Specifications Performance Specifications Volume Measurement Flow Rate Measurement Method ......Volume is measured directly by the measuring module in Method ......Flow is calculated by minimum sample sizes of measuring volume over time 60 μl Range ......0.1 to 1500 ml/h (2500 ml/h Range ...... -
Page 24: Other Specification
IDA-5 Getting Started Pressure Measurement Other Specification Method (back Pressure Templates ....Predetermined Test Sequences. Typical capacity 200 and Flow test) ..Direct measurement of pressure at the inlet port. Storage of Results ..Test results stored for later Range ..... 0 to 45 psi or equivalent in mmHg viewing, printing or transfer to PC.
