AC/DC Solar Current Clamp
Introduction
Fluke current clamps extend the current ranges of Fluke tools.

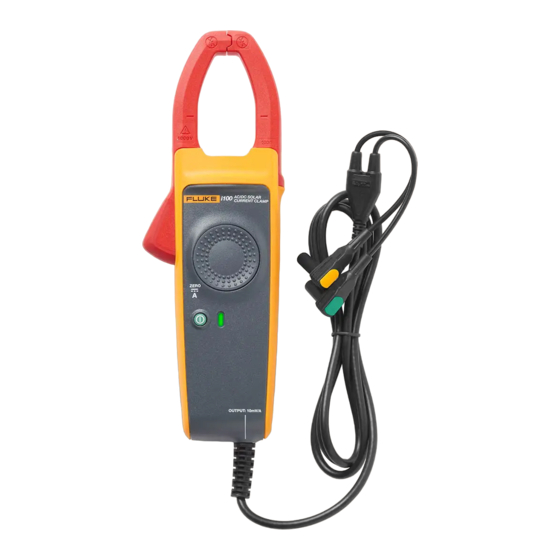

The Fluke i100 AC/DC Solar Current Clamp is highly reliable,
measures 1 A to 100 A and provides accurate current reading
without breaking the circuit. This clamp measures both ac and dc
current with a large jaw, battery-powered Hall-effect probe that
gives access to difficult to reach areas.
Safety
A Warning identifies hazardous conditions and procedures that
are dangerous to the user. A Caution identifies conditions and
procedures that can cause damage to the Product or the
equipment under test.
XW
To prevent possible electrical shock, fire, or personal
injury:
Carefully read all instructions.
Read all safety information before you use the
Product.
PN 5292418 (English) August 2022
©2022 Fluke Corporation. All rights reserved. Specifications are
subject to change without notice. All Product names are trademarks of
their respective companies.
Fluke-Direct
i100
100 A
Instructions
Warning
.com
1.888.610.7664
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fluke i100
Summary of Contents for Fluke i100

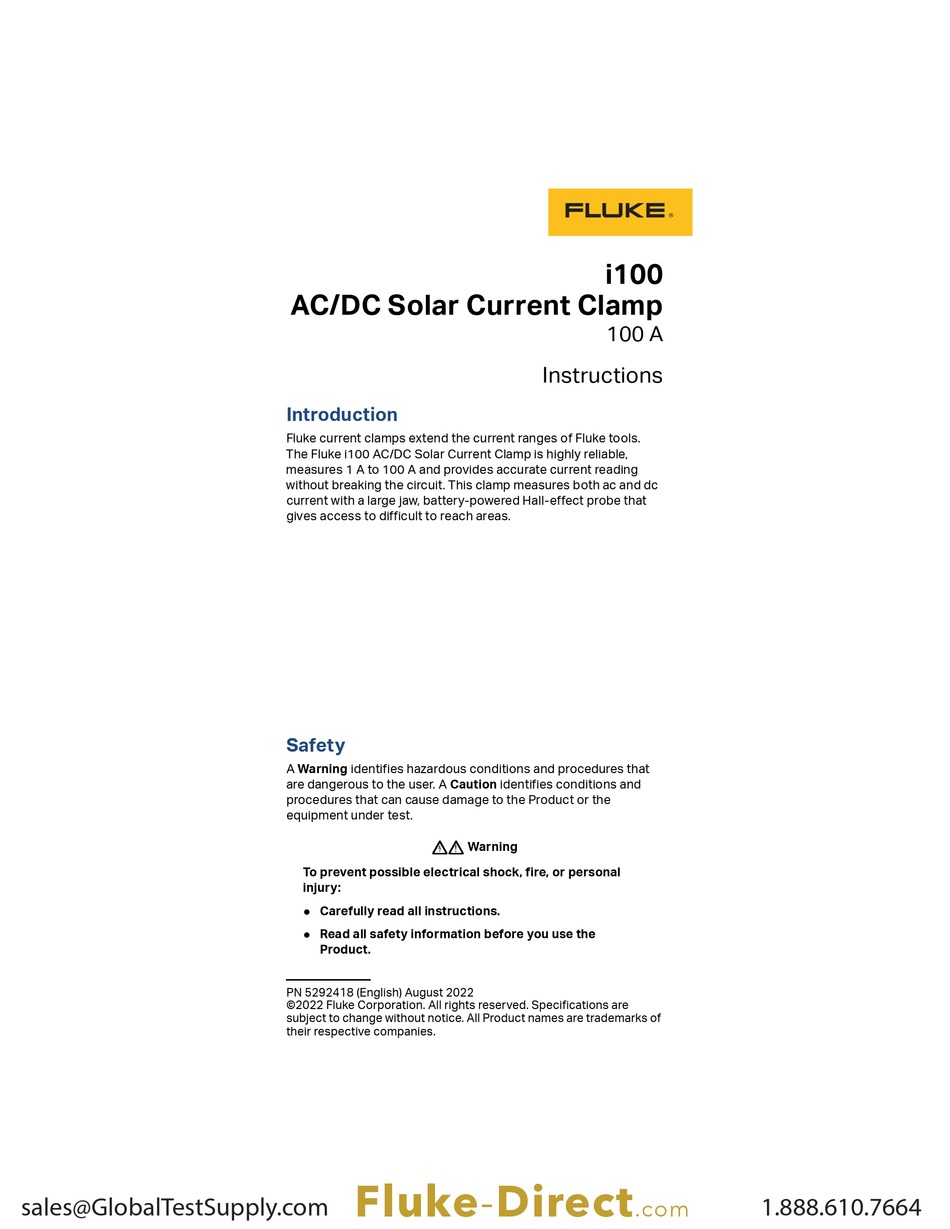

- Page 1 Introduction Fluke current clamps extend the current ranges of Fluke tools. The Fluke i100 AC/DC Solar Current Clamp is highly reliable, measures 1 A to 100 A and provides accurate current reading without breaking the circuit. This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas.
- Page 2 Remove the batteries if the Product is not used for an extended period of time, or if stored in temperatures above 50 °C. If the batteries are not removed, battery leakage may result. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
- Page 3 1. Connect the green plug to the green socket on the Analyzer. 2. Connect the yellow plug to the yellow socket on the Analyzer. 3. Select FUNC./P on the Analyzer. AC/DC 4. Turn on the Clamp The ON indicator turns on. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
- Page 4 ( jaws empty) until 0.0 shows on the Analyzer display. 6. Open the Clamp jaw and place around the insulated conductor. The measurement shows on the Analyzer display. AC/DC SOLAR i100 CURRENT CLAMP OUTPUT: 10mV/A Item Description ON/OFF Button Jaw Lever ...
- Page 5 With a true-rms voltmeter, the minimum ac current is limited to the low end of the specified mV ac range. Usable Current Range .....0.2 A to 100 A DC Accuracy (zero adjusted, conductor centered) ....1.5 % + 0.1 A Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
- Page 6 This equipment is intended for use in business environments and not to be used in homes. USA (FCC).......47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. Fluke-Direct .com sales@GlobalTestSupply.com 1.888.610.7664...
- Page 7 LIMITED WARRANTY This Fluke product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
