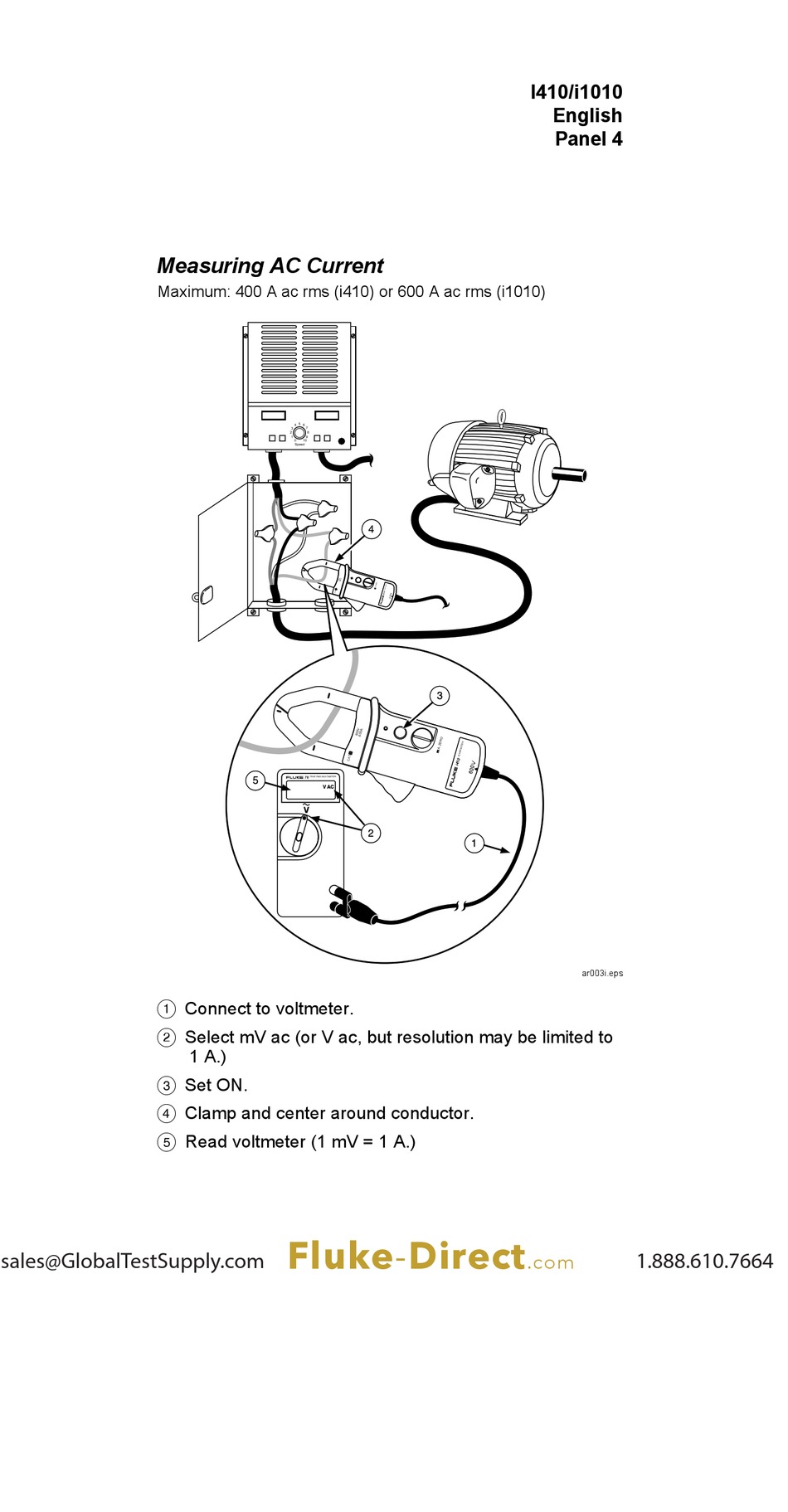

Measuring AC Current

Maximum: 400 A ac rms (i410) or 600 A ac rms (i1010)
4 5 6
3
2
1
0 10
Speed
76
V
A Connect to voltmeter.
B Select mV ac (or V ac, but resolution may be limited to
1 A.)
C Set ON.
D Clamp and center around conductor.
E Read voltmeter (1 mV = 1 A.)
Fluke-Direct
7
8
9
TRUE RMS MULTIMETER
I410/i1010
English
Panel 4
ar003i.eps
