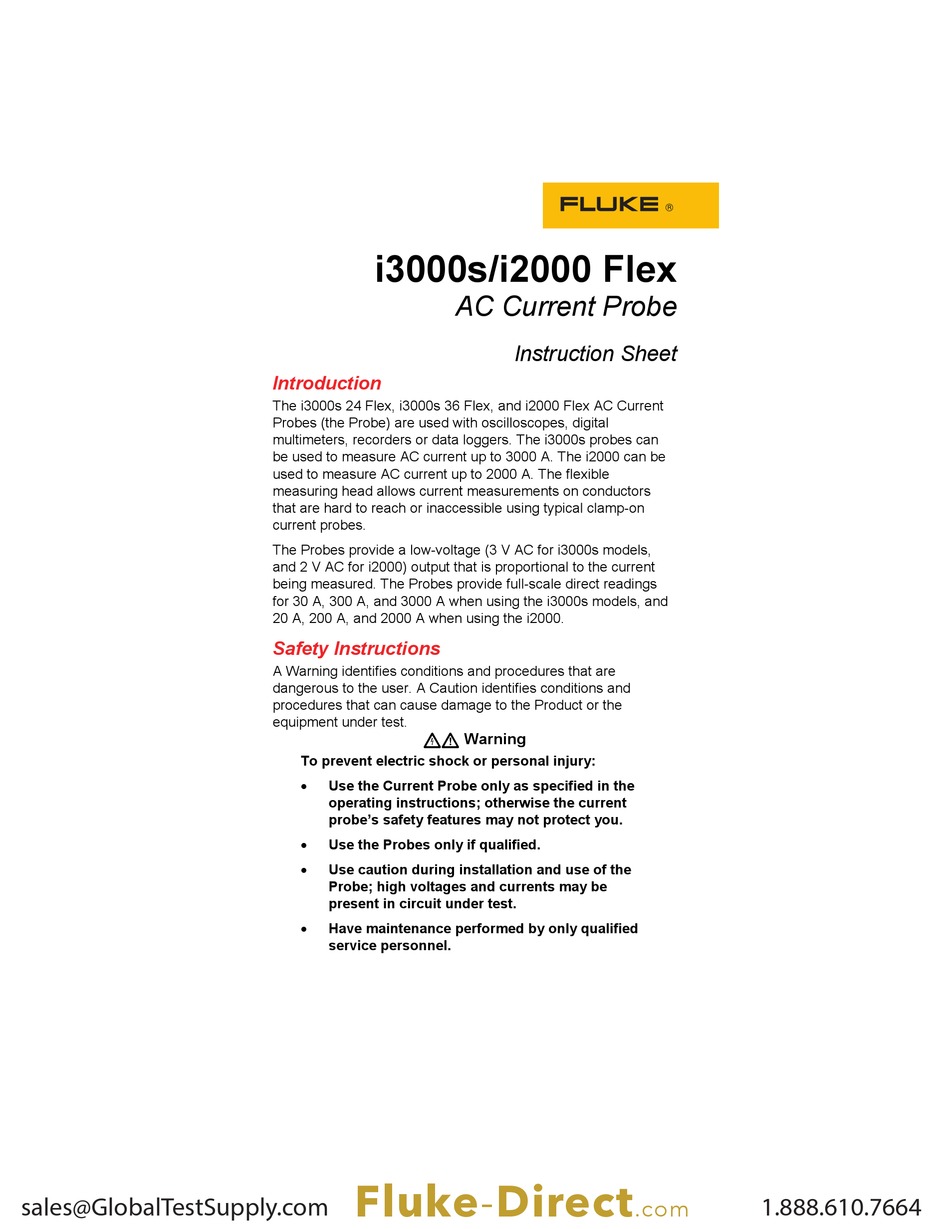

i3000s/i2000 Flex
Introduction
The i3000s 24 Flex, i3000s 36 Flex, and i2000 Flex AC Current
Probes (the Probe) are used with oscilloscopes, digital
multimeters, recorders or data loggers. The i3000s probes can
be used to measure AC current up to 3000 A. The i2000 can be
used to measure AC current up to 2000 A. The flexible
measuring head allows current measurements on conductors
that are hard to reach or inaccessible using typical clamp-on
current probes.
The Probes provide a low-voltage (3 V AC for i3000s models,
and 2 V AC for i2000) output that is proportional to the current
being measured. The Probes provide full-scale direct readings
for 30 A, 300 A, and 3000 A when using the i3000s models, and
20 A, 200 A, and 2000 A when using the i2000.
Safety Instructions
A Warning identifies conditions and procedures that are
dangerous to the user. A Caution identifies conditions and
procedures that can cause damage to the Product or the
equipment under test.
 Warning
To prevent electric shock or personal injury:
• Use the Current Probe only as specified in the
operating instructions; otherwise the current
probe's safety features may not protect you.
• Use the Probes only if qualified.
• Use caution during installation and use of the
Probe; high voltages and currents may be
present in circuit under test.
• Have maintenance performed by only qualified
service personnel.
