Instruction Manual
DJ Mixer
DJM-V10-LF
pioneerdj.com/support/
rekordbox.com
kuvo.com
For FAQs and other support information for this product, visit the websites above.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DJM-V10-LF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PIONEER DJ DJM-V10-LF

Summary of Contents for PIONEER DJ DJM-V10-LF

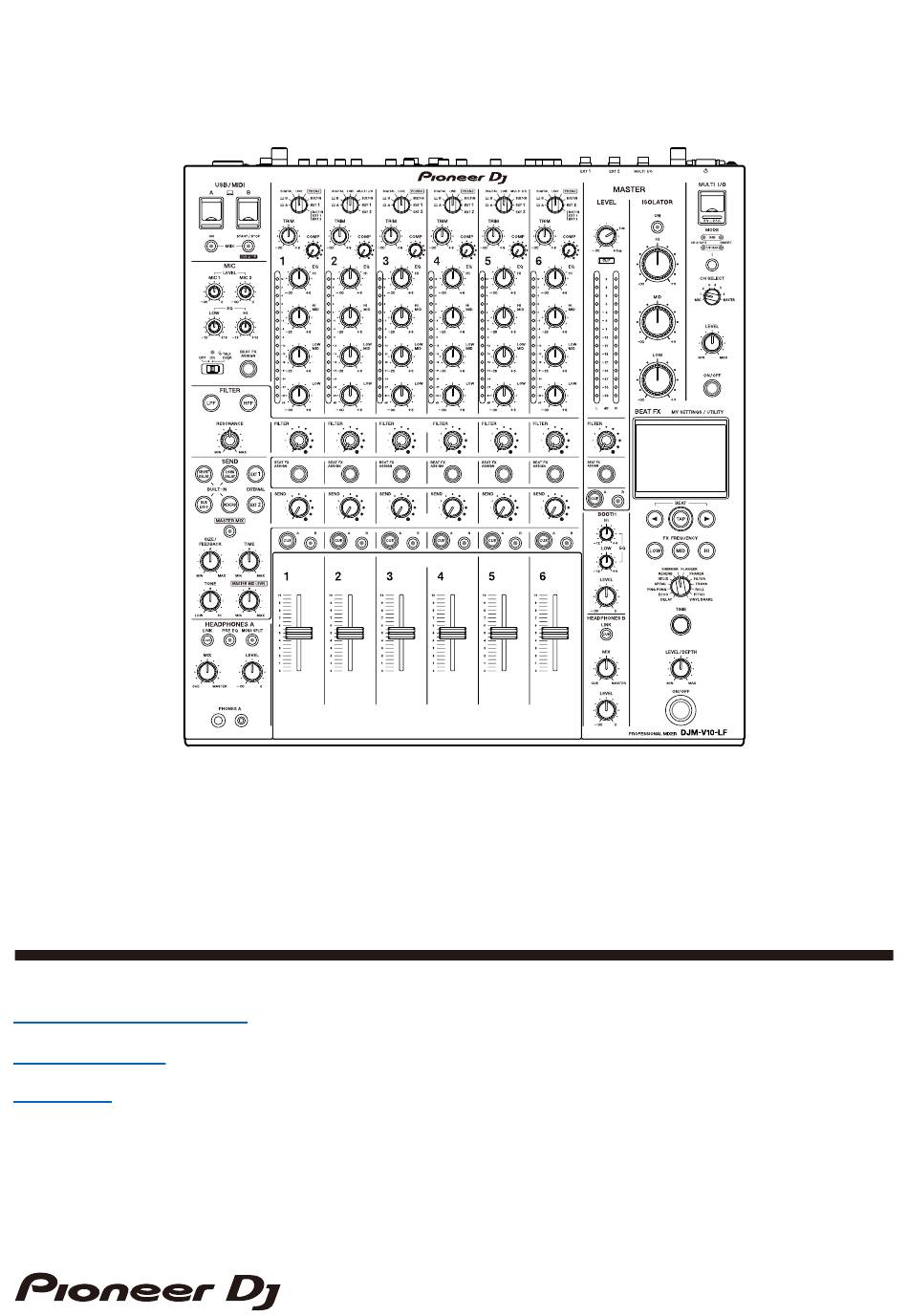

  • Page 1 Instruction Manual DJ Mixer DJM-V10-LF pioneerdj.com/support/ rekordbox.com kuvo.com For FAQs and other support information for this product, visit the websites above.

  • Page 2: Table Of Contents

    Contents Before you start ................... 5 How to read this manual .................5 What’s in the box..................5 User guides .....................6 PRO DJ LINK ..................7 Part names ................... 8 Top panel ....................8 Front panel ....................9 Rear panel....................9 Touch display ..................12 PC/Mac setup ..................13 Audio driver software ................13 Installation .....................14 Setting Utility ..................15...
  • Page 3 Adjusting the master sound..............34 Monitoring sound ................35 Headphones A/B sections ..............35 Monitoring with headphones ..............37 Booth section ..................38 Using a booth monitor ................38 Microphones ..................39 MIC section ...................39 Using a microphone ................40 Filter ....................41 Filter section..................41 Using the Filter ..................42 Send ....................
  • Page 4 Controlling an external MIDI sequencer ..........67 Settings....................68 Utility/My settings screens..............68 Changing the settings ................69 Utility settings ..................70 My Settings ...................73 Saving My Settings to a storage device ..........77 Loading My Settings saved on a storage device........78 Restoring the factory settings..............79 Specifications ..................

  • Page 5: Before You Start

    Before you start How to read this manual • Thank you for choosing this Pioneer DJ product. Be sure to read this manual, the “Quick Start Guide” and the “Precautions for Use” which are also included with this product. These documents include important information that you should understand before using the unit.

  • Page 6: User Guides

    Before you start User guides  rekordbox: rekordbox Introduction, Instruction Manual Refer to the “rekordbox Introduction” to find out how to set up rekordbox, and see the “Instruction Manual” to find out how to use rekordbox. Visit the URL below to find these user guides. rekordbox.com/manual...

  • Page 7: Pro Dj Link

    • To monitor the sound of rekordbox, click [Preferences] > [Audio] and mark the [Use “LINK MONITOR” of PIONEER DJ Mixers] check box in rekordbox. • You can't monitor the sound of tracks in a multi player if the player doesn't support the LINK MONITOR function.

  • Page 8: Part Names

    Part names Top panel USB/MIDI section (page 65) MIC section (page 39) FILTER section (page 41) SEND section (page 43) HEADPHONES (A/B) section (page 35) 6. Channel section (page 26) 7. MASTER section (page 26) MASTER ISOLATOR section (page 33) MULTI I/O section (page 52) 10.

  • Page 9: Front Panel

    Part names Front panel PHONES B terminals (pages 22, 35) Rear panel  button Turns the unit on and off. SIGNAL GND terminals (page 20) Connect a turntable’s ground wire. Reduces noises that occur when a turntable is connected to the unit. MULTI I/O, EXT2, EXT1 RETURN terminals (1/4”/6.35 mm, TS) (pages 23, 24) Connect to output terminals on external FX units.
  • Page 10 Part names • Remove the short-circuit pin plugs from the terminals when connecting devices. When you are not using the terminals, attach the short-circuit pin plugs to cut out external noises. WARNING Keep the short-circuit pin plugs out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.
  • Page 11 Part names 14. MASTER2 terminals (RCA) (page 21) Connect to analog input terminals on a power amplifier, etc. 15. REC OUT terminals (RCA) (page 21) Connect a device for recording. 16. MULTI I/O, EXT2, EXT1 SEND terminals (1/4”/6.35 mm, TS) (pages 23, 24) Connect to input terminals on external FX units.

  • Page 12: Touch Display

    Part names Touch display Main screen (display/touch keys) 1. AUTO/TAP (page 56) QUANTIZE (page 54) (fader curve settings) (page 30) (UTILITY/MY SETTINGS) (page 69) 5. Effect settings display (page 56) 6. X-PAD (page 56)

  • Page 13: Pc/Mac Setup

    PC/Mac setup Audio driver software To input or output your PC/Mac’s audio to/from the unit, install the dedicated audio driver software on your computer. Setting Utility will also be installed with the audio driver software. • For the latest system requirements, compatibility, and supported operating systems, visit the URL below.

  • Page 14: Installation

    PC/Mac setup Installation  Notes on installation • Turn the unit off and disconnect the USB cable connected to the unit and the PC/Mac before installation. • Close all applications running on the PC/Mac before installation. • You will need admin rights to install the audio driver software to your PC/Mac. •...

  • Page 15: Setting Utility

    PC/Mac setup Setting Utility You can check and set connections between the unit and a PC/Mac using the Setting Utility installed on the PC/Mac. Launching Setting Utility 1 Click [Pioneer] > [DJM-V10 Setting Utility] from the applications list on a PC/Mac. Setting Utility launches.
  • Page 16 PC/Mac setup Setting the audio data output from the unit to a PC/Mac 1 Click the [MIXER OUTPUT] tab. 2 Click the pull-down menu under [Mixer Audio Output] and select the audio data output from the unit to the PC/Mac. Read more: [Mixer Audio Output] pull-down menu (page 19) 3 Click the pull-down menu under [USB Output Level] and...
  • Page 17 PC/Mac setup Adjusting the buffer size (for Windows ASIO) • Close any running applications (DJ applications, etc.) which use the unit as the default audio device before adjusting the buffer size. 1 Click the [ASIO] tab. 2 Adjust the buffer size with the slider. •...
  • Page 18 PC/Mac setup Checking the firmware and software versions 1 Click the [About] tab.
  • Page 19 PC/Mac setup [Mixer Audio Output] pull-down menu #: indicates channel number CH1 (USB1/2), CH3 (USB5/6), CH2 (USB3/4), CH5 (USB9/10) CH4 (USB7/8), CH6 (USB11/12) — CH# Control Tone PHONO CH# Control Tone LINE CH# Control Tone LINE CH# Control Tone DIGITAL CH# Control Tone DIGITAL Post CH# Fader Post CH# Fader...

  • Page 20: Connections

    Connections Turn the unit off and disconnect the power cord before connecting other units. Connect the power cord after all the connections are complete. • Use the supplied power cord. • Read the instruction manuals for the devices you are going to connect with the unit. •...

  • Page 21: Connecting To The Output Terminals

    Connections Connecting to the output terminals Analog audio Power amplifier Power amplifier Power amplifier Digital audio (booth monitor) input device input device MIDI sequencer • Use the [MASTER1] terminals for balanced output. Connecting the terminals to unbalanced inputs (RCA, etc.) with an XLR-RCA conversion cable (conversion adapter), etc.

  • Page 22: Connecting To The Terminals On The Top And Front Panels

    Connections Connecting to the terminals on the top and front panels PC/Mac Mobile devices Do not use a USB hub. Use a USB cable for the connection. Do not use a USB hub. USB port USB port cover covers Headphones Headphones •...

  • Page 23: Connecting External Fx Units

    Connections Connecting external FX units Connecting to the EXT1/EXT2 terminals • To use external FX units with SEND, connect as follows. – [EXT1 SEND] terminals (output) → FX unit 1 → [EXT1 RETURN] terminals (input) – [EXT2 SEND] terminals (output) → FX unit 2 → [EXT2 RETURN] terminals (input) •...
  • Page 24 Connections Connecting to the MULTI I/O terminals • To use external FX units or mobile devices with MULTI I/O, connect as follows. – [MULTI I/O SEND] terminals (output) → FX unit 3 → [MULTI I/O RETURN] terminals (input) – Mobile device connection terminal (USB port) (input/output port) → mobile device •...

  • Page 25: Audio Output

    Audio output Follow the procedures below to output and adjust sound. – Outputting sound (page 29) – Adjusting the sound (page 30) – Setting the fader curves (page 30) – Adjusting the left/right sound balance (page 31) To output sound to the [BOOTH] terminals, see Using a booth monitor (page 38).

  • Page 26: Channel Section/Master Section

    Audio output Channel section/Master section  Channel section Input selector switch (pages 44, 50) Selects an input sound source. — [ A,B] : Selects a PC/Mac connected to the [USB] port. — [DIGITAL] : Selects a multi player connected to the [DIGITAL IN CH] terminal. —...
  • Page 27 Audio output — [EXT1] : Selects the effect sound of a device connected to the [EXT1 RETURN] terminals. — [EXT2] : Selects the effect sound of a device connected to the [EXT2 RETURN] terminals. — [BUILT-IN, EXT1, EXT2] : Selects the effect sounds of all [SEND] buttons ([BUILT- IN] and [EXTERNAL] buttons).
  • Page 28 Audio output  MASTER section 12. LEVEL knob Adjusts the volume for the master sound. 13. CLIP indicator Lights up when excessive volume is output from the [MASTER1] or [MASTER2] terminals. 14. Master level indicator Displays the volume level of the master sound output to the [MASTER1], [MASTER2], and [DIGITAL MASTER OUT] terminals.

  • Page 29: Outputting Sound

    Audio output Outputting sound Adjusting the channel input volume 1 Turn the input selector switch to select an input sound source. 2 Turn the [TRIM] knob to adjust the volume for the input sound. The channel level indicator lights up when sound is input to the channel. Adjusting the channel output volume 1 Move the channel fader to adjust the volume for the output sound.

  • Page 30: Adjusting The Sound

    Audio output Adjusting the sound 1 Turn the [EQ (HI, HI MID, LOW MID, LOW)] knobs to adjust the volume of each band. 2 Turn the [COMP] knob to adjust the compression level. Setting the fader curves You can set the channel fader curve. 1 Touch on the main screen.

  • Page 31: Adjusting The Left/Right Sound Balance

    Audio output Adjusting the left/right sound balance You can adjust the left/right balance for the sounds output from the following terminals. – [MASTER1] – [MASTER2] – [BOOTH] – [REC OUT] – [DIGITAL MASTER OUT] – [USB] – [PHONES A] – [PHONES B] •...
  • Page 32 Audio output 4 Touch [OK]. • To cancel the setting, touch [CANCEL]. 5 Touch The [UTILITY] screen closes.

  • Page 33: Master Isolator

    Master Isolator Adjust the master sound. Master Isolator section ON button Turns on and off Master Isolator. The button lights up when it is turned on. HI, MID, LOW knobs Adjusts the volume of each band. Each knob adjusts in the following range. —...

  • Page 34: Adjusting The Master Sound

    Master Isolator Adjusting the master sound 1 Press the [ON] button to turn on MASTER ISOLATOR. 2 Turn the [HI, MID, LOW] knobs to adjust the volume of each band. • Press the [ON] button again to turn off MASTER ISOLATOR.

  • Page 35: Monitoring Sound

    Monitoring sound Headphones A/B sections LINK CUE button Outputs the LINK MONITOR sound. PRE EQ button Sets the sound (pre EQ or post EQ) output to the headphones. Outputs the pre EQ sound when the button is lit, and the post EQ sound when it is turned off.
  • Page 36 Monitoring sound MONO SPLIT button Sets the sound output method (MONO SPLIT or stereo) for the headphones. Outputs the sound of the channel with the [CUE A] button pressed to the left channel of your headphones, and the [MASTER] sound to the right channel when the button is lit. Outputs the stereo sound of the channel with the [CUE A] button pressed when the button is turned off.

  • Page 37: Monitoring With Headphones

    Monitoring sound Monitoring with headphones 1 Connect headphones to the [PHONES A] or [PHONES B] terminals. 2 Press the [CUE] button ([CUE A], [CUE B] or [LINK CUE]) to select the sound you want to monitor. • For monitoring sound via [HEADPHONES B], skip to 5. 3 Press the [PRE EQ] button to set the output sound (pre EQ or post EQ).

  • Page 38: Booth Section

    Monitoring sound Booth section EQ (HI, LOW) knobs Adjusts the volume of each band. Each knob adjusts in the following range. — [HI] : –12 dB to +6 dB — [LOW]: –12 dB to +6 dB LEVEL knob Adjusts the volume for the sound output to a booth monitor. Using a booth monitor 1 Connect a booth monitor to the [BOOTH] terminals.

  • Page 39: Microphones

    Microphones MIC section LEVEL (MIC1, MIC2) knobs Adjusts the volume for the sound output to the [MIC1] and [MIC2] terminals. EQ (HI, LOW) knobs Adjusts the volume output to the [MIC1] and [MIC2] terminals. Each knob adjusts in the following range. —...

  • Page 40: Using A Microphone

    Microphones — [TALK OVER] : Sets the microphone to TALK OVER mode. The sound from channels other than the MIC channels is attenuated when sound over –10 dB is input to a microphone. • You can change the TALK OVER mode setting and attenuation level in [TALK OVER] in [MY SETTINGS] (page 74).

  • Page 41: Filter

    Filter You can adjust the cut-off frequency. The selected filter is applied to all channels, [1] to [6]. Filter section FILTER (LPF, HPF) buttons Select a filter. The selected button blinks. — [LPF]: Low Pass Filter — [HPF]: High Pass Filter RESONANCE knob Adjusts the resonance.

  • Page 42: Using The Filter

    Filter Using the Filter 1 Press a [FILTER (LPF, HPF)] button to select a filter. • If either button is already selected, pressing the other button switches to that filter. 2 Turn the [FILTER] knob to adjust the cut-off frequency. 3 Turn the [RESONANCE] knob to adjust the resonance.

  • Page 43: Send

    Send Send You can route the effect sound (reverberation) of one of the built-in FX or an external FX unit to any channel or the master output. Send section SEND buttons (page 48) MASTER MIX button Turns on and off MASTER MIX. The button lights up when it is turned on, and the effect sounds of all the [SEND] buttons are routed to the master output.

  • Page 44: Routing Effect Sounds To The Channels

    You can route the effect sound of one of the built-in FX or an external FX unit to any channel. The selected effect is input to the selected channel. Input Output External FX units DJM-V10-LF BUILT-IN EXT 1 EXT 2 SEND (RETURN)
  • Page 45 Send 4 Turn the [TIME] knob to adjust the time parameter for the effect. 5 Turn the [TONE] knob to adjust the filter to apply to the effect sound. 6 Turn the [SEND] knob to adjust the SEND level. • Press the blinking [SEND] button to turn off SEND.

  • Page 46: Routing Effect Sounds To The Master Output

    Routing effect sounds to the master output You can route the effect sound of one of the built-in FX or an external FX unit to the master output. Input External Output FX units DJM-V10-LF EXT 1 EXT 2 BUILT-IN SEND TRIM/EQ/FILTER Channel fader...
  • Page 47 Send 5 Turn the [TONE] knob to adjust the filter to apply to the effect sound. 6 Turn the [MASTER MIX LEVEL] knob to adjust the effect sound volume. 7 Turn the [SEND] knob to adjust the SEND level. • Press the blinking [SEND] button to turn off SEND.

  • Page 48: Send Types And Settings

    Send Send types and settings You can adjust the following SEND settings with the relevant knobs. • The selected [SEND] button blinks. • You can select one of the [BUILT-IN] effect, and [ EXT1 ]/[ EXT2 ] at the same time. FX/controls Descriptions BUILT-IN...
  • Page 49 Send The [SIZE/FEEDBACK], [TIME], and [TONE] knobs are not available for this setting.

  • Page 50: Multi I/O

    You can route effects in the following ways. – INSERT : Replaces the original sound with the effect sound from an external device. Input Output External FX unit/ mobile device DJM-V10-LF MULTI I/O TRIM/EQ/FILTER Channel fader MASTER ISOLATOR/Master volume...
  • Page 51 – CH 2/CH 5 : Routes the effect sound from an external device to a channel separate from the one with the original sound. You can then mix the original sound and the effect sound using the two channels. Input Output External FX unit/ mobile device DJM-V10-LF (RETURN MULTI I/O) MULTI I/O TRIM/EQ/FILTER TRIM/EQ/FILTER Channel fader...

  • Page 52: Multi I/O Section

    Multi I/O Multi I/O section Mobile device connection terminal (USB port) Connect a mobile device. USB connection indicator Lights up when a compatible mobile device is connected, and blinks when an incompatible mobile device is connected. MODE selector indicator Indicates an external FX unit and effect input method selected with the [MODE] selector button.

  • Page 53: Using Multi I/O

    Multi I/O LEVEL knob Adjusts the volume for the MULTI I/O effect sound. ON/OFF button Turns on and off MULTI I/O. The button blinks when it is turned on. Using Multi I/O 1 Press the [MODE] selector button to select an external FX unit and effect input method.

  • Page 54: Beat Fx

    Beat FX Beat FX You can add various effects according to the tempo (BPM = Beats Per Minute) of the track being played. If you use the Quantize function in PRO DJ LINK, the unit adds effects by automatically synchronizing it with the beat according to the track’s grid information analyzed by rekordbox. This happens even if you operate the [ON/OFF] button of [BEAT FX] and [X-PAD] roughly.

  • Page 55: Beat Fx Section

    Beat FX Beat FX section BEAT FX ASSIGN button Adds BEAT FX to the channel. The selected button lights up, and blinks when BEAT FX is on. • Press the [BEAT FX ASSIGN] button in the [MIC] section to add BEAT FX to the microphone sound.

  • Page 56: Touch Display

    Beat FX ON/OFF button Turns on and off BEAT FX. The button blinks when it is turned on. Touch display AUTO/TAP Selects a BPM measuring mode. Changes the highlighted (selected) item with each touch. — [AUTO] : Automatically measures the BPM of the input sound (measuring range: 70 to 180).
  • Page 57 Beat FX Selected effect Displays the name of the selected effect. Beat/parameter Highlights the selected beat. • Parameter is displayed for some effects when you press the [BEAT /] buttons. The display blinks if you choose a value out of the parameter’s range. X-PAD Turns an effect on and off with a touch of [X-PAD].

  • Page 58: Using Beat Fx

    Beat FX Using Beat FX Read more: Beat FX types and settings (page 60) 1 Touch [AUTO/TAP] or [QUANTIZE] to select a BPM measuring mode. 2 Turn the BEAT FX selector switch to select an effect. The selected BEAT FX screen appears. 3 Press the [BEAT FX ASSIGN] button to select a channel to add the effect to.

  • Page 59: Setting The Bpm Manually

    Beat FX Setting the BPM manually 1 Tap the [TAP] button more than twice in time with the beat of the track. The BPM is set according to the average time between taps. • The beat fraction is set to [1/1] when you set the BPM with the [TAP] button, and the length of one beat is set as the effect time.

  • Page 60: Beat Fx Types And Settings

    Beat FX Beat FX types and settings You can adjust the following BEAT FX settings with the relevant buttons and knobs, etc. BEAT FX/controls Descriptions Outputs a delay sound once according to the beat. DELAY • BEAT /: Delay time with respect to 1 beat of the BPM (beat fraction): 1/16 to 16 beats •...
  • Page 61 Beat FX BEAT FX/controls Descriptions Adds reverberation to the input sound. SPIRAL • BEAT /: Delay time with respect to 1 beat of the BPM (beat fraction): 1/16 to 16 beats • TIME: Delay time: 10 to 4000 (ms) • LEVEL/DEPTH: Balance between the original sound and the effect sound, and feedback •...
  • Page 62 Beat FX BEAT FX/controls Descriptions Adds a sparkling reverberation to the input sound. SHIMMER • BEAT /: Reverberation level: 1 to 100% • TIME: Reverberation level: 1 to 100% • LEVEL/DEPTH: Balance between the original sound and the effect sound •...
  • Page 63 Beat FX BEAT FX/controls Descriptions • X-PAD: Cycle to finely fluctuate the effect TRANS Cuts the sound cyclically according to the beat. • BEAT /: Cycle of the cut with respect to 1 beat of the BPM (beat fraction): 1/16 to 16 beats •...
  • Page 64 Beat FX BEAT FX/controls Descriptions Slows down the playback speed of the input sound gradually VINYL BRAKE according to the beat and then stops the playback. • BEAT /: Effect time with respect to 1 beat of the BPM (beat fraction): 1/16 to 16 beats •...

  • Page 65: Usb/Midi

    USB/MIDI If you connect a PC/Mac or mobile device with MIDI software installed, to the unit via a USB cable, you can control the MIDI software via the unit (page 66). You can also synchronize an external MIDI sequencer with the tempo (BPM) of the track on the channel that is selected for adding BEAT FX with the [AUTO] or [QUANTIZE] setting (page 67).

  • Page 66: Controlling Midi Software

    USB/MIDI Controlling MIDI software • Install MIDI software and configure the audio and MIDI settings on a PC/Mac or mobile device beforehand. 1 Connect a PC/Mac or mobile device to the unit. A, B ] (USB) port, or connect a mobile device to the •...

  • Page 67: Controlling An External Midi Sequencer

    USB/MIDI Controlling an external MIDI sequencer You can synchronize an external MIDI sequencer with the tempo (BPM) of the track on the channel that is selected for adding BEAT FX with the [AUTO] or [QUANTIZE] setting. • The tempo (BPM) of the track is sent as a MIDI timing clock (output range: 40 to 250 BPM). •...

  • Page 68: Settings

    Settings You can change the unit’s settings in the [UTILITY] settings. If you save [MY SETTINGS] to a storage device (USB drive, etc.), you can load them to the unit immediately when you arrive in the booth or take over from another DJ, etc. Utility/My settings screens Displayed when the [UTILITY] settings are locked (cannot be changed).

  • Page 69: Changing The Settings

    Settings Changing the settings 1 Touch, or touch and hold on the main screen. Touch to display the [MY SETTINGS] screen. Touch and hold to display the [UTILITY] screen. 2 Touch a setting item. • You can scroll through items with the [TIME] knob in the [BEAT FX] section. Read more: Utility settings (page 70) Read more: My Settings (page 73) 3 Touch a setting value.

  • Page 70: Utility Settings

    Settings Utility settings *: Factory setting Setting items Descriptions Sets the output balance. BALANCE • Setting values: L128 to 0* to R127 MASTER OUT Reduces distortion to the sound output from the [MASTER1] and [MASTER2] terminals. PEAK LIMITER • Setting values: OFF, ON* Sets the attenuation level for the sound output from the [MASTER1] and [MASTER2] terminals.
  • Page 71 Settings Setting items Descriptions Reduces distortion to the sound output from the [DIGITAL MASTER OUT] terminal. PEAK LIMITER • Setting values: OFF, ON* Sets the output method (mono/stereo) for the sound output from the [DIGITAL MASTER OUT] terminal. MONO/STEREO • Setting values: MONO, STEREO* BOOTH OUT Sets the attenuation level for the sound output from the [BOOTH] terminals.
  • Page 72 Settings Setting items Descriptions Determines whether or not to automatically launch Setting Utility when a PC/Mac is connected to the unit with a USB PC UTILITY cable. • Setting values: OFF*, ON Sets the auto standby function (page 72). AUTO STANDBY •...

  • Page 73: My Settings

    Settings My Settings * : Factory setting Setting items Descriptions Load the [MY SETTINGS] saved on a storage device MY SETTINGS LOAD (page 78). Saves the current [MY SETTINGS] to a storage device MY SETTINGS SAVE (page 77). Restores the beat and [FX FREQUENCY (LOW, MID, HI)] LOAD STORED BEAT FX settings for BEAT FX to the default settings of [MY SETTING...
  • Page 74 Settings Setting items Descriptions MIC LOW CUT Sets the low-frequency cut function for the microphone sound. MIC LOW CUT • Setting values: OFF, ON (for MC)* TALK OVER Sets TALK OVER mode. • Setting values: ADVANCED*, NORMAL • The [ADVANCED] setting outputs sound by attenuating only the mid-frequency range of the sound from channels MODE other than the [MIC] channels according to the setting of...
  • Page 75 Settings Setting items Descriptions BRIGHTNESS Sets the brightness of the touch display. DISPLAY • Setting values: 1 to 5*, WHITE Sets the brightness of LED. INDICATOR • Setting values: 1 to 3* DELAY , ECHO , PING PONG , SPIRAL , TRANS , ROLL BEAT...
  • Page 76 Settings Setting items Descriptions PITCH • Setting values: –50%*, –37%, –25%, 0%, 26%, 50%, BEAT 100% FX FREQUENCY HI , • Setting values: OFF, ON* MID, LOW VINYL BRAKE BEAT • Setting values: 1/16, 1/8, 1/4, 1/2, 3/4, 1, 2, 4*, 8, 16 FX FREQUENCY HI , •...

  • Page 77: Saving My Settings To A Storage Device

    • You can also save the settings to rekordbox or a storage device connected to a multi player in the PRO DJ LINK network (the settings can't be saved if rekordbox or the multi player doesn't support MY SETTINGS of the DJM-V10-LF). 1 Connect a storage device.

  • Page 78: Loading My Settings Saved On A Storage Device

    • You can also load the settings from rekordbox or a storage device connected to a multi player in the PRO DJ LINK network (the settings cannot be loaded if rekordbox or the multi player doesn't support MY SETTINGS of the DJM-V10-LF). 1 Connect a storage device.

  • Page 79: Restoring The Factory Settings

    Settings Restoring the factory settings 1 While pressing the [MIDI START/STOP (WAKE UP)] button, press the [] button. The [FACTORY RESET] screen appears. 2 Touch [YES]. • You can scroll through items with the [TIME] knob in the [BEAT FX] section. 3 Touch [OK].

  • Page 80: Specifications

    Specifications General Main unit weight ................... 12.1 kg (26.7 lbs) Max. external dimensions ..437.6 mm (width) x 467.0 mm (depth) x 107.9 mm (height) 17.2 in. (width) x 18.4 in. (depth) x 4.2 in. (height) Tolerable operating temperature ........+5 °C to +35 °C (+41 °F to +95 °F) Tolerable operating humidity ...........5 % to 85 % (no condensation) Audio Section Sampling rate........................96 kHz...
  • Page 81 Specifications SEND ................... –12 dBu/10 kΩ/700 Ω PHONES ................. +8 dBu/32 Ω/1 Ω or lower Rated output level/Load impedance MASTER1 ....................+25 dBu/10 kΩ MASTER2 ....................+21 dBu/10 kΩ BOOTH ....................+25 dBu/10 kΩ Digital output impedance AES/EBU........................ 110 Ω Crosstalk LINE ........................82 dB Channel equalizer characteristic HI ....................–...
  • Page 82 Specifications BOOTH output terminal (TRS) 1/4” TRS jack ......................1 set REC OUT output terminal RCA pin jacks......................1 set SEND output terminal (TS) 1/4” TS jack ......................3 sets DIGITAL MASTER OUT AES/EBU XLR connector ......................1 set MIDI OUT terminal 5P DIN........................

  • Page 83: Block Diagram

    Specifications Block diagram LINE PHONO LINE LINE CH 1 PHONO CH 2 MASTER MASTER1 LINE CH 3 PHONO MASTER2 CH 4 BOOTH BOOTH LINE CH 5 CH 6 LINE EXT1 : SEND EXT1 SEND PHONO EXT2 : SEND EXT2 SEND EXT1 RETURN EXT1 RETURN MULTI I/O : SEND...

  • Page 84: Additional Information

    Additional information Troubleshooting If you think something is wrong with the unit, check the information below and refer to the [FAQ] for the DJM-V10-LF at the URL below. pioneerdj.com/support/ • Inspect devices connected with the unit. • The unit may restore proper operation after you turn it off and on.
  • Page 85 Additional information • Set [ATT.] to a setting between [–3dB] and [–12dB] in [MASTER OUT] in the [UTILITY] settings. For the channel input sound: • Adjust the [TRIM] knob so the channel level indicator lights up with the peak level at around [0] dB.
  • Page 86 Additional information  Sound from an external FX unit is distorted. • Make sure the volume for the external FX unit is set properly.  The tempo (BPM) of a track cannot be measured. The measured BPM is wrong. • Adjust the [TRIM] knob so the channel level indicator lights up with the peak level at around [0] dB.

  • Page 87: Lcd Display

    Additional information  Sound is distorted when a turntable is connected to the [PHONO] terminals on the unit. The status of the channel level indicator does not change when you turn the [TRIM] knob. • Check if the connected turntable has a built-in phono equalizer (if it does, connect the turntable to the [LINE] terminals).

  • Page 88: Trademarks And Registered Trademarks

    Additional information Trademarks and registered trademarks • rekordbox™ and KUVO are trademarks or registered trademarks of AlphaTheta Corporation. • PRO DJ LINK™ is a trademark of AlphaTheta Corporation. • Mac and macOS are trademarks of Apple Inc., registered in the U.S. and other countries. •...

  • Page 89: Software License Notice

    Additional information Software license notice The licenses for the open source software used on this player are shown below. For accuracy purposes, here we have included the original texts (in English). Copyright © 2010 Texas Instruments Incorporated - http://www.ti.com/ Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

  • Page 90: Cautions On Copyrights

    Additional information Cautions on copyrights Recordings you have made are for your personal enjoyment and according to copyright laws may not be used without the consent of the copyright holder. • Music recorded from CDs, etc., is protected by the copyright laws of individual countries and by international treaties.
