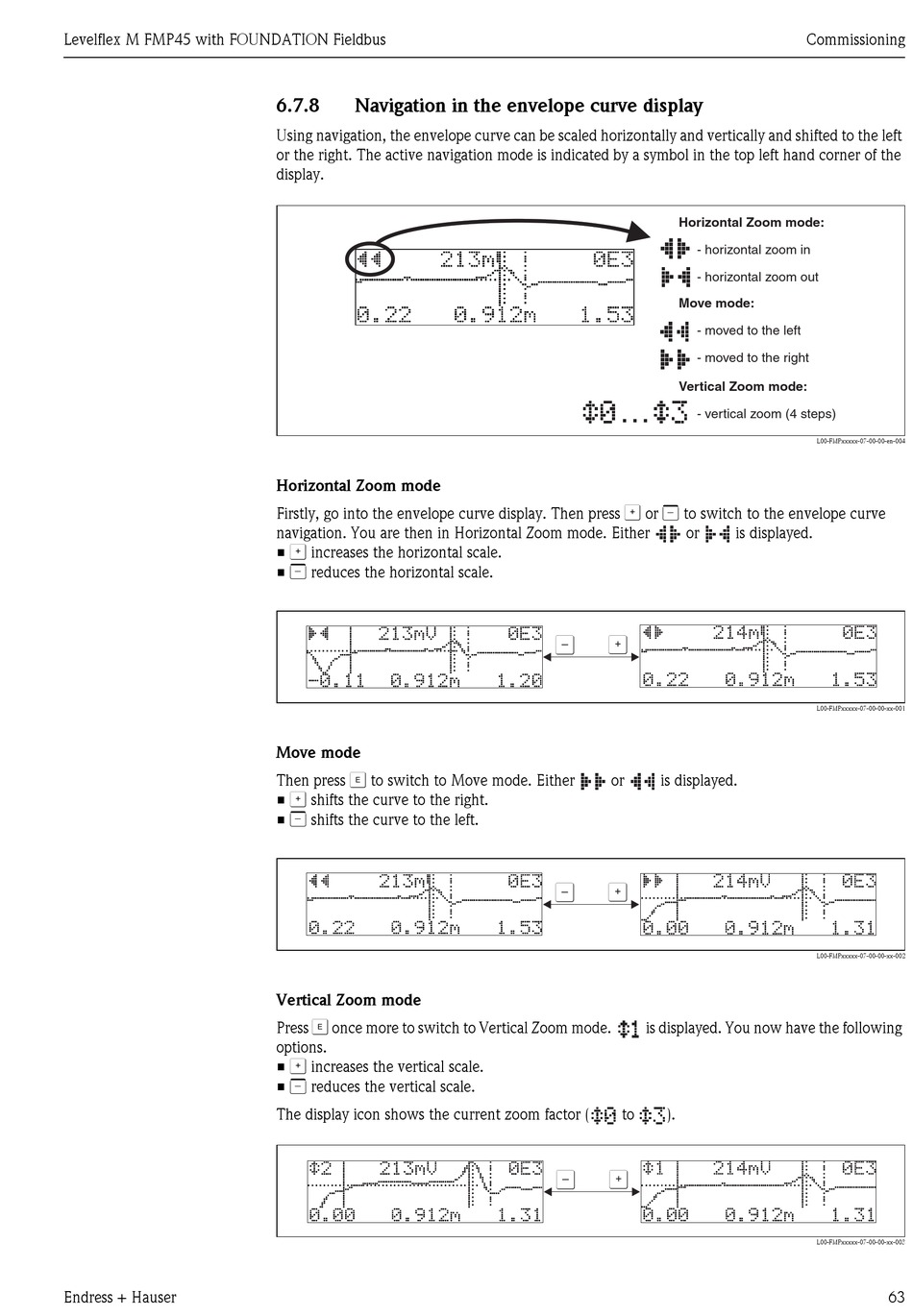

6.7.8 Navigation in the envelope curve display
Using navigation, the envelope curve can be scaled horizontally and vertically and shifted to the left
or the right. The active navigation mode is indicated by a symbol in the top left hand corner of the
display.
Horizontal Zoom mode
Firstly, go into the envelope curve display. Then press
navigation. You are then in Horizontal Zoom mode. Either
O
• increases the horizontal scale.
S
• reduces the horizontal scale.
Move mode
F
Then press to switch to Move mode. Either
O
• shifts the curve to the right.
S
• shifts the curve to the left.
Vertical Zoom mode
F
Press once more to switch to Vertical Zoom mode.
options.
O
• increases the vertical scale.
S
• reduces the vertical scale.
The display icon shows the current zoom factor (
Horizontal Zoom mode:
- h orizontal zoom in
- horizontal zoom out
Move mode:
- m oved to the left
- moved to the right
Vertical Zoom mode:
...
- vertical zoom (4 steps)
O S
or to switch to the envelope curve
or
S O
or is displayed.
S
O
is displayed. You now have the following
to ).
S O
