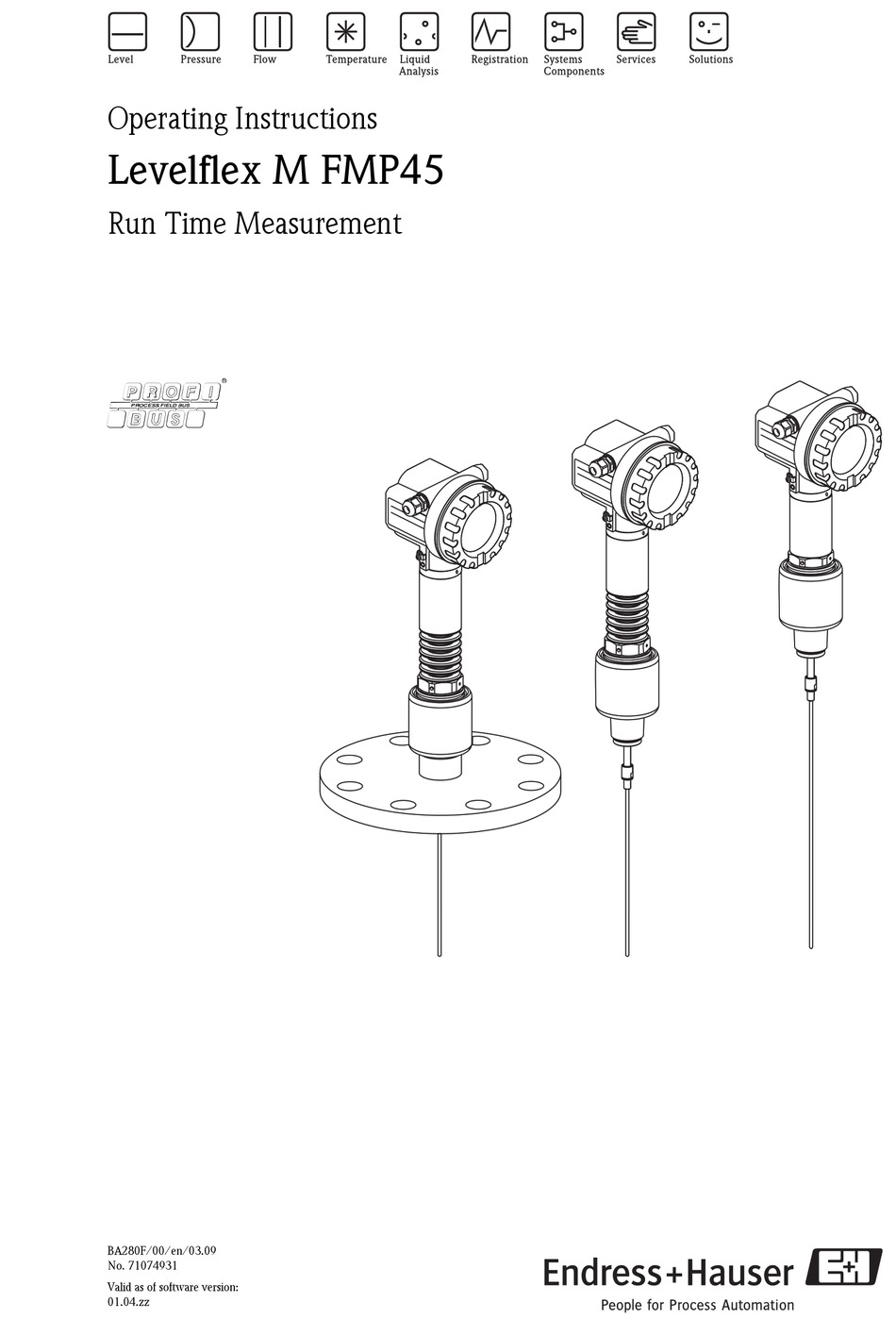

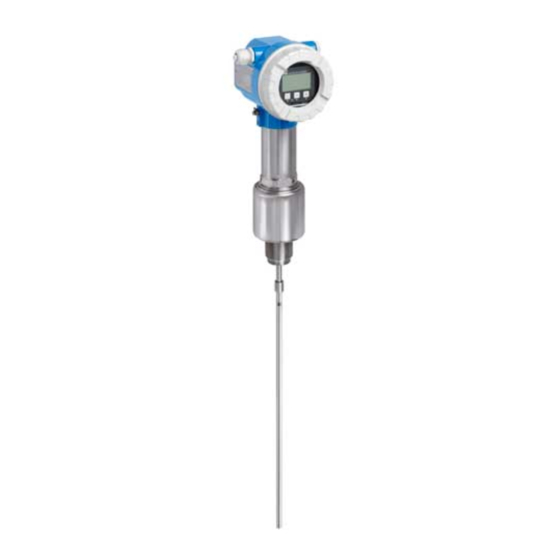

Operating Instructions
Levelflex M FMP45
Run Time Measurement
8
BA280F/00/en/03.09
No. 71074931
Valid as of software version:
01.04.zz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFIBUS Levelflex M FMP45 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser PROFIBUS Levelflex M FMP45

Summary of Contents for Endress+Hauser PROFIBUS Levelflex M FMP45

  • Page 1 Operating Instructions Levelflex M FMP45 Run Time Measurement BA280F/00/en/03.09 No. 71074931 Valid as of software version: 01.04.zz...
  • Page 2 Commissioning via Endress+Hauser operating program In the "Commissioning" section, you learn how to switch on the device and check the functioning. Additional information on the operation via the Endress+Hauser operating program (FieldCare) can be found in Operating Instructions BA027S/04. Æ...
  • Page 3 Levelflex M FMP45 with PROFIBUS PA Brief overview Brief operating instructions Levelflex M - Brief operating instructions KA189F/00/a2/03.07 52012501 Contrast: measured value dist./ meas value Group selection basic setup tank medium process empty full dist./ check range of start properties property cond.
  • Page 4 Brief overview Levelflex M FMP45 with PROFIBUS PA Endress + Hauser...

  • Page 5: Table Of Contents

    Installation ......15 Contact addresses of Endress+Hauser ... 90 Post-installation check .

  • Page 6: Safety Instructions

    Safety instructions Levelflex M FMP45 with PROFIBUS PA Safety instructions Designated use The Levelflex M FMP45 is a compact level transmitter for the continuous measurement of solids and liquids, measuring prinziple: Guided Level Radar / TDR: Time Domain Reflectometry. Installation, commissioning and operation The Levelflex M has been designed to operate safely in accordance with current technical, safety and EU standards.

  • Page 7: Notes On Safety Conventions And Icons

    Levelflex M FMP45 with PROFIBUS PA Safety instructions Notes on safety conventions and icons In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin. Safety conventions Warning! A warning highlights actions or procedures which, if not performed correctly, will lead to personal...

  • Page 8: Identification

    2.1.1 Nameplate The following technical data are given on the instrument nameplate: Order No Designation according to Directive 94/9/EC (see Order Information) and designation of protection ENDRESS+HAUSER Made in Germany Serial number LEVELFLEX-M D-79689 Maulburg Order Code: Ser.-No.: IP68 / NEMA 6P...
  • Page 9 Levelflex M FMP45 with PROFIBUS PA Identification Process temperature: Special version, to be specified Probe: A ..mm, rope 4mm, 316 C ..inch, rope 1/6", 316 K ..mm, rod 16 mm, 316L ..mm, coax, 316L M ..inch, rod 16 mm, 316L N ..
  • Page 10 Identification Levelflex M FMP45 with PROFIBUS PA Type of probe: H *Remote, cable 3m, side, center d=45 mm, centering disk d=45 mm, 316L, pipe diamter DN50/2" + DN65/2-1/2" *Remote, cable 3m, side, center d=75 mm, centering disc d=75 mm, 316L, pipe diamter DN80/3"...

  • Page 11: Scope Of Delivery

    The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 12: Installation

    Installation Levelflex M FMP45 with PROFIBUS PA Installation Quick installation guide Mounting with threaded boss F12 or T12 housing Turn housing The housing can be turned 350° in order to simplify access to the display and the terminal compartment ½ "...

  • Page 13: Installation Conditions

    Levelflex M FMP45 with PROFIBUS PA Installation Installation conditions 3.3.1 Dimensions Housing dimensions Dimensions for the process connection and the probe type → ä 14. max. 110 ENDRESS+HAUSER F12 housing (Aluminium) L00-F12xxxx-06-00-00-en-001 max. 100 ENDRESS+HAUSER T12 housing (Aluminium) L00-T12xxxx-06-00-00-en-001 max. 94...
  • Page 14 Installation Levelflex M FMP45 with PROFIBUS PA Levelflex M FMP45 - process connection, type of probe Housing dimensions → ä 13. F12 / T12 / F23 housing Variant “3” / “4” remote electronic top entry 4 x Ø 8,5 Variant “4”: remote electronic side entry Ø...

  • Page 15: Installation

    Levelflex M FMP45 with PROFIBUS PA Installation Installation 3.4.1 Mounting kit In addition to the tool needed for flange mounting, you will require the following tool: • For the mounting of threaded connection: 60 mm Open-end spanner for 1½", 50 mm Open-end spanner for ¾".
  • Page 16 Installation Levelflex M FMP45 with PROFIBUS PA 3.4.3 Mounting probes in an empty silo " Caution! If there is a risk of electrostatic discharge from the product, then both processconnection and rope must be earthed before the probe is lowered into the silo. Levelflex can be screwed into a threaded socket or flange.
  • Page 17 Levelflex M FMP45 with PROFIBUS PA Installation 3.4.4 Mounting rope probes in a partially full silo It is not always possible to empty a silo which is already in operation. Because the probe can be turned in the threaded boss, it can also be mounted when the silo is only partially filled. In order to avoid problems when Levelflex is mounted into a partially full silo, the following measures should be taken: •...
  • Page 18 Installation Levelflex M FMP45 with PROFIBUS PA 3.4.5 General instructions Normally use rod probes. Rope probes are used in liquids for measuring ranges > 4m and with restricted ceiling clearance which does not allow the installation of rigid probes. Coax probes are not influenced by the installation conditions. They may also be operated •...
  • Page 19 Levelflex M FMP45 with PROFIBUS PA Installation Other installations • Select the mounting location such that the distance to internals (5) (e.g. limit switch, struts) > is 300 mm over the entire length of the probe, also during operation. • Probe must within the measuring span not touch any internals during operation.
  • Page 20 Installation Levelflex M FMP45 with PROFIBUS PA Supporting probes against warping For WHG or Ex approval: For probe lengths ≥ 3 m a support is required (see figure). Rod probes Probe rod Sleeve bored tight to ensure electrical contact between the rod and sleeve! Short metal pipe e.g.
  • Page 21 Levelflex M FMP45 with PROFIBUS PA Installation Installing with heat insulation • If process temperatures are high (≥ 200 °C), FMP45 must be included in normal tank insulation to prevent the electronics heating up as a result of heat radiation or convection. •...
  • Page 22 In vacuum applications and in applications where extremely condensate fermation may occur, there is the danger that the vessel is completely flooded. For media groups with high DC values, this may result in a measuring value lower than the actual level. Please contact your local Endress+Hauser representative for remedial actions.
  • Page 23 Levelflex M FMP45 with PROFIBUS PA Installation 3.4.7 Notes on special installation situations Welding the probe into the vessel " Caution! Before welding the probe into the vessel, it must be grounded by a low-resistive connection. If this is not possible, the electronics as well as the HF module must be disconnected. Otherwise the electronics may be damaged.
  • Page 24 Installation for difficult to access process connections Installation with remote electronic • Follow installation instructions on → ä 18 • Mount housing on a wall or pipe as shown in the diagram. wall ENDRESS+HAUSER Levelflex M 4 x Ø 8,5 ENDRESS+HAUSER Levelflex M pipe Note min.

  • Page 25: Post-Installation Check

    Levelflex M FMP45 with PROFIBUS PA Installation 3.4.9 Turn housing After mounting, the housing can be turned 350° in order to simplify access to the display and the terminal compartment. Proceed as follows to turn the housing to the required position: •...

  • Page 26: Wiring

    " Before connection please note the following: PROFIBUS devices are marked on the nameplate (1). The voltage is determined by the PROFIBUS standard and the Caution! ENDRESS+HAUSER Made in Germany desired safety concept. (see chapter 4.3). LEVELFLEX-M D-79689 Maulburg Order Code: Ser.-No.:...
  • Page 27 Levelflex M FMP45 with PROFIBUS PA Wiring Wiring in T12 housing " Before connection please note the following: ENDRESS+HAUSER LEVELFLEX M PROFIBUS devices are marked on the nameplate (1). The IP65 voltage is determined by the PROFIBUS standard and the...
  • Page 28 " ● PROFIBUS devices are marked on the nameplate (1). The voltage is determined by the PROFIBUS standard and the Caution! desired safety concept. (see chapter 4.3). ENDRESS+HAUSER Made in Germany LEVELFLEX-M D-79689 Maulburg Order Code: ● Connect potential matching line to transmitter earth terminal Ser.-No.:...

  • Page 29: Connecting The Measuring Unit

    Levelflex M FMP45 with PROFIBUS PA Wiring Connecting the measuring unit Ground connection It is necessary to make a good ground connection to the ground terminal on the outside of the housing, in order to achieve EMC security. Cable gland Type Clamping area Standard, Ex ia, IS...

  • Page 30: Recommended Connection

    Wiring Levelflex M FMP45 with PROFIBUS PA Recommended connection For maximum EMC protection please observe the following points: • The external ground terminal on the transmitter must be connected to ground. • The continuity of the cable screening between tapping points must be ensured. •...

  • Page 31: Operation

    Levelflex M FMP45 with PROFIBUS PA Operation Operation Quick operation guide ENDRESS + HAUSER – >3 s Return to basic setup tank shape medium property Group Selection Standard safety settings aluminium tank lenght adjustment plastic tank bypass / pipe linearisation coax probe concrete wall extended calibr.
  • Page 32 Operation Levelflex M FMP45 with PROFIBUS PA 5.1.1 General structure of the operating menu The operating menu is made up of two levels: • Function groups (00, 01, 03, …, 0C, 0D): The individual operating options of the instrument are split up roughly into different function groups.

  • Page 33: Display And Operating Elements

    Levelflex M FMP45 with PROFIBUS PA Operation Display and operating elements Four lines with 20 characters each. Display contrast adjustable through key combination. (liquid crystal display) Orde Ser.- Orde Ser.- r Cod r Cod No.: No.: sber sber surin surin eich g rang eich...
  • Page 34 Operation Levelflex M FMP45 with PROFIBUS PA 5.2.2 Display symbols The following table describes the symbols that appear on the liquid crystal display: Sybmol Meaning ALARM_SYMBOL This alarm symbol appears when the instrument is in an alarm state. If the symbol flashes, this indicates a warning.

  • Page 35: Local Operation

    Levelflex M FMP45 with PROFIBUS PA Operation Local operation 5.3.1 Locking of the configuration mode The Levelflex can be protected in two ways against unauthorised changing of instrument data, numerical values or factory settings: "unlock parameter" (0A4): A value <> 2457 (e.g. 2450) must be entered in "unlock parameter" (0A4) in the "diagnostics"...
  • Page 36 There is no need to change these parameters under normal circumstances and consequently, they are protected by a special code known only to the Endress+Hauser service organization. Please contact Endress+Hauser if you have any questions.
  • Page 37 Levelflex M FMP45 with PROFIBUS PA Operation 5.3.3 Factory settings (Reset) " Caution! A reset sets the instrument back to the factory settings. This can lead to an impairment of the measurement. Generally, you should perform a basic setup again following a reset. A reset is only necessary: •...

  • Page 38: Display And Acknowledging Error Messages

    Operation Levelflex M FMP45 with PROFIBUS PA Display and acknowledging error messages Type of error Errors that occur during commissioning or measuring are displayed immediately on the local display. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.
  • Page 39 5.4.1 Endress+Hauser operating program FieldCare is an Endress+Hauser Plant Asset Management Tool based on FDT technology. You can use Field-Care to configure all your Endress+Hauser devices, as well as devices from other manufacturers that support the FDT standard. It is compatible with the following operating systems: Win2000, WinXP and Windows Vista.
  • Page 40 Operation Levelflex M FMP45 with PROFIBUS PA Signal analysis via envelope curve L00-FMP4xxxx-20-00-00-en-007 Tank linearization L00-fmp-Ixxx-20-00-00-en-041 Endress + Hauser...

  • Page 41: Profibus Pa Communication

    Levelflex M FMP45 with PROFIBUS PA Operation PROFIBUS PA communication 5.5.1 Synopsis • FieldCare SPS / PLC / API - Profiboard/Proficard PROFIBUS DP ENDRESS + HAUSER PROFIBUS PA ENDRESS + HAUSER VU331 – FHX40 Prosonic M Micropilot M Levelflex M VU331 •...
  • Page 42 Operation Levelflex M FMP45 with PROFIBUS PA 5.5.2 Device address Selecting the device address • Every PROFIBUS-PA device must be given an address. If the address is not set correctly, the device will not be recognised by the process control system. •...
  • Page 43 Levelflex M FMP45 with PROFIBUS PA Operation 5.5.3 Device database and type files (GSD) A device database file (GSD) contains a description of the properties of the PROFIBUS-PA device, e.g. the supported transmission rates and the type and format of the digital information output to the PLC.
  • Page 44 Operation Levelflex M FMP45 with PROFIBUS PA 5.5.4 Cyclic data exchange Block model of the Levelflex M L00-FMR230xx-02-00-00-en-001 The block model shows, which data are exchanged continously (i.e. by cyclic data transfer) between the Levelflex M and the PLC. The numbers refer to the function groups and functions: •...
  • Page 45 Levelflex M FMP45 with PROFIBUS PA Operation Configuration of the cyclic data telegram Use the configuration software of your PLC in order to compose the data telegram from these modules in one of the following ways: Main value In order to transmit the main measured value, selct the module "Main Process Value". Main value and second cyclic value In order to transmit the main value and the second cyclic value (temperature or measured distance), select the modules in the following order: "Main Process Value", "2nd Cyclic...
  • Page 46 Operation Levelflex M FMP45 with PROFIBUS PA IEEE-745 Floating Point Number The measured value is transmitted as a IEEE 754 floating point number, whereby (E-127) Measured value = (-1) x (1+F) Byte 1 Byte 2 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2...
  • Page 47 Levelflex M FMP45 with PROFIBUS PA Operation Status codes The status codes comprise one byte and have got the following meaning: Status- Device status Significance Primary value Secondary value Code 0C Hex device error 0F Hex device error 1F Hex out-of-service (target mode) 40 Hex UNCERTAIN...
  • Page 48 Operation Levelflex M FMP45 with PROFIBUS PA 5.5.5 Acyclic data exchange Acyclic data exchange allows device parameters to be changed independently of the communication between the device and a PLC. Acyclic data exchange is used • to transmit device parameters during commissioning and maintenance; •...
  • Page 49 Levelflex M FMP45 with PROFIBUS PA Operation 5.5.6 Slot/index tables Device Management Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class Directory object Array of constant header UNSIGNED16 Composite list Array of constant directory entries UNSIGNED16 Analog-Input-Block Parameter...
  • Page 50 Operation Levelflex M FMP45 with PROFIBUS PA Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class LO LO Limit FLOAT static 44-45 HI HI Alarm DS-39* dynamic HI Alarm DS-39* dynamic LO Alarm DS-39* dynamic LO LO Alarm DS-39* dynamic...
  • Page 51 Levelflex M FMP45 with PROFIBUS PA Operation Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class E+H-Parameters error code UNSIGNED16 dynamic last error code UNSIGNED16 dynamic Up Down features OSTRING constant Up Down control UNSIGNED8 dynamic Up Down param OSTRING...
  • Page 52 Operation Levelflex M FMP45 with PROFIBUS PA Endress+Hauser specific level transducer block Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class Standard parameter Block data DS-32* constant Static revision UNSIGNED16 non-vol. Device tag OSTRING static...
  • Page 53 Levelflex M FMP45 with PROFIBUS PA Operation Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class Input level V3H4 FLOAT static Input volume V3H5 FLOAT static Max. volume V3H6 FLOAT static Cylinder vessel V3H7 FLOAT static 176- Selection...
  • Page 54 Operation Levelflex M FMP45 with PROFIBUS PA Parameter E+H Matrix Slot Index Size Type Read Write Storage (CW II) [bytes] Class Measured level V9H6 FLOAT dynamic Application parameter V9H8 UNSIGNED8 dynamic Tag no. VAH0 STRING const Profile revision VAH1 STRING static Version string VAH2...
  • Page 55 Levelflex M FMP45 with PROFIBUS PA Operation In a first step, the main value is mapped to the interval [0;1]. PV_SCALE_MIN and PV_SCALE_MAX determine the limits of this mapping. In a second step, the interval [0,1] is mapped to the interval [OUT_SCALE_MIN, OUT_SCALE_MAX].

  • Page 56: Commissioning

    Commissioning Levelflex M FMP45 with PROFIBUS PA Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist “Post-installation check”. • Checklist “Post-connection check”. Switching on the measuring device When the instrument is switched on for the first time, the following messages appear in a sequence of 5 s on the display: software version, communication protocoll and language selection ⇒...

  • Page 57: Basic Setup

    Levelflex M FMP45 with PROFIBUS PA Commissioning Basic Setup tank shape flange: Standard reference point of measurement measuring cond. Unknown measuring cond. Standard empty calibr. full calibr. mapping E = empty calibr. (= zero) LN = probe length setting in 005 setting in 033 safety settings F = full calibr.
  • Page 58 Commissioning Levelflex M FMP45 with PROFIBUS PA The basic setup is sufficient for successful commissioning in most applications. The Levelflex is initially adjusted at the factory to the probe length ordered, so that in most cases only the application parameters, that automatically adapt the device to the measuring conditions, need to be entered.

  • Page 59: Basic Setup With The Vu331

    Levelflex M FMP45 with PROFIBUS PA Commissioning Basic Setup with the VU331 Function "measured value" (000) ⇒ ENDRESS + HAUSER – This function displays the current measured value in the selected unit (see "customer unit" (042)) function). The number of digits after decimal point can be selected in the "no.of decimals"...
  • Page 60 Commissioning Levelflex M FMP45 with PROFIBUS PA bypass / pipe The "bypass / pipe" option is designed especially for the installation of probes in a bypass or a stilling well. If this option is selected, the upper blocking distance is preset to 100 mm. coax probe Select the "coax probe"...
  • Page 61 Levelflex M FMP45 with PROFIBUS PA Commissioning Function "process propert." (004) ⇒ ENDRESS + HAUSER – Use this function to adapt the device reaction to the filling speed in the tank. The setting impacts on an intelligent filter. Selection: • standard •...
  • Page 62 Commissioning Levelflex M FMP45 with PROFIBUS PA Function "probe length" (031) ⇒ ENDRESS + HAUSER – Use this function to select whether the probe length was changed after factory calibration. Only then is it necessary to enter or correct the probe length. Selection: •...
  • Page 63 Levelflex M FMP45 with PROFIBUS PA Commissioning After selection "length too short" or "length too long", the calculation of the new value need approx. 10 s. Function "empty calibr." (005) ⇒ ENDRESS + HAUSER – This function is used to enter the distance from the flange (reference point of the measurement) to the minimum level (=zero).
  • Page 64 Commissioning Levelflex M FMP45 with PROFIBUS PA Function "dist./meas.value" (008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the meas. value calculated with the aid of the empty adjustment are displayed. Check whether the values correspond to the actual meas.
  • Page 65 Levelflex M FMP45 with PROFIBUS PA Commissioning distance = ok Use this function at part-covered probe. Choosing function "manual" or "probe free" at free probe. • mapping is carried out up to the currently measured echo • The range to be suppressed is suggested in the "range of mapping" (052) function Anyway, it is wise to carry out a mapping even in this case.
  • Page 66 Commissioning Levelflex M FMP45 with PROFIBUS PA Function "dist./meas.vuale"(008) ⇒ ENDRESS + HAUSER – The distance measured from the reference point to the product surface and the meas. value calculated with the aid of the empty alignment are displayed again. Check whether the values correspond to the actual meas.

  • Page 67: Blocking Distance

    Levelflex M FMP45 with PROFIBUS PA Commissioning Blocking distance Function "upper block. dist" (059) ⇒ ENDRESS + HAUSER – For rod probes and for rope probes with lengths of up to 8 m, the upper blocking distance is preset to 0.2 m on delivery. For rope probes with lengths of more than 8 m, the upper blocking distance is preset to 2.5% of the probe length.
  • Page 68 Commissioning Levelflex M FMP45 with PROFIBUS PA Maximum measured error Typical statements for reference conditions: DIN EN 61298-2, percentage of the span. Output: digital analogue sum of non-linearity, measurig range: ± 0.06 % non-repeatability – up to 10 m: ±3 mm and hysteresis –...

  • Page 69: Envelope Curve With Vu331

    Levelflex M FMP45 with PROFIBUS PA Commissioning Envelope curve with VU331 After the basic setup, an evaluation of the measurement with the aid of the envelope curve ("envelope curve" (0E)) function group) is recommended.). 6.6.1 Function "plot settings" (0E1) ⇒ ENDRESS + HAUSER –...

  • Page 70: Function "Envelope Curve Display" (0E3)

    Commissioning Levelflex M FMP45 with PROFIBUS PA Function "envelope curve display" (0E3) You can obtain the following information from the envelope curve display in this function: quality of evaluated echo full calibr. evaluated echo empty calibr. is marked envelope curve minimum distance maximum distance distance of...
  • Page 71 Levelflex M FMP45 with PROFIBUS PA Commissioning 6.7.3 Mapping • Factory mapping Mapping (empty curve) is already available in the device when the device is delivered. • Customer mapping In a partially filled state, the distance up to 10 cm before the actual total level can be mapped (range of mapping = actual distance from total level - 10 cm), or values >...
  • Page 72 Commissioning Levelflex M FMP45 with PROFIBUS PA Move-Modus Then press , to switch to Move mode. Either is displayed. You now have the following options: • shifts the curve to the right. • shifts the curve to the left. L00-FMPxxxxx-07-00-00-xx-002 Vertical-Zoom-Modus Press , once more to switch to Vertical Zoom mode.

  • Page 73: Basic Setup With The Endress+Hauser Operating Program

    Levelflex M FMP45 with PROFIBUS PA Commissioning Basic setup with the Endress+Hauser operating program To carry out the basic setup with the operating program, proceed as follows: • Start the operating program and establish a connection. • Select the "basic setup" function group in the navigation window.
  • Page 74 Commissioning Levelflex M FMP45 with PROFIBUS PA Basic setup step 2/6: • Enter the application parameters (see chapter basic setup with "VU331"): – tank properties – medium properties – process properties l00-fmp4xxxx-20-00-00-en-002 Basic setup step 3/6: • Enter the application parameters (see chapter basic setup with "VU331"): –...
  • Page 75 Levelflex M FMP45 with PROFIBUS PA Commissioning Basic setup step 4/6: • Enter the application parameters (see chapter basic setup with "VU331"): – probe length – probe – probe length – determine length l00-fmp4xxxx-20-00-00-en-004 Basic setup step 5/6: • Enter the application parameters (see chapter basic setup with "VU331"): –...
  • Page 76 Commissioning Levelflex M FMP45 with PROFIBUS PA Basic setup step 6/6: • Interference echo suppression takes place in this step • The measured distance and the current measured value are always displayed in the header l00-fmp4xxxx-20-00-00-en-006.gif 6.8.1 Signal analysis via envelope curve After the basic setup, it is recommended to evaluate the measurement with the aid of the envelope curve.
  • Page 77 Levelflex M FMP45 with PROFIBUS PA Commissioning Evaluating the measurement with the aid of the envelope curve Typical curve shapes: The following examples display typical curve shapes for a rope or rod probe in an empty tank. For all probe types, a negative probe end signal is shown. For rope probes, the end weight causes an additional preliminary positive echo (see rope probe diagram).
  • Page 78 Commissioning Levelflex M FMP45 with PROFIBUS PA Evaluating the measurement: • The map must correspond to the course of the envelope curve (for rod probes up to approx. 5 cm and for rope probes up to approx. 25 cm before the end of the probe) when the tank is empty. •...

  • Page 79: Maintenance

    Repairs The Endress+Hauser repair concept assumes that the measuring devices have a modular design and that customers are able to undertake repairs themselves ( see Chap. 9.4. "Spare Parts" → ä 89). Please contact Endress+Hauser Service for further information on service and spare parts.

  • Page 80: Accessories

    Accessories Levelflex M FMP45 with PROFIBUS PA Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the Levelflex M. Weather protection cover A Weather protection cover made of stainless steel is recommended for outdoor mounting (order code: 543199-0001). The shipment includes the protective cover and tension clamp.

  • Page 81: Remote Display And Operation Fhx40

    Levelflex M FMP45 with PROFIBUS PA Accessories Remote display and operation FHX40 Micropilot M Wall-mounting Pipe-mounting Levelflex M (without mounting bracket) (mounting bracket and plate Prosonic M e r . e r . supplied optionally, s. product structure) o . : o .

  • Page 82: Centering Disks

    Accessories Levelflex M FMP45 with PROFIBUS PA Centering disks If the probes with rod version are used in stilling well or bypass, it must be ensured that the probe does not come into contact with the wall. The centering disk fixes the rod probe in the middle of the pipe.

  • Page 83: Commubox Fxa291

    Accessories Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field instruments with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or a notebook. For details refer to TI405C/07/en. Note! For the following Endress+Hauser instruments you need the "ToF Adapter FXA291" as an additional accessory: •...

  • Page 84: Trouble-Shooting

    Ready Communication ok? terminator function Check screening (see BA Section EMC interference? Communication ok? Ready 'Connection’) Contact Endress+Hauser Service Communication via Service adapter Not ok Check configuration Correct configuration Communication ok? Ready does not function of COM port on PC...

  • Page 85: System Error Messages

    Levelflex M FMP45 with PROFIBUS PA Trouble-shooting System error messages Code Description Possible cause Remedy A102 checksum error device has been powered off before data reset general reset & new calibr. could be stored; avoid emc problem; required emc problem; if alarm prevails after reset, PROM defect exchange electronics...
  • Page 86 Trouble-shooting Levelflex M FMP45 with PROFIBUS PA Code Description Possible cause Remedy W601 linearisation ch1 curve not linearization not monotonously increasing correct linearisation table monotone W611 less than 2 linearisation number of entered linearization points < 2 correct linearisation table points for channel 1 W621 simulation ch.

  • Page 87: Application Errors

    Levelflex M FMP45 with PROFIBUS PA Trouble-shooting Application errors Error Output Possible cause Remedy A warning or alarm Depending on the configuration See table of 1. See table of error messages (→ ä 85) has occurred. error messages (→ ä 85) →...
  • Page 88 Trouble-shooting Levelflex M FMP45 with PROFIBUS PA Device displays a Incorrect probe length 1. Carry out automatic probe length level when the detection when the tank is tank is empty. empty. 100% 2. Carry out mapping over entire probe when the tank is empty (probe free!).

  • Page 89: Spare Parts

    Levelflex M FMP45 with PROFIBUS PA Trouble-shooting Spare Parts An overview of the spare parts for your device is available in the internet at www.endress.com. To obtain information on the spare parts, proceed as follows: Go to "www.endress.com" and select your country. Click "Instruments".

  • Page 90: Return

    Levelflex M FMP45 with PROFIBUS PA Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present.

  • Page 91: Technical Data

    Levelflex M FMP45 with PROFIBUS PA Technical data Technical data 10.1 Additional technical data 10.1.1 Input The measured variable is the distance between a reference point (see Fig. on → ä 14) and the Measured variable product surface. Subject to the input empty distance (E, see Fig. on → ä 104), the level is calculated. Alternatively, the level can be converted by means of linearisation (32 points) into other variables (volume, mass).
  • Page 92 Technical data Levelflex M FMP45 with PROFIBUS PA Influence of ambiente The measurements are carried out in accordance with EN 61298-3: temperature • digital output (HART, PROFIBUS PA, Foundation Fieldbus): – average T : 0.6 mm/10 K, max. ±3.5 mm over the entire temperature range -40 °C...+80 °C Influence of gaslayer High pressures reduce the propagation velocity of the measuring signals in the gas/vapor above the fluid.
  • Page 93 Levelflex M FMP45 with PROFIBUS PA Technical data Installing FMP45 with Application Gasphase Compensation For level measurement in steam applications at high pressures and temperatures. (Coax only) At high pressures and temperatures, the speed at which microwave signals are propagated in steam (polar media) is reduced above the liquid being measured.
  • Page 94 Technical data Levelflex M FMP45 with PROFIBUS PA Installation This version of Levelflex M generates a reference reflection in the distance Lref from the flange (see → ä 8 "Ordering structure" option U: 300 mm/11"; option V: 550 mm/21"). The reference reflection must be at least 150 mm above the highest level.
  • Page 95 Levelflex M FMP45 with PROFIBUS PA Technical data 10.1.4 Operating conditions: Environment Ambient temperature range Ambient temperature for the transmitter: -40 °C ... +80 °C (-40 °F … +176 °F) The functionality of the LCD display may be limited for temperatures Ta<-20 °C and Ta>+60 °C.
  • Page 96 Technical data Levelflex M FMP45 with PROFIBUS PA Storage temperature -40 °C … +80 °C (-40 °F … +176°F) Climate class DIN EN 60068-2-38 (test Z/AD) Vibration resistance DIN EN 60068-2-64 / IEC 68-2-64: 20…2000 Hz, 1 (m/s Cleaning the probe Depending on the application, soilings or sediments can accumulate on the probe.
  • Page 97 Stainless steel 1.4401/316 DIN/EN flanges Endress+Hauser supplies DIN/EN flanges made of stainless steel AISI 316L with the material number 1.4435 or 1.4404. With regard to their stability-temperature property, the materials 1.4435 and 1.4404 are grouped together under 13E0 in EN1092-1 Tab.18.
  • Page 98 Technical data Levelflex M FMP45 with PROFIBUS PA 10.1.6 Mechanical construction Tolerance of probe length Rod probes over 1 m / 3.2 ft 3 m / 9.8 ft 6 m / 20 ft up to 1 m / 3.2 ft 3 m / 9.8 ft 6 m / 20 ft admissible tolerance (mm / inch)
  • Page 99 The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Manufacturer declaration Permitted pressures, temperatures and load cycles as per EN 13445 and AD- data sheet S2 (for FMP45).
  • Page 100 Technical data Levelflex M FMP45 with PROFIBUS PA WHG. See "Ordering structure" on → ä 8- (see ZE 256F/de). Overspill protection SIL 2, for 4...20 mA output (see SD174F/00/en "Functional safety manual"). Telecommunication Fulfils "Part 15" of the FCC regulations for an "Unintentional Radiator". All probes meet the requirements for a "Class A Digital Device".
  • Page 101 Levelflex M FMP45 with PROFIBUS PA Technical data Endress + Hauser...

  • Page 102: Appendix

    Appendix Levelflex M FMP45 with PROFIBUS PA Appendix 11.1 Operating menu PA (Display modul) basic setup tank properties medium cond. process proper. empty calibr. end of probe 030 determine length see Function group “leghth adjustment 03” enter value standard unknown standard aluminium tank DC: 1.4 …...
  • Page 103 Levelflex M FMP45 with PROFIBUS PA Appendix full calibr. dist./meas.value check distance range of mapping start mapping dist./meas.value enter value distance = ok input of D and L dist. too small mapping range are displayed D and L manual are displayed probe free dist.

  • Page 104: Description Of Functions

    Appendix Levelflex M FMP45 with PROFIBUS PA 11.2 Description of functions Note! A detailed description of the function groups, functions and parameters is given in the documentation BA245F – "Description of the instrument functions" on the enclosed CD-ROM. 11.3 Function and system design 11.3.1 Measuring principle The Levelflex is a "downward-looking"...
  • Page 105 • with a Personal Computer, FXA291 and ToF Adapter FXA291 (USB) and the operating software "FieldCare". The FieldCare is a graphical operating software for instruments from Endress+Hauser that operate based on the time-of-flight principle (radar, ultrasonic, guided micro-impulse). It assists with commissioning, securing data, signal analysis and documentation of the measuring point.

  • Page 106: Index

    Levelflex M FMP45 with PROFIBUS PA Index Index Media group ........60 Medium properties .
  • Page 107 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
  • Page 108 www.endress.com/worldwide BA280F/00/en/03.09 No. 71074931 CCS/FM+SGML 6.0/ProMoDo 71074931...
