Installation
20

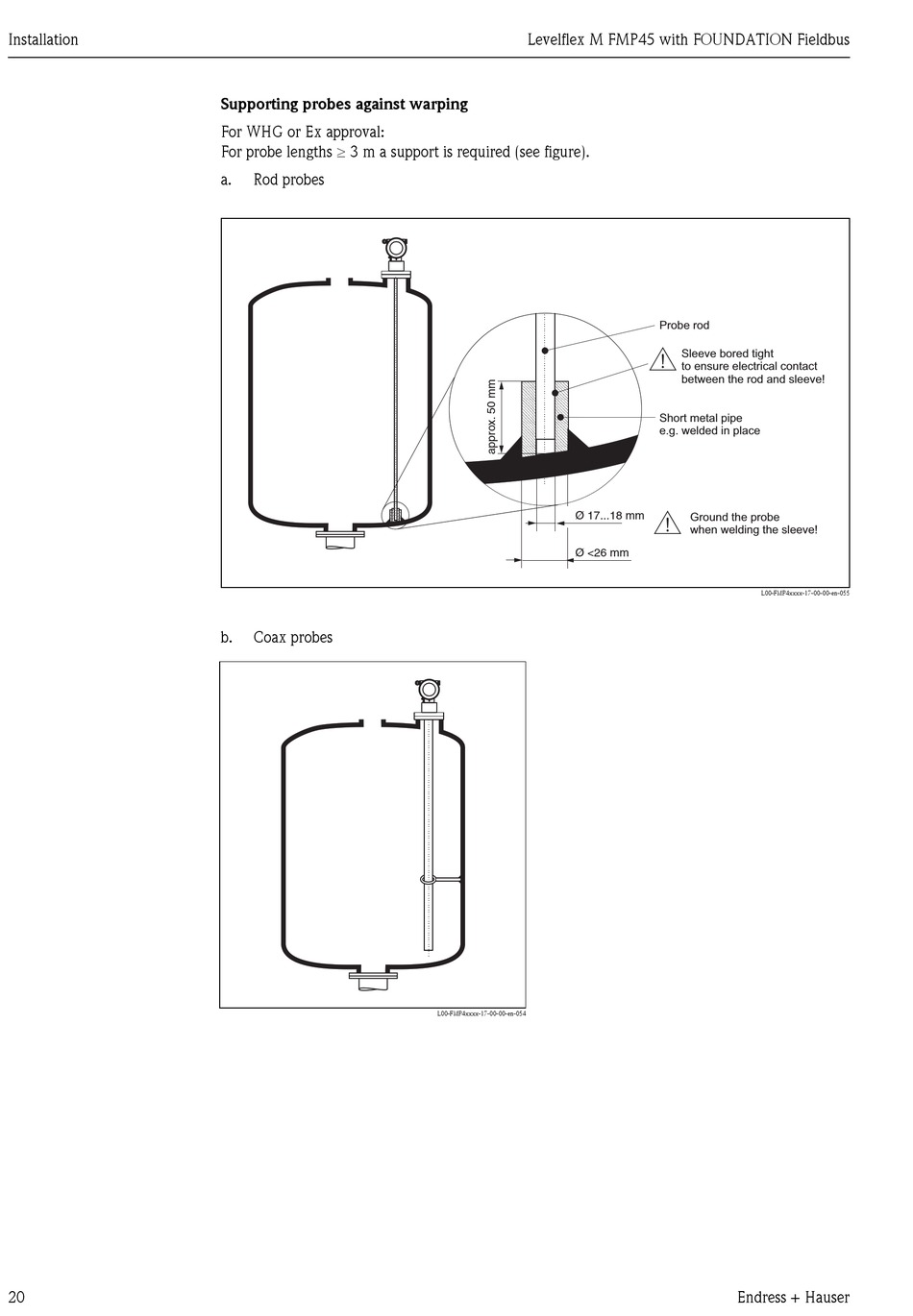

Supporting probes against warping
For WHG or Ex approval:
For probe lengths ≥ 3 m a support is required (see figure).
a.
Rod probes
b.
Coax probes
Levelflex M FMP45 with FOUNDATION Fieldbus
Ø 17...18 mm
Ø <26 mm
L00-FMP4xxxx-17-00-00-en-054
Probe rod
#
Sleeve bored tight
to ensure electrical contact
between the rod and sleeve!
Short metal pipe
e.g. welded in place
#
Ground the probe
when welding the sleeve!
L00-FMP4xxxx-17-00-00-en-055
Endress + Hauser
