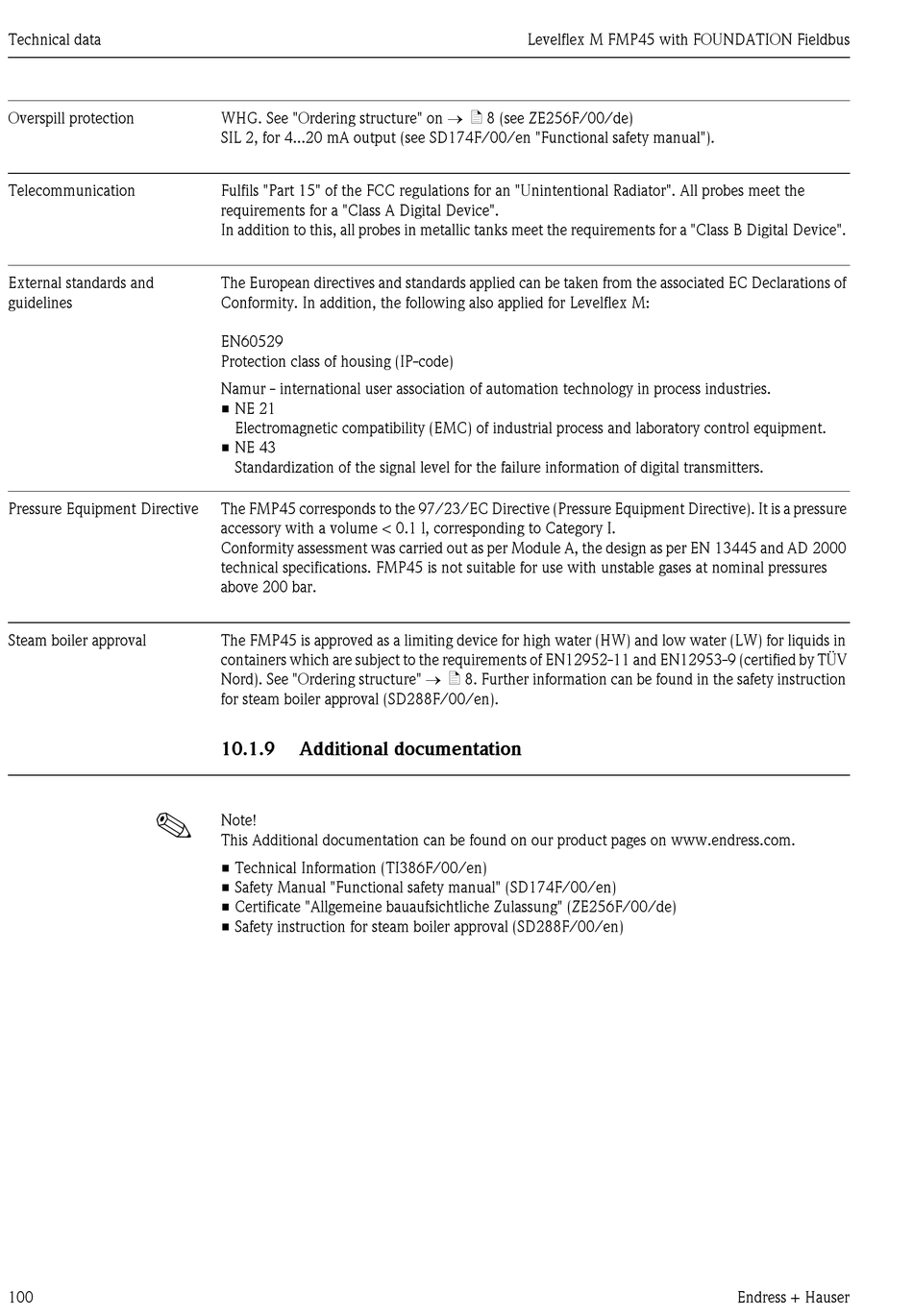

Endress+Hauser Fieldbus Levelflex M FMP45 Operating Instructions Manual page 100

Technical data
Overspill protection
Telecommunication
External standards and
guidelines
Pressure Equipment Directive
Steam boiler approval
!
100
WHG. See "Ordering structure" on → ä 8 (see ZE256F/00/de)
SIL 2, for 4...20 mA output (see SD174F/00/en "Functional safety manual").
Fulfils "Part 15" of the FCC regulations for an "Unintentional Radiator". All probes meet the
requirements for a "Class A Digital Device".
In addition to this, all probes in metallic tanks meet the requirements for a "Class B Digital Device".
The European directives and standards applied can be taken from the associated EC Declarations of
Conformity. In addition, the following also applied for Levelflex M:
EN60529
Protection class of housing (IP-code)
Namur - international user association of automation technology in process industries.
• NE 21
Electromagnetic compatibility (EMC) of industrial process and laboratory control equipment.
• NE 43
Standardization of the signal level for the failure information of digital transmitters.
The FMP45 corresponds to the 97/23/EC Directive (Pressure Equipment Directive). It is a pressure
accessory with a volume < 0.1 l, corresponding to Category I.
Conformity assessment was carried out as per Module A, the design as per EN 13445 and AD 2000
technical specifications. FMP45 is not suitable for use with unstable gases at nominal pressures
above 200 bar.
The FMP45 is approved as a limiting device for high water (HW) and low water (LW) for liquids in
containers which are subject to the requirements of EN12952-11 and EN12953-9 (certified by TÜV
Nord). See "Ordering structure" → ä 8. Further information can be found in the safety instruction
for steam boiler approval (SD288F/00/en).
10.1.9 Additional documentation
Note!
This Additional documentation can be found on our product pages on www.endress.com.
• Technical Information (TI386F/00/en)
• Safety Manual "Functional safety manual" (SD174F/00/en)
• Certificate "Allgemeine bauaufsichtliche Zulassung" (ZE256F/00/de)
• Safety instruction for steam boiler approval (SD288F/00/en)
