Levelflex M FMP45 with FOUNDATION Fieldbus
Endress + Hauser

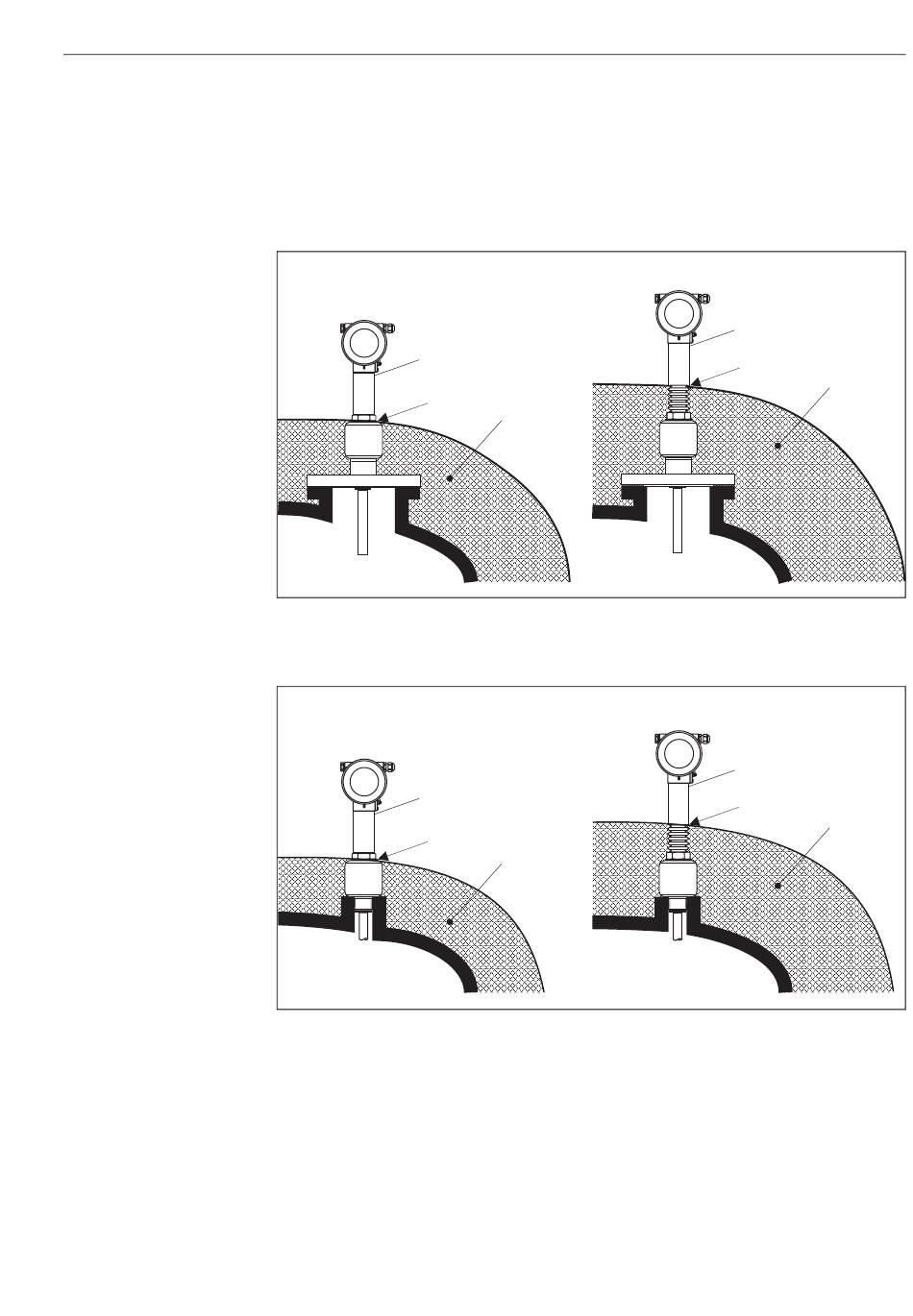

Installing with heat insulation
• If process temperatures are high (≥ 200 °C), FMP45 must be included in normal tank insulation
to prevent the electronics heating up as a result of heat radiation or convection.
• The insulation may not exceed beyond the points labelled "MAX" in the drawing.
Process connection with flange DN50...DN100
XT 280 °C
extended temperature version
(type of probe A)
MAX
max. 280° C (536° F)
Process connection with adapter G 1½" and 1½" NPT
XT 280 °C
extended temperature version
(type of probe A)
MAX
max. 280° C (536° F)
tank insulation
max. 400° C (752° F)
tank insulation
max. 400° C (752° F)
HT 400 °C
high temperature version
(type of probe B)
MAX
tank insulation
L00-FMP45xxx-17-00-00-en-001
HT 400 °C
high temperature version
(type of probe B)
MAX
tank insulation
L00-FMP45xxx-17-00-00-en-002
Installation
21
