Operation
ENDRESS + HAUSER
– +
E
F
basic setup
O
safety settings
length calibr.
linearisation
S
...
36

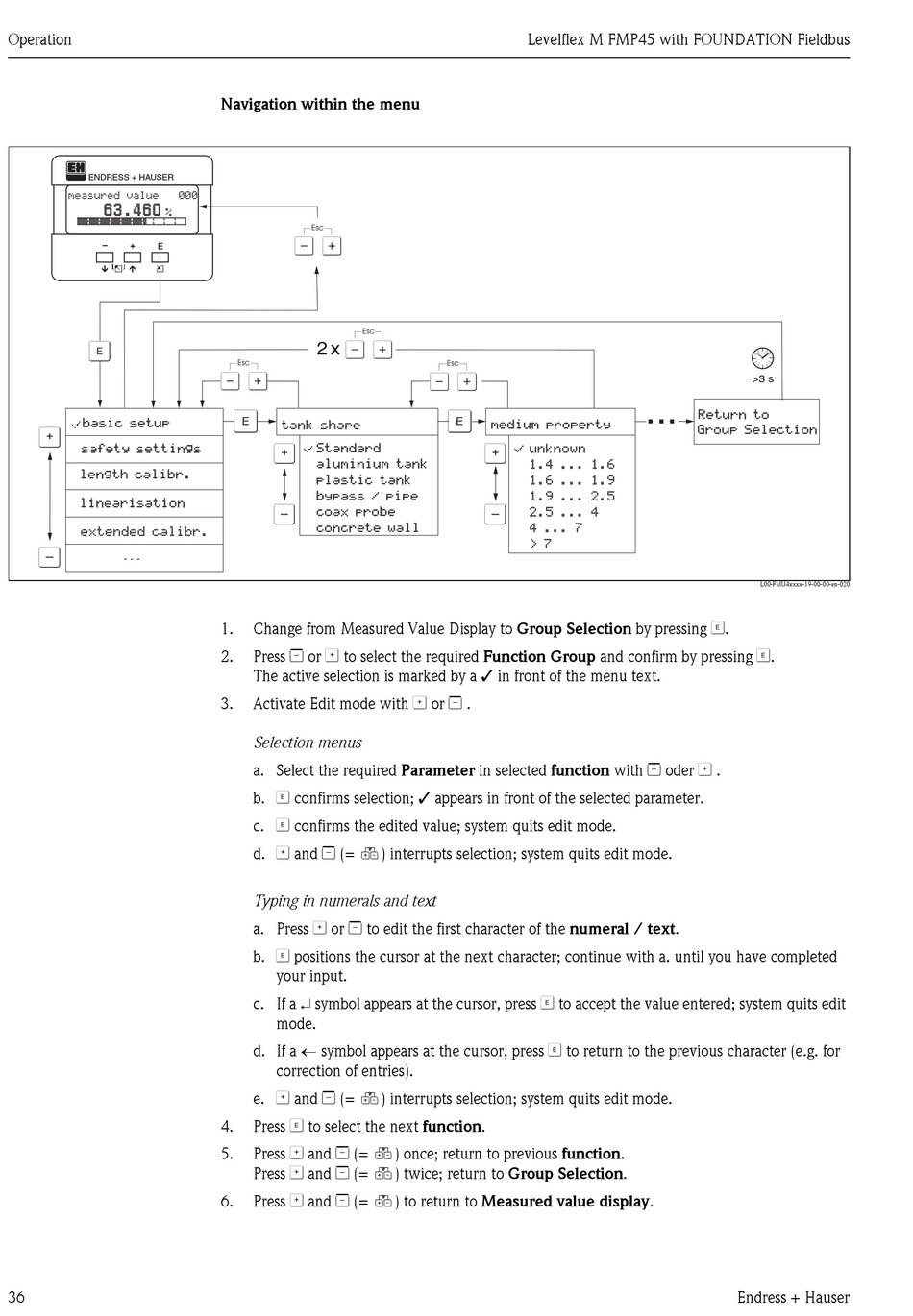

Navigation within the menu
X
X
2 x
X
F
tank shape
O
Standard
aluminium tank
plastic tank
bypass / pipe
S
coax probe
concrete wall
Change from Measured Value Display to Group Selection by pressing F.
1.
Press S or O to select the required Function Group and confirm by pressing F.
2.
The active selection is marked by a  in front of the menu text.
Activate Edit mode with O or S .
3.
Selection menus
a. Select the required Parameter in selected function with S oder O .
b. F confirms selection; Â appears in front of the selected parameter.
c. F confirms the edited value; system quits edit mode.
d. O and S (= Q) interrupts selection; system quits edit mode.
Typing in numerals and text
a. Press O or S to edit the first character of the numeral / text.
b. F positions the cursor at the next character; continue with a. until you have completed
your input.
c. If a ↵ symbol appears at the cursor, press F to accept the value entered; system quits edit
mode.
d. If a ← symbol appears at the cursor, press F to return to the previous character (e.g. for
correction of entries).
e. O and S (= Q) interrupts selection; system quits edit mode.
Press F to select the next function.
4.
Press O and S (= Q) once; return to previous function.
5.
Press O and S (= Q) twice; return to Group Selection.
Press O and S (= Q) to return to Measured value display.
6.
Levelflex M FMP45 with FOUNDATION Fieldbus
X
F
medium property
O
S
>3 s
...
Return to
Group Selection
L00-FMU4xxxx-19-00-00-en-020
Endress + Hauser
