Installation
Threaded connection
G 1 ½ (1 ½BSP)
reference point of
measurement
M10x1.0
rope probe
rope:
Ø 4 (0.16")
internal thread:
M14 on 4 (0.16") rope
Ø 22 (0.87")
14

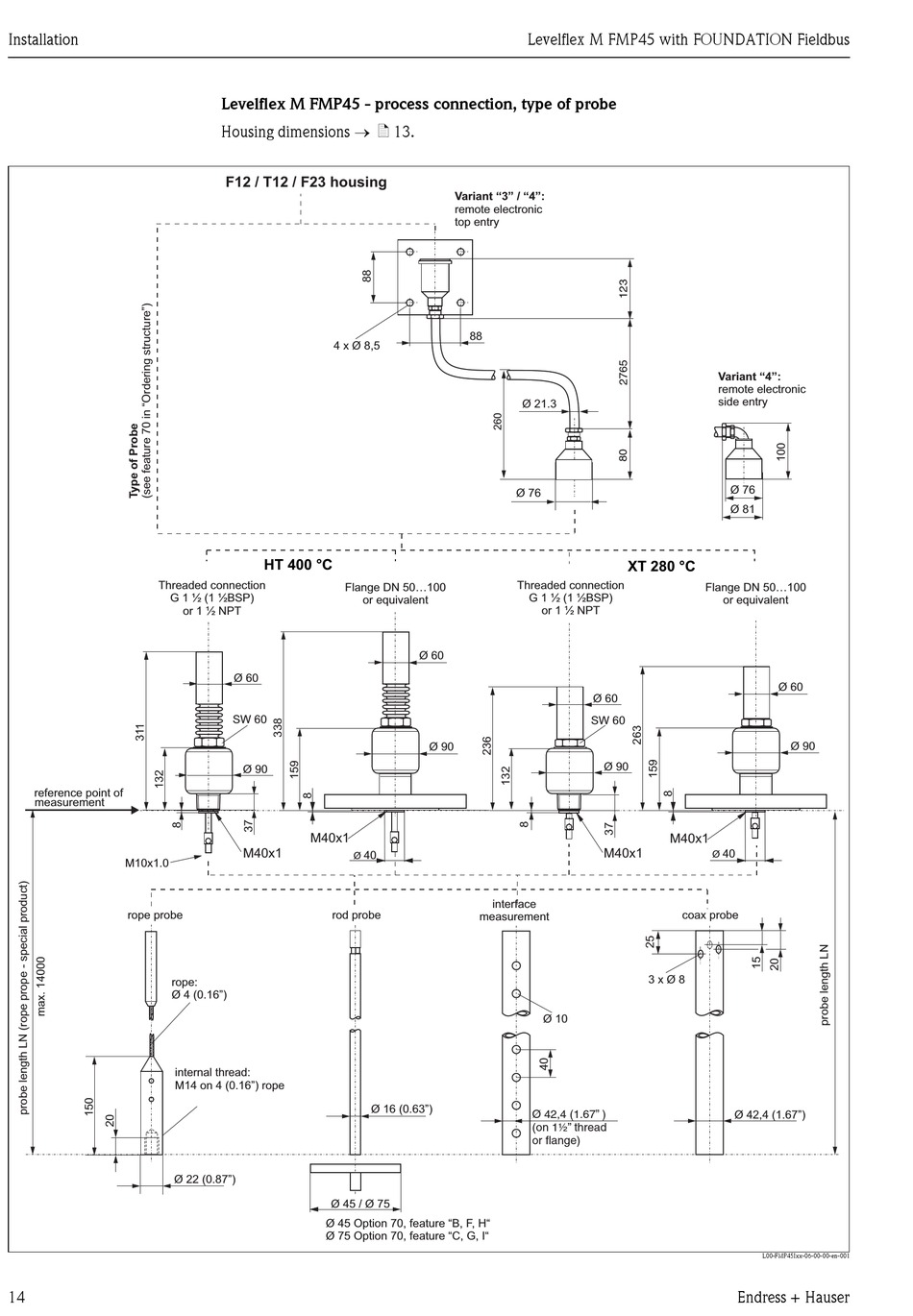

Levelflex M FMP45 - process connection, type of probe
Housing dimensions → ä 13.
F12 / T12 / F23 housing
4 x Ø 8,5
HT 400 °C
Flange DN 50...100
or 1 ½ NPT
Ø 60
SW 60
Ø 90
M40x1
M40x1
Ø
rod probe
Ø 45 / Ø 75
Ø 45 Option 70, feature "B, F, H"
Ø 75 Option 70, feature "C, G, I"
Levelflex M FMP45 with FOUNDATION Fieldbus
Variant "3" / "4"
remote electronic
top entry
88
Ø 21.3
Ø 76
Threaded connection
G 1 ½ (1 ½BSP)
or equivalent
Ø 60
Ø 90
40
interface
measurement
Ø 16 (0.63")
Ø 42,4 (1.67" )
(on 1½" thread
or flange)
:
XT 280 °C
Flange DN 50...100
or 1 ½ NPT
Ø 60
SW 60
Ø 90
M40x1
M40x1
Ø
coax probe
3 x Ø 8
Ø 10
Variant "4":
remote electronic
side entry
Ø 76
Ø 81
or equivalent
Ø 60
Ø 90
40
Ø 42,4 (1.67")
L00-FMP45Ixx-06-00-00-en-001
