1 Black sheath
•
7 ABS Cable grommets
•
1 connector clip

Motorcycle division

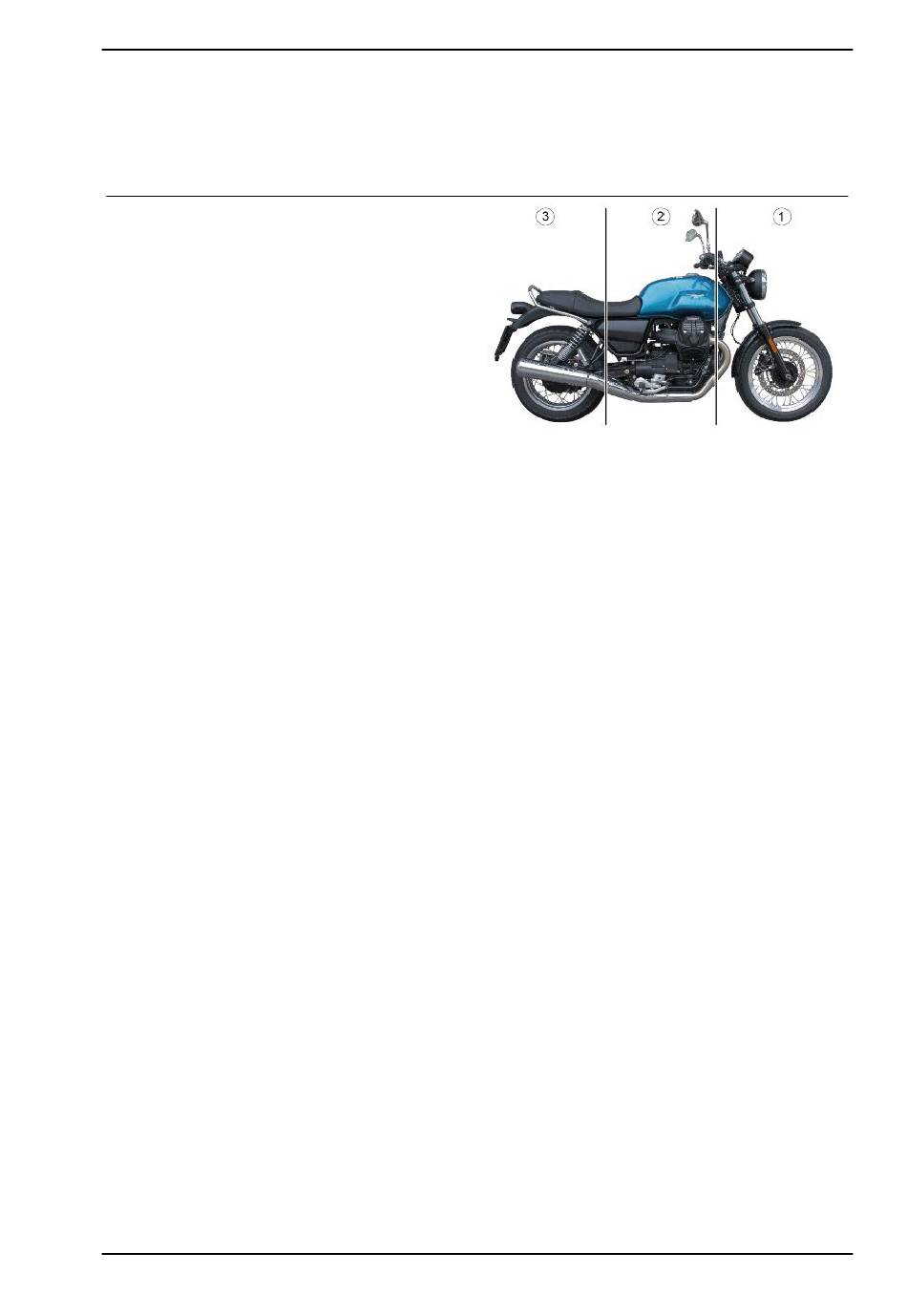

The wiring harnesses on the vehicle are subdivi-
ded into three main sections, as indicated in the
figure.
1. Front of vehicle
2. Centre of vehicle
3. Rear section
SPECIAL CHECKS FOR THE CORRECT CONNECTION AND ROUTING OF CABLES
It is extremely important that any security-locks for the following connectors are properly con-
nected and correctly tightened to ensure proper engine, and therefore proper vehicle, operation.
Carry out the checks listed below.
•
Instrument panel connector (is engaged and the boot well inserted)
•
Rear and front wheel ABS sensor connector
•
Check the correct connection of the ABS ECU connector
•
Taillight connector
•
Right and Left light switch connectors
•
Clutch connector
•
Ignition switch connector (check that the cable is not live)
•
ECU connector (G4) and the correct insertion of the relative rubber plug
•
Check the correct fastening of metallic bracket screw on the throttle body
•
Check the correct passage and fixing of the ABS fuse
•
Check the right and left injectors connection
•
Check the connection of the engine head temperature sensor
•
Check the insertion of the starter motor faston
•
Check the correct insertion of H.V. Cables with the Coils (RH and LH).
•
Check whether the Grey H.V. Cable connects on the Coil with the Grey tape
•
Check whether the Grey H.V. Cable goes to the Left engine head
•
Check the coils connection (and their correct positioning on the frame)
•
Check ground fastening on the engine
•
Check NEUTRAL cable fastening
•
Check whether the right lambda probe is connected to the output labelled "RH LAMBDA"
•
Check the Regulator and Flywheel connection
•
Check the Pick Up connection
