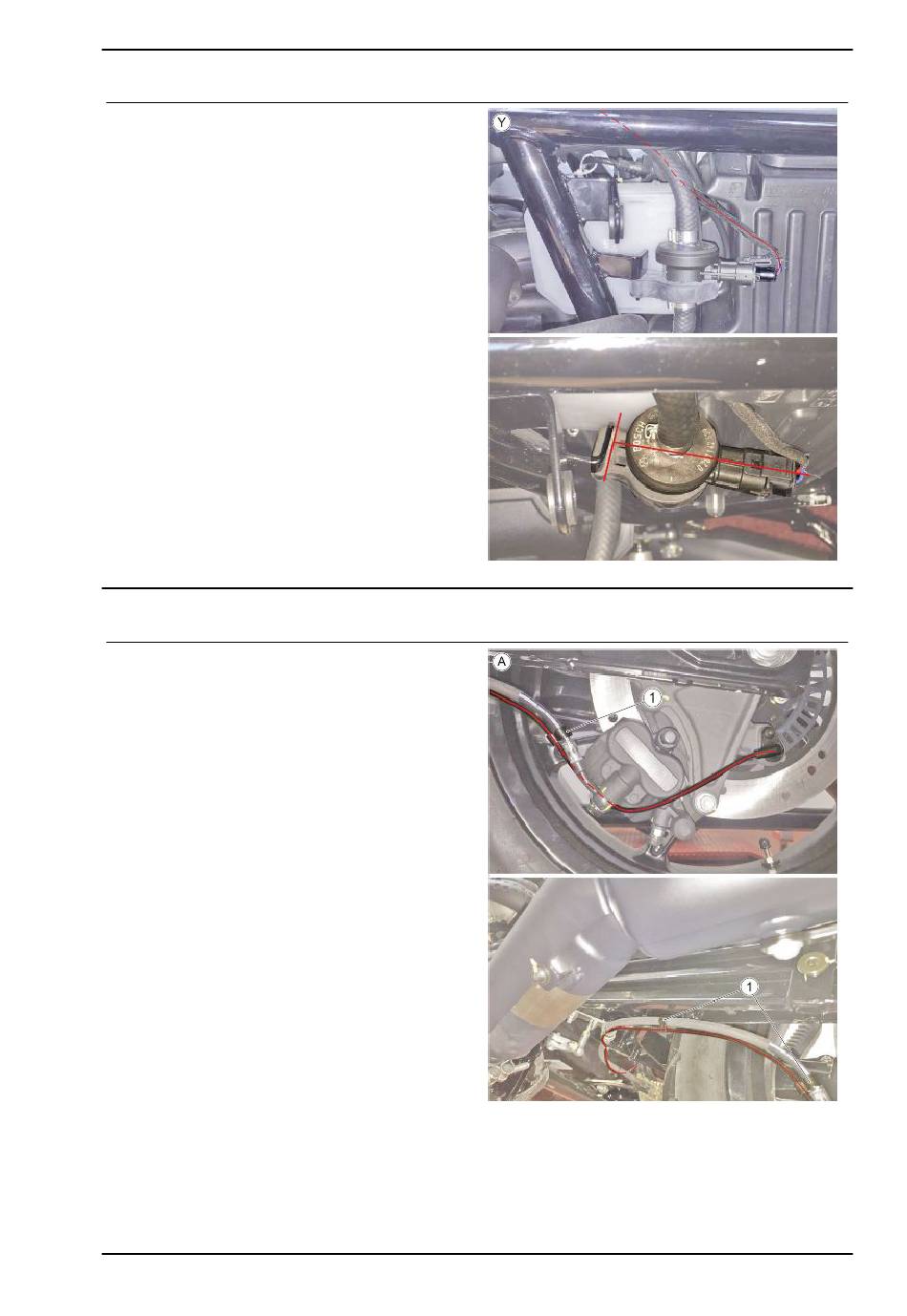

TABLE Y - CANISTER VALVE
•
Proceed as indicated in the figure
•
Make sure that the canister valve is
positioned as in the figure so as to have
the connection perpendicular to the
support bracket
Back side
TABLE A - REAR WHEEL ABS SENSOR ROUT-
ING
•
Pass the ABS sensor cable behind the
brake calliper coupling
•
Using a cable guide (1), fasten the ABS
sensor cable to the rear brake pipe
