MOTO GUZZI V7 E5 Special-Stone Service Station Manual page 88

Electrical system

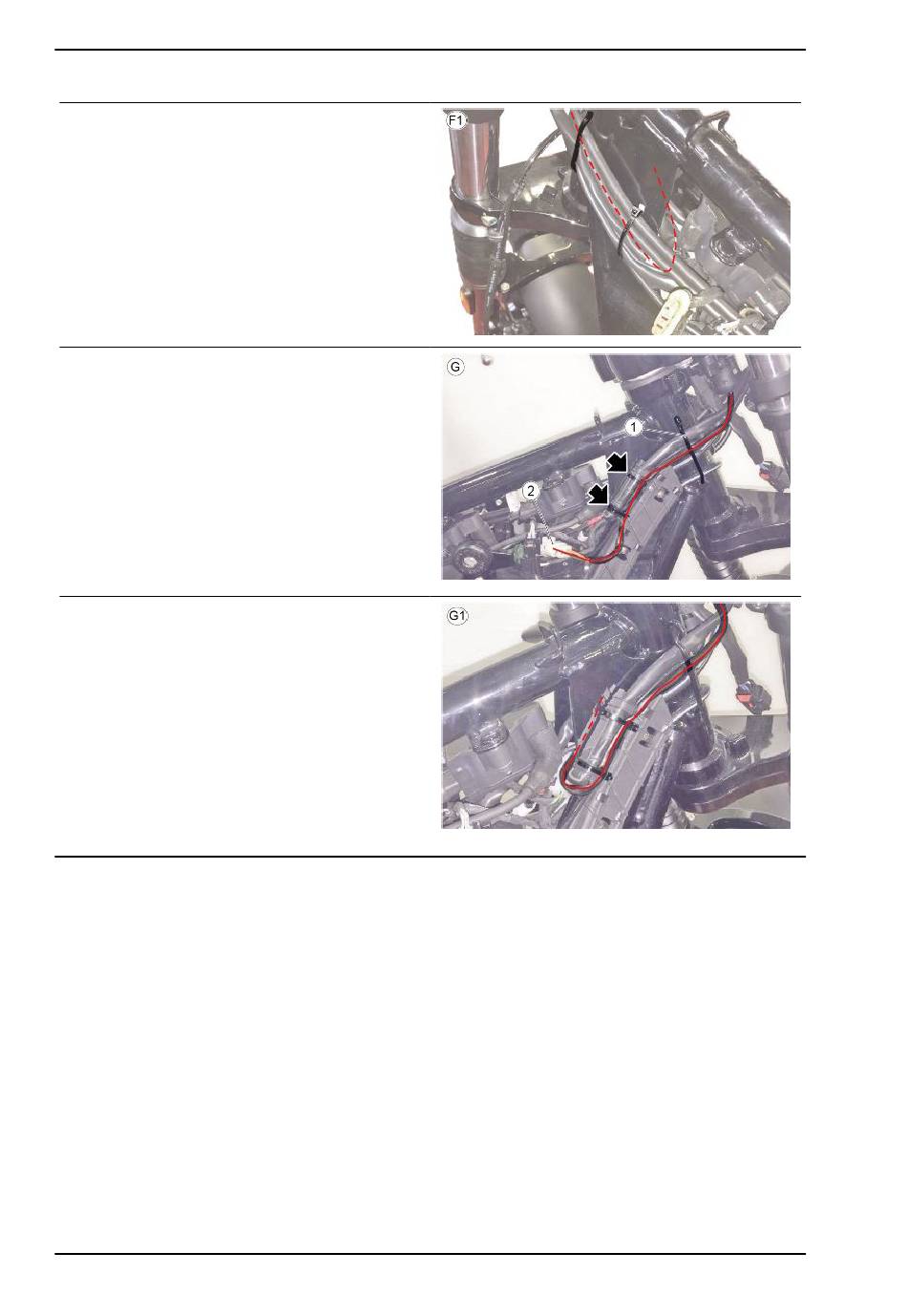

TABLE F1
•
Pass the clutch cable wiring harness
through the metal cable grommet on
the chassis, fasten it with a large plastic
clamp to the wiring harnesses along
the steering headstock and hide the
connection behind it
TABLE G - IGNITION UNIT
•
Pass the ignition unit wiring harness
through the metal cable grommet (1)
on the chassis, then fasten it with 2
plastic clamps to the dedicated com-
partment on the conduit
•
Connect the wiring harness to the con-
nector 2 on the vehicle
TABLE G1
•
Fit the connectors on the ignition unit
behind the steering headstock plates
ELE SYS - 88
V7 E5 Special-Stone
