Electrical system

Starter relay pin out

1. control unit relay output (blue/yellow)
2. Control unit ignition switched live (red/green)
3. Starter motor (violet)
4. /
5. Control unit ignition switched live (red/green)
Diagnostic tool - Parameters and statuses
•
Starting request - (Absent, Present,
Closed Loop, Closed)
•
Start enable - (NO, YES)
Diagnostics tool - Logic errors
Starter button P0512 - signal not valid
Error cause
•
Fault in the switch (lock) of the engine start-up or short circuit to ground
Troubleshooting
•
Check if the button remains in start position; if not OK, restore, if OK check that there is no
short circuit to ground of the grey/red cable; if it is not, restore. If it is OK, replace

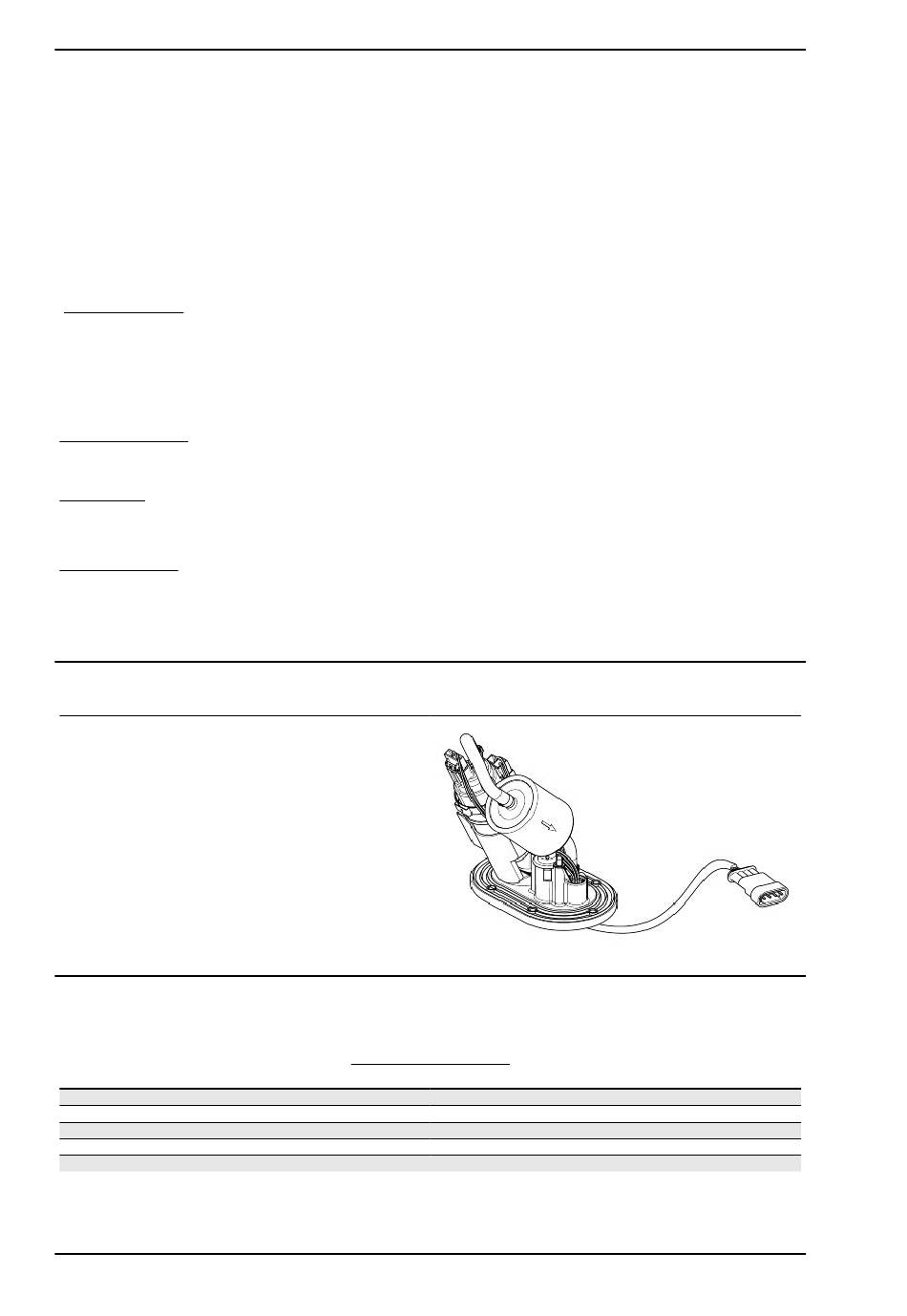

level indicators

Petrol pump:
Input 4A (to be measured between pins 1 and 2
with 12V supply voltage)
Fuel level sensor:
Resistance 1.4 Ohm (to be measured between
pins 3 and 4 with fuel level equal to 0 litres)

Lights list

Specification
Low/high beam light (halogen)
Front DRL
taillight /stop lights
Turn indicators
Dashboard lighting
ELE SYS - 122

BULBS (SPECIAL)

V7 E5 Special-Stone
Desc./Quantity
12 V - 55 W / 60 W H4
12 V - 5 W
LED
LED
LED
