Part 6 - Installing the Condensate Drain

CAUTION
This condensing high efficiency boiler has a condensate removal
system. Condensate is water vapor derived from combustion
products, similar to that produced by an automobile when it is initially
started. It is very important that the condensate line is sloped down
away from the boiler and to a suitable drain.
The condensate line must remain unobstructed. If allowed to freeze in
the line or obstructed in any other manner, condensate can exit from
the boiler tee, resulting in potential water damage to property.
When installing a condensate pump, select one approved for use with
condensing boilers and furnaces. The condensate pump should have
an overflow switch to prevent property damage from spillage.
Condensate from the boiler will be slightly acidic (pH from 2 to 4.5).
Check with your local gas company to determine if combustion
condensate disposal is permitted in your area. Install a neutralizing
filter if required by local codes.
NOTES:
1. Due to its efficient design, the boiler produces condensate (water)
as a normal by-product. This condensate is acidic, with a pH level
between 2 and 4.5. This condensate must be drained away from the
boiler and disposed in accordance with all local regulations.
2. The condensate line should be as short as possible and must be
pitched at least ¼" per foot to properly drain. If this cannot be done,
increase the condensate line to a minimum of 1" ID and place a tee in
the line to properly reduce vacuum lock in the drain line. Tees should
be placed after the condensate neutralizer (if used).
3. Use corrosion-resistant materials to drain condensate. Use the
included flexible plastic hose and flexible tube, PVC, or CPVC pipe. PVC
or CPVC pipe must comply with ASTM D1785, F441, or D2665. Cement
must comply with ASTM D2564 for PVC pipe or F493 for CPVC pipe. For
Canadian applications, use CSA or ULC certified flexible tube, PVC or
CPVC pipe, fittings, and cement.
4. If using flexible tube, place an overflow tee in the tube line to prevent
CONDENSATE PIPING
(SUGGESTED SETUP FOR
CONDENSATE REMOVAL
BOILER
PROVIDED FLEXIBLE
CONDENSATE HOSE
RECOMMENDED
3/4" PVC PIPE
HORIZONTAL LINES RECOMMENDED
BE INSTALLED WITH A PITCH
OF 1/4" PER FOOT
RECOMMENDED
CONDENSATE NEUTRALIZER

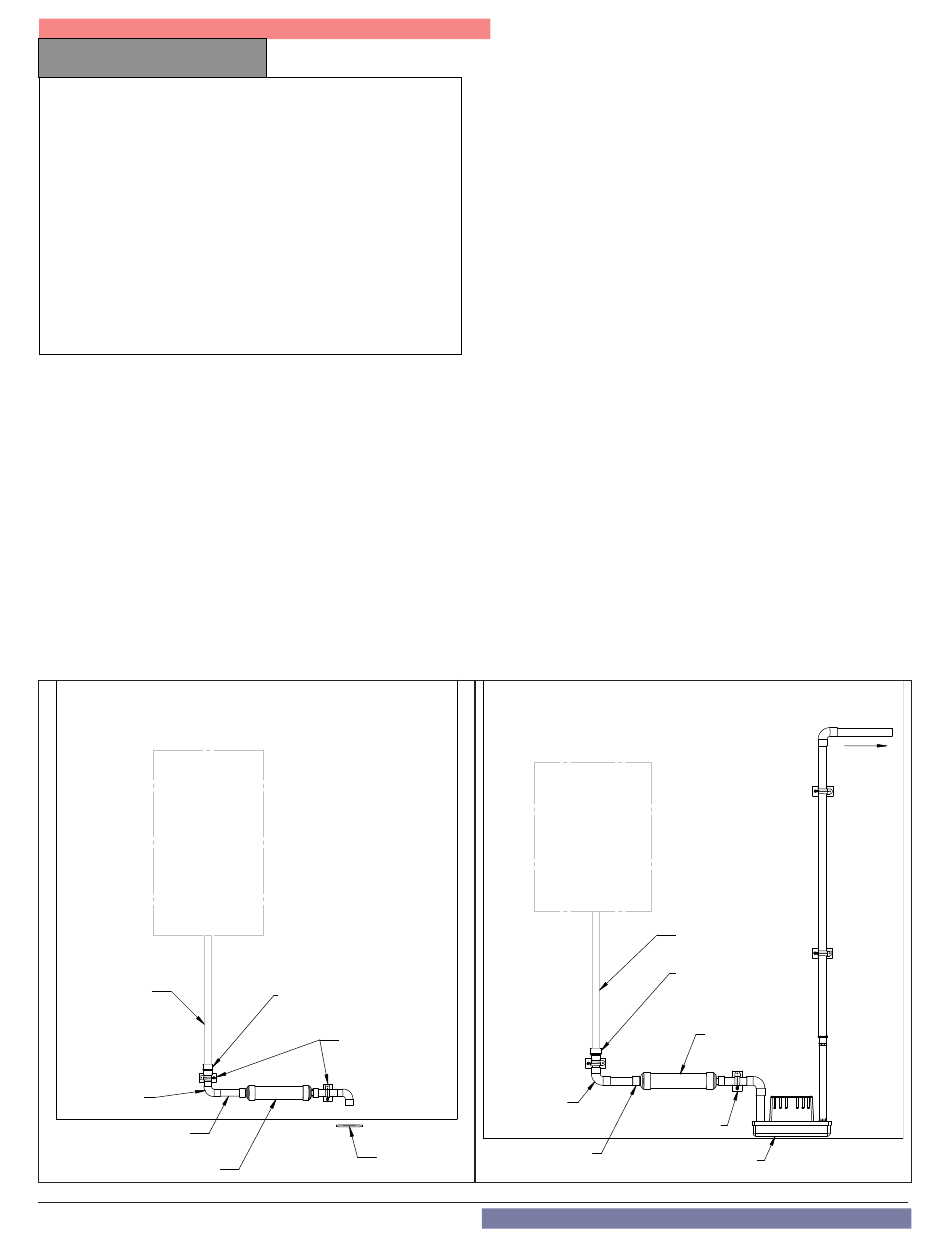

Figure 47 - Condensate Piping Suggestions
48
TO FLOOR DRAIN)
CONNECTION FOR VACUUM
BREAK AND OVERFLOW EXAMPLE:
LOOSE FITTING 1" X 3/4" PVC
PIPE REDUCER - SWEAT
PIPE HANGERS RECOMMENDED
BE USED TO SUPPORT
PIPING VERTICAL OR
HORIZONTAL
EXISTING DRAIN
condensate backing up into the boiler if the tube should kink. Ensure
the overflow tee is positioned near a drain or in a location that will not
damage the surrounding area.
5. Do not reduce the size of the condensate line. The line must at
minimum equal the diameter of the line included with the appliance.
6. A frozen condensate line could result in a blocked vent condition.
It is very important to protect the condensate line from freezing
temperatures or any type of blockage. In installations that may
encounter sustained freezing conditions, the use of heat tape is
recommended to avoid freezing of the condensate line. Longer
condensate runs are more prone to freezing.
7. Support of the condensate line may be necessary to avoid blockage
of the condensate flow.
8. Local building codes may require an in-line neutralizer to be
installed (not included) to treat the condensate. See Figure 47. If
required by local authorities, a condensate filter of lime crystals,
marble, or phosphate chips will neutralize slightly acidic condensate.
Follow all the installation instructions included with the neutralizer.
If a neutralizer is installed, periodic replacement of the limestone
(or neutralizing agent) will be required. The rate of depletion of the
limestone varies with usage of the boiler. During the first year of boiler
operation, check the neutralizer every few months for depletion.
9. Route the drain line to a nearby floor drain, laundry tub, or condensate
pump. If the boiler condensate outlet is lower than the drain, you must
use a condensate removal pump.
NOTE: If a nearby laundry tub is used as a disposal for waste water from
the washing machine, draining the condensate into this tub allows the
soapy water discharge to neutralize the acidic condensate.
10. An error will appear on the boiler display if condensate line is
blocked. The boiler will not operate with a blocked condensate line.
It is extremely important to have this condition repaired by a qualified
service technician.
11. Damages due to frozen or blocked condensate lines or leaks ARE
NOT covered by warranty.
NOTE: To clean out condensate trap, see Maintenance section.
BOILER
LP-723-A
RECOMMENDED:
06/24/20
3/4" PVC PIPE SWEAT
CONNECTIONS
THROUGHOUT
RECOMMENDED:
HORIZONTAL LINES MUST
BE INSTALLED WITH A PITCH
OF 1/4" PER FOOT
CONDENSATE PIPING WITH PUMP
(SUGGESTED SETUP FOR CONDENSATE
REMOVAL TO OUTSIDE SOURCE)
PROVIDED FLEXIBLE
CONDENSATE HOSE
RECOMMENDED:
CONNECTION FOR VACUUM
BREAK AND OVERFLOW
EXAMPLE: LOOSE FITING
1" x 3/4" PVC PIPE
REDUCER - SWEAT
RECOMMENDED:
CONDENSATE
NEUTRALIZER
RECOMMENDED:
PIPING SUPPORTS
554200 LITTLE GIANT
CONDENSATE PUMP
TO OUTSIDE
OR DRAIN
LP-723-B
06/24/20
