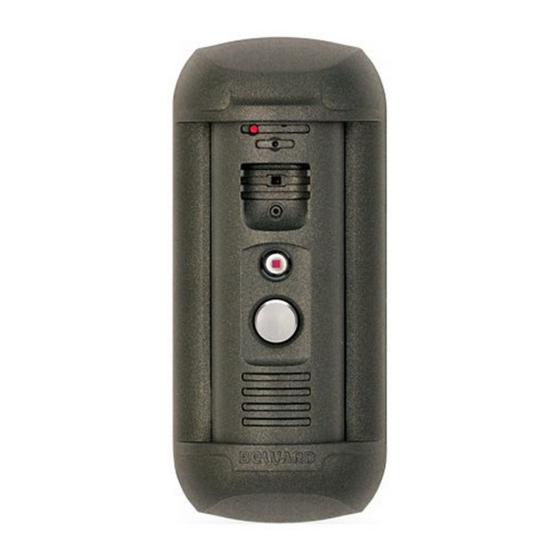

- Page 1 V I D E O S U R V E I L L A N C E Operation User Manual IP Video Door Station DS03M(P) Electronic Motorized Lock Control Multiaccessible User Operation Built-in IP Video Camera Two-Way Audio...
-
Page 2: Table Of Contents
ESTORE 12.6. R ............................... 49 EBOOT 12.7. S ............................50 YSTEM CHAPTER 13. ALARM ........................51 CHAPTER 14. RECOMMENDATIONS ON SETTING AND OPERATION OF DS03M(P) ....52 14.1. A ......................52 COUSTIC ANCELLATION 14.2. S ....................53 OUND AIN AND... - Page 3 Contents C1. PBX Compatibility ..........................58 C2. Software Compatibility ........................58 C3. Hardware Compatibility ........................58 D. G ..........................59 PPENDIX LOSSARY IP Video Door Station DS03M(P) Operation User Manual...
-
Page 4: Chapter 1. Safety Instructions
unplug the power cord and disconnect all other cords from the door station contact our Service Center. You can find contact information on our website: http://www.beward.net/. Transportation Ttransport the door station carefully, using the original box and protective packing. IP Video Door Station DS03M(P) Operation User Manual... - Page 5 Use a soft, dry cloth for cleaning door station’s external surfaces. It is acceptable to use some detergent for removing persistent dirt, but not the volatile cleaners such as the alcohol- containing solvents, benzene and so on, because of the risk to damage the door station’s housing. IP Video Door Station DS03M(P) Operation User Manual...
-
Page 6: Chapter 2. Description
10 m. The DS03M model is connected to the network using the 10/100BASE-TX Ethernet interface. In case of DS03M power is supplied from a DC 12V power source. The DS03MP model supports PoE. -
Page 7: Key Features
Package contents and door station specification are subject to change without notice. 2.1.3. Default Settings IP-address: 192.168.0.99 Subnet mask: 255.255.255.0 Gateway: 192.168.0.1 User name: admin User password: admin HTTP-port: 80 Data port: 5000 IP Video Door Station DS03M(P) Operation User Manual... -
Page 8: What Is This User Manual For
2.2. What Is This User Manual for IP Video Door Station DS03M(P) can be also used as a video surveillance device which has a built-in web server and a web interface. You can watch real-time video displayed by the door station using a standard web browser or by means of free software included in the package contents (you can also download the necessary applications from the “Play Market”... -
Page 9: Chapter 3. Start Using
To work with the door station web interface you need to install the ActiveX add-on. You will see the system notification at the bottom of the window: “This webpage wants to run the following add-on: “AxMediaControl ActiveX Control Module” from “BEWARD Co., Ltd” (Pic. 3.2). IP Video Door Station DS03M(P) Operation User Manual... - Page 10 Installation of ActiveX components is only possible for 32-bit Internet Explorer. On default, the Internet Explorer security system blocks ActiveX installation. Click [Install] to continue (Pic. 3.3). Pic. 3.3 Then you will see the following window (Pic. 3.4): IP Video Door Station DS03M(P) Operation User Manual...
- Page 11 Give a positive answer in the notification window to permit installation. Open Internet Explorer, enter door station’s IP address and press [Enter]. Enter username and password and then click [Login] (Pic. 3.7). IP Video Door Station DS03M(P) Operation User Manual...
- Page 12 Chapter 3. Start Using Pic. 3.7 If everything was done correctly, you will start receiving a video stream from door station’s camera (Pic. 3.8). Pic. 3.8 IP Video Door Station DS03M(P) Operation User Manual...
- Page 13 Chapter 3. Start Using If you failed to install ActiveX correctly you can do it again by clicking the link in the authorization window (Pic. 3.9) and following the instructions above. Pic. 3.9 IP Video Door Station DS03M(P) Operation User Manual...
-
Page 14: Main Window (Liveview)
PC speakers and from the PC microphone to the door station speaker. Listen: press this button to listen sound from the door station microphone via the PC speakers. IP Video Door Station DS03M(P) Operation User Manual... - Page 15 Images: using this toolbar you can adjust the video image parameters, such as brightness, contrast, hue and saturation. Press [Default] to restore the parameters to the factory defaults (Pic. 3.11). Pic. 3.11 IP Video Door Station DS03M(P) Operation User Manual...
-
Page 16: Chapter 4. Replay
(Pic. 4.2): Pic. 4.2 NOTE! In Windows 7 (and later OS versions) you may need to run Internet Explorer as administrator to provide correct operation of the web interface player. IP Video Door Station DS03M(P) Operation User Manual... -
Page 17: Chapter 5. Config: Local Config
Otherwise, the files will not be saved. In Windows 7 you need to run Internet Explorer as administrator to save the files to the local disc. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 18: Chapter 6. Config: Audio Settings
Adjusting the “Input Volume” and “Output Volume” parameter will change a device operation mode and may cause defects such as interrupted speech, echo, etc. Adjust these parameters only in case when it is strongly needed. IP Video Door Station DS03M(P) Operation User Manual... -
Page 19: Chapter 7. Config: Video Settings
. The upper group is used for changing the title position, and the lower group allows you to change the position of other information. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 20: Video Coding
CBR – the bitrate value is in priority and the level of quality may vary. In this case the current bitrate value approaches the value you specify in the “Bitrate” field and an allowable fluctuation limit you can specify in the “Bitrate fluctuate” field. IP Video Door Station DS03M(P) Operation User Manual... - Page 21 “I Frame” – 50, “Frame rate” – 25 fps, “Rate control” – VBR, “Bitrate” – 512 kbit/s. [WAN]: “I Frame Interval” – 25, “Frame rate” – 5 fps, “Rate control” – VBR, “Bitrate” – 384 kbit/s. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual...
-
Page 22: Privacy Mask
You can set up to the 4 mask areas. [Full screen]: click this button to place the mask at full screen. [Clear]: click this button to remove the all mask areas. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 23: Video Parameters
“High Level”: the LED is disabled during day mode operation and enabled during night mode operation. “Low Level”: the LED is enabled during day mode operation and disabled during night mode operation. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 24: Chapter 8. Config: Network Settings
ONVIF Port: the number of the port used for work with the ONVIF protocol. The default value is 2000. The recommended values are from 1124 to 7999 (it is not recommended to change this parameter without necessity). Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 25: Lan
Applying new settings in the “LAN Setting” menu require a reboot procedure. ATTENTION! The door station is rebooted automatically as LAN settings are changed. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 26: Pppoe
UserName: enter a user name for a PPPoE connection. Password: enter a user password for a PPPoE connection. Online Time: the time of connection is displayed in this field. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 27: E-Mail
SMTP Port: enter a port number of the SMTP server (by default – 25). SSL: tick off this option if it is required by your Internet service provider. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 28: Ftp
Start Port / End Port: specify the range of the ports for getting access to the server. NOTE! Before setting, make sure that you have enough rights to record files to the FTP server you are going to use. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 29: Ddns
Update Interval: choose the time interval which will be used by the device to initiate IP address update on the DDNS server after IP address change. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 30: Vpn
“0”. <Y> – a command of the video stream profile: 0 – main stream, 1 – sub stream. Here is request for example: rtsp://192.168.0.99:554/av0_0. IP Video Door Station DS03M(P) Operation User Manual... - Page 31 Here is request for example: rtsp://192.168.0.99:554/av0_0&user=<admin>&password=<admin>. Packet Size: set the necessary size of a data packet. By default: 1372. Port: RTSP port. By default: 554. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual...
-
Page 32: Https
A web-page where you can upload a certificate file opens after clicking the button. Choose the file with the “.pem” extension and click [Upload]. The certificate you install should correspond with the request, because the data are compared during the certificate installation. IP Video Door Station DS03M(P) Operation User Manual... - Page 33 HTTP, HTTPS, HTTP & HTTPS. The TCP-port 443 is used for the HTTPS protocol. Note this fact if you use a port forwarding on your router. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual...
-
Page 34: Sip
Registration server / Port: the network address and port of a registration server. Addresses of the registration server and the SIP server can match. By default, the fields are empty. IP Video Door Station DS03M(P) Operation User Manual... - Page 35 “open the door” command (in case of receiving the DTMF signal of closing the relay outputs by the door station). The function can be set for each relay out separately. By default, the function is disabled. IP Video Door Station DS03M(P) Operation User Manual...
-
Page 36: Modbus
Enable: put a tick to use the function. TCP port: specify the number of the port for the Modbus protocol. The number by default is 502. To save new settings click [Save]. IP Video Door Station DS03M(P) Operation User Manual... -
Page 37: Chapter 9. Config: Record Settings
Record the Stream: choose what video stream needs to be recorded, the main or the sub. NOTE! The “Record the Stream” setting is also influenced video recording on alarm. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 38: Snapshotting
Time 1/2: set the schedule for snapshotting. Two schedules are available. Resolution: choose a necessary resolution of the snapshots. NOTE! The “Resolution” setting is also influenced snapshotting on alarm. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 39: Chapter 10. Config: Alarm Settings
The snapshots will not be recorded if nothing is set. Record: tick off this option to activate recording video files on motion detection triggering. Record time: set a necessary duration of the video files. IP Video Door Station DS03M(P) Operation User Manual... -
Page 40: Call Button
Snap interval: set the snapshotting time interval. It can be specified with a decimal number, for example: 0.5 s, 1.5 s, etc. IP Video Door Station DS03M(P) Operation User Manual... - Page 41 FTP server. It means that video file duration varies from 1 to several seconds, depending on bitrate value. NOTE! If several alarm events happen at once, the corresponding number of equal video files will be recorded. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual...
-
Page 42: Chapter 11. Config: Controller
The “Controller Settings” menu is shown on the Picture 11.1. Pic. 11.1 The package contents may include a 1-channel (DS03M(C1) / DS03M(C1P)) or a 3-channel controller (NC301P2), depending on a purchased model of the door station. You can connect to the door station devices of different types. In addition to the doors (door locks) it can be garage door openers, light switches, alarm systems and so on. - Page 43 Chapter 11. Config: Controller Open door sound: put a tick to play a sound signal through the door station speaker when clicking the “open the door” button in the BEWARD Intercom and BEWARD IP Visor applications. NOTE! The “Open door sound” function doesn’t work together with the “Close by call” option for the selected relay output.
-
Page 44: Chapter 12. Config: System
Language: choose the language of the web interface. Build Time: the field contains the date when the firmware was built that is used for more precise identification. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 45: System Time
(“Week” type). Start / End Time: set the time of advancing and backward adjusting. DST Bias: set a size of the time shift. Press the [Save] button to apply new settings. IP Video Door Station DS03M(P) Operation User Manual... -
Page 46: Access Policy
Entering username and password, pay attention to the size of symbols. Both uppercase and lowercase letters are available. The length of username and password vary from 1 to 15 symbols which may include Latin letters (A-Z, a-z), figures from 0 to 9 and a dot (.). IP Video Door Station DS03M(P) Operation User Manual... -
Page 47: Fw Upgrade
For this purpose, go to the menu Tools – Internet options – Security and press the [Custom level] button. Find the item “Include local directory path when uploading files to a server” in the opened window and select “Enable” (Pic. 12.5). IP Video Door Station DS03M(P) Operation User Manual... - Page 48 Do not disconnect the device from the network while the firmware is upgraded. The door station will have the IP address 192.168.0.99 after restoring to default settings. The device breakdown caused by incorrect firmware upgrading is not covered by the warranty. IP Video Door Station DS03M(P) Operation User Manual...
-
Page 49: Restore
[ОК] button to confirm restoring in the opened window. Press [Х] to cancel restoring. The door station will be automatically rebooted after restoring the default settings. All the parameters, including an IP address and a current date, are set by default. IP Video Door Station DS03M(P) Operation User Manual... -
Page 50: Reboot
[Reboot]: press this button to reboot the door station. This procedure may last 1-2 minutes. Enter the administrator password and press the [ОК] button to confirm rebooting in the opened window. Press [Х] to cancel rebooting. IP Video Door Station DS03M(P) Operation User Manual... -
Page 51: System Log
The following settings are available in that menu: Date: specify the necessary search period. Per page: specify the number of lines per a log page. Press the [Search] button to start searching the events. IP Video Door Station DS03M(P) Operation User Manual... -
Page 52: Chapter 13. Alarm
The “Alarm search” menu is shown on the Picture 13.1. Pic. 13.1 This menu has a similar look and functionality as the previous one (see paragraph 12.7), excepting one difference that it is used for searching alarm events only. IP Video Door Station DS03M(P) Operation User Manual... -
Page 53: Chapter 14. Recommendations On Setting And Operation Of Ds03M(P)
Chapter 14. Recommendations on Setting and Operation of DS03M(P) Chapter 14. Recommendations on Setting and Operation of DS03M(P) IP intercom systems unite different types and configurations of equipment (PCs, laptops, microphones, speakers, etc.). Consequently, correct operation of the whole system depends on proper setting of each used device taking into account the peculiarities of their joint operation. -
Page 54: Sound Gain And Volume Adjusting
Chapter 14. Recommendations on Setting and Operation of DS03M(P) NOTE! The names of options in the OS menus may differ from the ones mentioned above. 2. Some features of functionality of the door station can be effectively used to reduce the echo feedback effect on the Client side (PC speakers). -
Page 55: Appendices
Parameter Value IP address 192.168.0.99 Subnet mask 255.255.255.0 Gateway 192.168.0.1 Username (administrator) admin Password (administrator) admin HTTP port Data port 5000 RTSP port ONVIF port 2000 NTP-server time.nist.gov time.windows.com time-nw.nist.gov time-a.nist.gov time-b.nist.gov IP Video Door Station DS03M(P) Operation User Manual... -
Page 56: Appendix B. Example Of Sip Setting
Call recipient #1: enter the IP address of the device which will receive the call (for example, PC). To apply new settings click [Save]. If the settings are correct then you will see the following window after pressing the call button of a door station: IP Video Door Station DS03M(P) Operation User Manual... -
Page 57: B2. Sip Server
RTP (the range of port numbers by default is 1024-65535). The devices need be accessible via these ports for correct SIP operation. Install and run MicroSIP. The application window is given on the Picture B1. Click Menu – Add account: Pic. B3 IP Video Door Station DS03M(P) Operation User Manual... - Page 58 If the settings are correct then you will see the following window after pressing the call button of a door station: Pic. B4 You can answer or cancel the call. The setting is finished. IP Video Door Station DS03M(P) Operation User Manual...
-
Page 59: Appendix C. Sip Hardware And Software Compatibility Lists
Asterisk 11 Asterisk 12 C2. Software Compatibility Jitsy 2.8.5426 (Windows Desktop) MicroSIP 3.12.1 (Windows Desktop) Linphone 3.9.1 (Windows Desktop, Android) C3. Hardware Compatibility Grandstream GXV3275 Video IP Phone IP Video Door Station DS03M(P) Operation User Manual... - Page 60 A wide-angle lens has a short focal length and covers a wider angle of view than standard or telephoto lenses, which have longer focal lengths. IP Video Door Station DS03M(P) Operation User Manual...
- Page 61 Complementary metal–oxide–semiconductor (CMOS) is a technology for constructing integrated circuits. CMOS technology is used in microprocessors, microcontrollers, static RAM, and other digital logic circuits. CMOS technology is also used for several analog circuits such as IP Video Door Station DS03M(P) Operation User Manual...
- Page 62 FPS (frames per second) a measure of how much information is used to store and display motion video. The term applies equally to film video and digital video. Each frame is a still image; IP Video Door Station DS03M(P) Operation User Manual...
- Page 63 ICMP is a required element of IP implementations. ICMP is a control protocol, meaning that it does not carry application data, but rather information about the status of the network itself. IP Video Door Station DS03M(P) Operation User Manual...
- Page 64 Mbit/s (Megabits per second) is a measure of the bit rate, i.e. the rate at which bits are passing a given point. Commonly used to give the “speed” of a network. A LAN might run at 10 or 100 Mbit/s. IP Video Door Station DS03M(P) Operation User Manual...
- Page 65 For example, a PC connected by a phone line to a server. Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating Point-to-Point Protocol (PPP) frames inside Ethernet frames. It is used mainly with DSL services IP Video Door Station DS03M(P) Operation User Manual...
- Page 66 Internet with a single shared network address. The subnet mask is the part of the IP address that tells a network router how to find the subnet that IP Video Door Station DS03M(P) Operation User Manual...
- Page 67 Web server is a program, which allows Web browsers to retrieve files from computers connected to the Internet. The Web server listens for requests from Web browsers and upon receiving a request for a file sends it back to the browser. IP Video Door Station DS03M(P) Operation User Manual...
- Page 68 It also controls access to the server whilst monitoring and logging server access statistics. Wireless LAN is a wireless local area network that uses radio waves as its carrier: where the network connections for end-users are wireless. The main network structure usually uses cables. IP Video Door Station DS03M(P) Operation User Manual...
