- Page 1 V I D E O S U R V E I L L A N C E Installation User Manual IP Video Door Station DS03M(P) Electronic Motorized Lock Control Multiaccessible User Operation Built-in IP Video Camera Two-Way Audio...
-
Page 2: Table Of Contents
ONFIGURING TATION ETWORK ETTINGS THROUGH THE NTERFACE 5.6. R ........36 ESTORING ETWORK ETTINGS OF TO THE REVIOUS ALUES 5.7. V ................39 ERIFYING THE ONNECTION ETTINGS APPENDIX. FACTORY DEFAULTS ....................42 IP Video Door Station DS03M(P) Installation User Manual... -
Page 3: Chapter 1. Safety Instructions
unplug the power cord and disconnect all other cords from the door station contact our Service Center. You can find contact information on our website: http://www.beward.eu/. Transportation Ttransport the door station carefully, using the original box and protective packing. IP Video Door Station DS03M(P) Installation User Manual... - Page 4 Use a soft, dry cloth for cleaning door station’s external surfaces. It is acceptable to use some detergent for removing persistent dirt, but not the volatile cleaners such as the alcohol- containing solvents, benzene and so on, because of the risk to damage the door station’s housing. IP Video Door Station DS03M(P) Installation User Manual...
-
Page 5: Chapter 2. Description

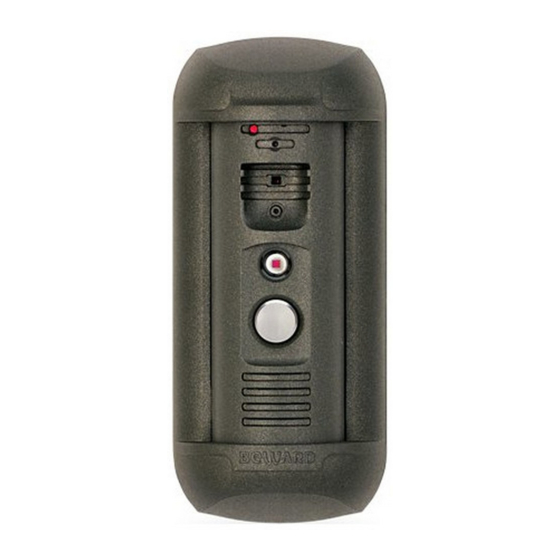

Chapter 2. Description Pic. 2.1 IP Video Door Station DS03M has a vandal resistant housing. Built-in speaker, microphone and IP camera allow establishing video and audio connection between a guest and the operator as well as watching the nearby territory. To provide operation at low light level the door station has a built-in infra-red illuminator with work distance up to 10 m. -
Page 6: Package Contents
RJ45-S01 connector (2 pcs) DS03M(C1) / DS03M(C1P) controller with terminal block CD with product documentation and software ATTENTION! Package contents and door station specification are subject to change without notice. IP Video Door Station DS03M(P) Installation User Manual... -
Page 7: Chapter 3. Overview
6 – built-in speaker: combined with the built-in microphone it provides a two-way audio channel between the operator and the guest. 7 – bracket frame: combined with a bracket plate it fixes the door station on the mounting surface. IP Video Door Station DS03M(P) Installation User Manual... -
Page 8: Controller
Chapter 3. Overview Pic. 3.2 8 – RJ45 socket: is used for connecting the door station to the DS03M(C1) or DS03M(C1P) controller by a patch cable. 9 – default button: press this button 3 times with intervals not less than 1 second during 10 seconds to set the door station by default. - Page 9 DS03M(C1P) controller) at one time is PROHIBITED! Maximum current rate provided by the DS03M(C1P) controller for power supplying of the door lock and its controller is 500 mA. If this value will be exceeded the device may operate incorrect and be damaged. The device breakdown caused by the exceeding of the maximum current rate is not covered by the warranty.
-
Page 10: Chapter 4. Door Station Installation
The door station can be connected directly to a computer or by means of a router (a switch). Pic. 4.1 The steps to be done and installation recommendations are given below in the present manual. IP Video Door Station DS03M(P) Installation User Manual... -
Page 11: Installation Recommendations
Avoid unstable installation, which may allow exposure to high vibration. This may reduce motion detection performance and image crispness in whole. The viewing direction should be clearly determined at the moment of the door station’s installation. IP Video Door Station DS03M(P) Installation User Manual... - Page 12 Minimum cable bending radius is four times the cable diameter (or 1 inch=2.5 cm) or it is also acceptable to install the cable so that the cable bending radius is 2 inches (5 cm). Maximum length of the entire segment is 100 meters. IP Video Door Station DS03M(P) Installation User Manual...
-
Page 13: Door Station Mounting
36 mm. Leave 110 mm of the cable outside (Pic. 4.3). IP Video Door Station DS03M(P) Installation User Manual... - Page 14 IP camera (rotating angles are ±45° from the middle position). Place the free cable as it is showed on the picture below: IP Video Door Station DS03M(P) Installation User Manual...
- Page 15 Step 9: fix the door station inside the bracket frame using the hexagonal socket screw and L-key from the package contents. To do so push the bracket frame down and simultaneously tighten the secret screw up (Pic. 4.6). IP Video Door Station DS03M(P) Installation User Manual...
- Page 16 (“straight-through” form). The device breakdown caused by wiring the cable in different manner is not covered by the warranty. Step 11: connect the crimped cable to the RJ45 socket (ETHERNET) of the DS03M(C1) / DS03M(C1P) controller (Pic. 3.4).
- Page 17 In this case the door station, the door lock and its controller are supplied with power by an external 12V power source. ATTENTION! Use only DC 12V power supplies recommended by BEWARD! For recommendations please visit our website (www.beward.eu). It needs to highlight that the maximum current rate provided by the power source for supplying of the door station, door lock and other equipment should not be exceeded.
- Page 18 PoE supplying. ATTENTION! Power supplying using both PoE and the «G» and «12V» pins (for DS03M(C1P) controller) at one time is PROHIBITED! 3. It is available to supply all using devices with PoE (without use of an external power source) if the total energy consumption of using electronic motorized lock and its controller is not bigger than 500 mA.
- Page 19 Pictures 4.7, 4.8. ATTENTION! Power supplying using both PoE and the «G» and «12V» pins (for DS03M(C1P) controller) at one time is PROHIBITED! Maximum current rate provided by the DS03M(C1P) controller for power supplying of the door lock and its controller is 500 mA.
-
Page 20: Wired Connection To A Network
To make a network cable, you need the following materials: a UTP category 5e cable, two RJ-45 connectors and an RJ-45 crimping tool. Assembling the pairs of wires in the correct order (see the table above) ensures data transfer speed of 100 Mbps. IP Video Door Station DS03M(P) Installation User Manual... -
Page 21: Chapter 5. Setting The Wired Connection For Windows 7
To do so, go to Start – Control Panel (Pic. 5.1). Pic. 5.1 In the opened window click on the [View network status and tasks] in the [Network and Internet] section (Pic. 5.2). IP Video Door Station DS03M(P) Installation User Manual... - Page 22 In the opened window click on the [Local Area Connection] (Pic. 5.3). Pic. 5.3 NOTE: If there are several active networks, choose the one that you are going to connect your door station to. IP Video Door Station DS03M(P) Installation User Manual...
- Page 23 In the opened window select the [Internet Protocol Version 4 (TCP/IPv4)] menu item and click the [Properties] button (Pic. 5.5). Pic. 5.5 The window opens displaying information about the network connection settings. There are two ways to configure the IP address: IP Video Door Station DS03M(P) Installation User Manual...
- Page 24 Pic. 5.6 2. Use the following IP address: an IP address is specified manually (Pic. 5.7). Pic. 5.7 Make a note of the following parameters: IP address, Subnet mask, Default gateway, DNS server. IP Video Door Station DS03M(P) Installation User Manual...
-
Page 25: Defining The Local Network Parameters When Using A Dynamic Ip Address
To define the local network settings, go to Start – Control Panel (Pic. 5.8). Pic. 5.8 In the opened window click on the [View network status and tasks] in the [Network and Internet] section (Pic. 5.9). IP Video Door Station DS03M(P) Installation User Manual... - Page 26 In the opened window click on the [Local Area Connection] (Pic. 5.10). Pic. 5.10 NOTE: If there are several active networks, choose the one that you are going to connect your door station to. IP Video Door Station DS03M(P) Installation User Manual...
- Page 27 Chapter 5. Setting the Wired Connection for Windows 7 In the opened window click the [Details] button (Pic. 5.11). Pic. 5.11 In the opened window you can see the current network connection details (Pic. 5.12). Pic. 5.12 IP Video Door Station DS03M(P) Installation User Manual...
-
Page 28: Changing The Local Network Parameters
If you are sure that your computer and your door station are on the same subnet, you can skip this paragraph and go to paragraph 5.3. To change your computer current network settings, go to Start – Control Panel (Pic. 5.13). IP Video Door Station DS03M(P) Installation User Manual... - Page 29 In the opened window click on the [View network status and tasks] in the [Network and Internet] section (Pic. 5.14). Pic. 5.14 In the opened window, click on the [Local Area Connection] (Pic. 5.15). IP Video Door Station DS03M(P) Installation User Manual...
- Page 30 NOTE: If there are several active networks, choose the one that you are going to connect your door station to. In the opened window, click the [Properties] button (Pic. 5.16). Pic. 5.16 IP Video Door Station DS03M(P) Installation User Manual...
- Page 31 192.168.0.20, and 255.255.255.0 in the [Subnet mask] field. You can skip the other parameters (Pic. 5.18). Pic. 5.18 Click the [OK] button in the all opened windows to save the changes. IP Video Door Station DS03M(P) Installation User Manual...
-
Page 32: Accessing The Door Station Using Internet Explorer
To work with the door station’s web interface you need to install the ActiveX add-on. You will see a system notification at the bottom of the window: “This webpage wants to run the following add-on: “AxMediaControl ActiveX Control Module” from “BEWARD Co., Ltd”. (Pic. 5.20). - Page 33 Installation of ActiveX components is possible for 32-bit Internet Explorer only. On default, Internet Explorer security system blocks ActiveX components installation. Click [Install] to continue (Pic. 5.21). Pic. 5.21 Then you will see the following window (Pic. 5.22): IP Video Door Station DS03M(P) Installation User Manual...
- Page 34 In this case you will see an additional system notification. To permit installation you should give a positive answer in the appeared window. Open IE, enter the door station’s IP address and press [Enter]. Enter the username and the password, then click [Login] (Pic. 5.25). IP Video Door Station DS03M(P) Installation User Manual...
- Page 35 Chapter 5. Setting the Wired Connection for Windows 7 Pic. 5.25 If everything was done correctly, you get video from the door station’s camera on your display (Pic. 5.26). Pic. 5.26 IP Video Door Station DS03M(P) Installation User Manual...
-
Page 36: Configuring Door Station Network Settings Through The Web Interface
Contact your system administrator if you need help. Click [Save] to save the changes. After rebooting the door station will be available on the IP address you specified. Configuring the door station’s network settings is completed. IP Video Door Station DS03M(P) Installation User Manual... -
Page 37: Restoring Network Settings Of Pc To The Previous Values
Go to Start – Control Panel (Pic. 5.28). Pic. 5.28 In the opened window, click on the [View network status and tasks] in the [Network and Internet] section (Pic. 5.29). Pic. 5.29 IP Video Door Station DS03M(P) Installation User Manual... - Page 38 In the opened window, click on the [Local Area Connection] (Pic. 5.30). Pic. 5.30 In the opened window, click the [Properties] button (Pic. 5.31). Pic. 5.31 Select the [Internet Protocol Version 4 (TCP/IPv4)] menu and click the [Properties] button (Pic. 5.32). IP Video Door Station DS03M(P) Installation User Manual...
- Page 39 (see paragraphs 5.1, 5.1.1). If the IP settings were assigned automatically, use the [Obtain an IP address automatically] and the [Obtain DNS server address automatically] options (Pic. 5.33), then click [OK]. Pic. 5.33 IP Video Door Station DS03M(P) Installation User Manual...
-
Page 40: Verifying The Connection Settings
To launch Internet Explorer go to Start – All Programs and click [Internet Explorer]. Enter the IP address of your door station in the address field (e.g. http://192.168.0.99) (Pic. 5.35). Pic. 5.35 IP Video Door Station DS03M(P) Installation User Manual... - Page 41 [OK] (Pic. 5.36). ATTENTION! The default username is admin, the default password is admin. Pic. 5.36 If everything was done correctly, you will see the video image on your display (Pic. 5.37). IP Video Door Station DS03M(P) Installation User Manual...
- Page 42 Pic. 5.37 NOTE: If the video image is not appeared on your display, return to the chapter’s beginning and check the setting step by step. Contact your system administrator if you need assistance. IP Video Door Station DS03M(P) Installation User Manual...
-
Page 43: Appendix. Factory Defaults
Appendix. Factory Defaults Appendix. Factory Defaults Parameter Value IP address 192.168.0.99 Subnet mask 255.255.255.0 Gateway 192.168.0.1 Username (administrator) admin Password (administrator) admin HTTP port Data port 5000 RTSP port ONVIF port 2000 IP Video Door Station DS03M(P) Installation User Manual...
