Summary of Contents for Beward DS06M
- Page 1 V I D E O S U R V E I L L A N C E Operation User Manual IP Video Door Station DS06M(P) Electronic Motorized Lock Control Multiaccessible User Operation Built-in IP Video Camera Two-Way Audio...
-
Page 2: Table Of Contents
ATABASE 12.3.E ..........................60 VENTS CHAPTER 13. CONFIG: SYSTEM ....................61 13.1. S ........................61 YSTEM 13.2. S ........................62 YSTEM 13.3. A ......................... 63 CCESS OLICY 13.4. U .......................... 64 PGRADE IP Video Door Station DS06M(P) Operation User Manual... - Page 3 ESTORE 13.6. R ..........................67 EBOOT 13.7. S ........................68 YSTEM CHAPTER 14. ALARM ........................69 CHAPTER 15. RECOMMENDATIONS ON SETTING AND OPERATION OF DS06M(P) ....70 15.1. A ..................70 COUSTIC ANCELLATION 15.2. S ................71 OUND AIN AND...
-
Page 4: Chapter 1. Safety Instructions
Do the following: Unplug the power cord and disconnect all other cords from the door station. Contact our Service Center. You can find our contact information on our website: http://www.beward.ru/. IP Video Door Station DS06M(P) Operation User Manual... - Page 5 Use a soft dry cloth to clean the surface of the device. To remove obstinate stains, apply a small amount of detergent on the cloth, then wipe the surface dry Do not use volatile solvents (alcohol-containing products, Benzene etc.) to avoid damaging the door station housing. IP Video Door Station DS06M(P) Operation User Manual...
-
Page 6: Chapter 2. General Info

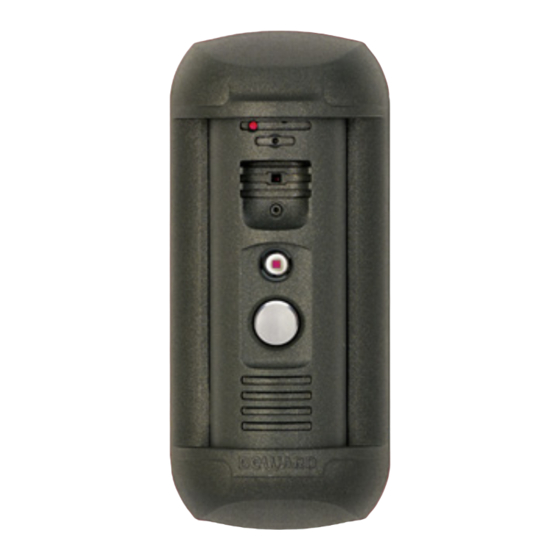

Chapter 2. General Info 2.1. BEWARD DS06M(P) door station overview DS06M(P) IP Video Door Station is designed for organizing IP intercome systems based on already existing local networks without using any additional equipment (e.g. separate internal monitors). To start using the door station you only have to install the software from the disk and set it up. -
Page 7: Key Features
Package contents and device specification are subject to change without notice 2.1.3. Default Settings IP address: 192.168.0.99 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 Username: admin Password: admin HTTP port: 80 IP Video Door Station DS06M(P) Operation User Manual... -
Page 8: Purpose Of This Manual
Data Port: 5000 2.2. Purpose of this Manual BEWARD DS06M(P) door station can be used as a video surveillance device with a built-in web server and a web interface. You can view the video broadcast by this device via the standard internet browser or via the free software included in the CD (Also can be downloaded from App Store and Play Market). -
Page 9: Minimum System Requirements
Windows 7 Professional и Internet Explorer 11.0 are used in this Manual (though in some screenshots other OS and browser version may be depicted). In other OS and browsers some menu names may differ. IP Video Door Station DS06M(P) Operation User Manual... -
Page 10: Chapter 3. Getting Started
Step 3: To work with the web interface you need to install the ActiveX add-on. You will see the following system notification at the bottom of the window: “This webpage wants to run the following add-on: “AxMediaControl ActiveX Control Module” from “BEWARD Co., Ltd” IP Video Door Station DS06M(P) Operation User Manual... - Page 11 Step 4: By default, the Internet Explorer security system will block the ActiveX installation. Click [Install] to continue (Pic. 3.3). Pic. 3.3 Step 5: Close Internet Explorer and click [OK] in the Warning window (see Pic 3.4) if it pops IP Video Door Station DS06M(P) Operation User Manual...
- Page 12 To do so you need to press and hold the reset button 3 times for 10 seconds with 1 second pauses between each press IP Video Door Station DS06M(P) Operation User Manual...
- Page 13 Chapter 3: Getting Started Pic. 3.7 If successful, you will start receiving the videostream from the door station camera (Pic. 3.8). Pic. 3.8 IP Video Door Station DS06M(P) Operation User Manual...
-
Page 14: Main Window (Live View)
The following functions are available in the [Live View] tab: Choose Main/Sub video stream., Snapshot. Video recording, “Talk” and “Listen” modes, Zoom, Full Screen mode, “Width:Height” mode, Original resolution and Image settings. IP Video Door Station DS06M(P) Operation User Manual... - Page 15 W:H: Press this button to apply the correct width to height ratio to the livestream display. Original: Press this button to display the livestream at the original resolution. If the image is too big to fit the screen, you can use the scrollbars to navigate. IP Video Door Station DS06M(P) Operation User Manual...
- Page 16 Chapter 3: Getting Started Image: Use this toolbar to adjust the following parameters: «Brightness», «Contrast», «Hue», «Saturation». If you want to restore to the default parameters, click [Default] (Pic. 3.12). Pic 3.12 IP Video Door Station DS06M(P) Operation User Manual...
-
Page 17: Chapter 4. Replay
File list: The search results are listed here in chronological order Play]: Select a file in the File List and press this button to play it. You can use the following toolbar (see Pic. 4.2). Pic. 4.2 IP Video Door Station DS06M(P) Operation User Manual... - Page 18 [Start]: Start saving files. [Stop]: Stop saving files. Note! In Windows 7 (and later OS version) you may have to run Internet Explorer as administrator to ensure that the web interface player is working properly. IP Video Door Station DS06M(P) Operation User Manual...
-
Page 19: Chapter 5. Config: Local Config
Make sure that you the rights to create new objects in the archive folder. Otherwise you will be unable to save files. In Windows 7 you need to run Internet Explorer as administrator to save files in the local disk. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 20: Chapter 6. Config: Audio
Adjusting the Input Volume and Output Volume parameters will affect the work of the device and may cause defects (interrupted speech, echo, etc.) Adjust these parameters only when it is strongly necessary.. Press [Save].to apply new settings IP Video Door Station DS06M(P) Operation User Manual... -
Page 21: Chapter 7. Config: Video
(displayed in parenthesis after the title). You can also change positions of the text elements. To do so use . (top row for title, bottom row for everything else). Press [Save].to apply new changes IP Video Door Station DS06M(P) Operation User Manual... -
Page 22: Video Coding
Quality: “Basic”/”Normal”/”Fine”. NOTE: You can change quality only if the «Advanced» option is disabled. Advanced: Enabling this option grants access to the following parameters. : Rate control: Choose the type of bitrate control: IP Video Door Station DS06M(P) Operation User Manual... - Page 23 Sub stream: «I-frame» – 50, «Frame rate» – 25 fps, «Rate control» – VBR, «Bitrate» – 512 kbit/s [WAN]: «I-frame» – 25, «Frame» – 5 fps, «Rate control» – VBR, «Bitrate» – 384 kbit/s. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual...
-
Page 24: Privacy Mask
[Set the mask]: Click this button and then press and hold the left mouse button selecting the necessary area. Up to 4 mask areas can be set up. [Full screen]: Click to mask the whole screen. [Clear]: Remove all mask area. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 25: Image
(available value range: 0~255). Moving the sliders will change the image immediately. To reset parameters to default, click their corresponding icons) White Balance: Set automatically by default, but manual adjustment via the red, green and blue sliders is also available.. IP Video Door Station DS06M(P) Operation User Manual... - Page 26 Light Sensor: «Day» and «Night» modes will switch via the built-in light sensor. Set the operation mode in the drop-down list below. “Day – Night”- Day mode in high external IP Video Door Station DS06M(P) Operation User Manual...
- Page 27 IR optimizer: Allows for facial recognition at nighttime by making sure that there is no excessive IR LED light at the center of the image. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual...
-
Page 28: Chapter 8. Config: Network Settings
Your router must support map mapping in order for this function to work. Upnp server – IP address of the server that will automatically forward ports behind NAT Address Press [Save] to save new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 29: Lan
IP addresses in the network must be unique when assigning an IP address to the door station. Applying new settings in the “LAN” menu requires a reboot. ATTENTION! After changing the network settings the IP door station will automatically reboot . Press [Save].to apply new settings IP Video Door Station DS06M(P) Operation User Manual... -
Page 30: Pppoe
IP address: IP address or domain name of the PPPoE server (given by the server) Username: enter your username for the PPPoE connection. Password: enter your password for the PPPoE connection. Online Time: Duration of connection. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 31: Upnp
The “UPnP” settings menu is shown below Pic. 8.4 Enable UPnP: enable\disable network detection via UPnP Device name: Name that will be displayed in UPnP search results. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 32: E-Mail
SMTP Password enter your password to access the SMTP server. SMTP port: enter the port number of the SMTP server (default value – 25). SSL: enable if your Internet provider requires SSL. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 33: Ftp
Port from /to: Range of ports to access the FTP server. NOTE: Make sure you have enough rights to save files to the FTP server in use Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 34: Ddns
Update Interval: set the interval at which the device will update IP address on the DDNS server after IP address change. External IP: external IP address of the door station defined by your Internet provider. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 35: Pptp
<Y> – command of the video stream profile: 0 – main stream, 1 – sub stream. Request example: rtsp://192.168.0.99:554/av0_0. The coding type for the video stream is specified in the coding settings. IP Video Door Station DS06M(P) Operation User Manual... - Page 36 Packet Size: set the size of the data packet. Default value: 1460. RTP multicast: broadcast settings for audio and video streams in multicast networks Press [Save] to apply new settings. ATTENTION! RTP multicast should be supported by your router. IP Video Door Station DS06M(P) Operation User Manual...
-
Page 37: Https
Pressing this button will open a new window where you can upload your certificate. Choose the certificate file (“.pem”) and click [Upload]. The certificate must match the request because the data are compared during installing. IP Video Door Station DS06M(P) Operation User Manual... - Page 38 HTTPS Connection Policy: select protocol in use. Available protocols: HTTP, HTTPS, HTTP & HTTPS. If you are using port forwarding on your router, please note TCP Port 443 is used for the HTTPS protocol. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual...
-
Page 39: Sip
Username/Password: used to register the door station in the SIP server. This field is empty by default SIP port: Number of the port used for interactions with a SIP user agent. Default number - 5060. IP Video Door Station DS06M(P) Operation User Manual... - Page 40 For example, the door will open when the specified phone button is pressed. Up to 3 DTMF symbols are available (0-9, #, *). These fields are empty by default. IP Video Door Station DS06M(P) Operation User Manual...
- Page 41 0-9, #, *) used to enable sound transmission from the recipient to the guest. Stop calling on beginning the talk via SW: Automatically end calls, if the recipient answered with the use of Beward software or compatible applications. End SIP session by pressing “Call” button: Enables the subscriber on the door station side to end the SIP session by pressing the “Call”...
-
Page 42: Modbus
Use the Modbus protocol to connect to compatible equipment. Enable: enable\disable Modbus. TCP port: number of the port for the Modbus protocol. Default number – 502. Click [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 43: Camdrive
The “CamDrive” settings menu is shown below: Pic. 8.13 Enable: press the checkbox click [Save] to connect to the CamDrive service. The door station will restart and all fields in this menu will be filled in (Pic. 8.14). IP Video Door Station DS06M(P) Operation User Manual... - Page 44 Uncheck the “Enable” box and click [Save] to disconnect from CamDrive. The device will restart and all unavailable function will become available again. ATTENTION! Disconnecting from the service will erase files stored in the SD card in CamDrive mode. IP Video Door Station DS06M(P) Operation User Manual...
-
Page 45: Http Event
Authorization: enable authorization for sending notifications Username: enter username for authentication. Maximum length is 20 symbols, including upper case letters and the following symbols: «!», «@», «#», «$», «*», «_», «-», «,», «.». IP Video Door Station DS06M(P) Operation User Manual... - Page 46 [Test]: Click to check if the data you entered is correct. The HTTP request will be sent to the specified address. Click [Save] to apply new settings HTTP event examples 1) When motion detection is activated (see paragraph 10.1): Pic. 8.16 IP Video Door Station DS06M(P) Operation User Manual...
- Page 47 Notifications will not be sent if the HTTP event server is not set or disabled A HTTP request with additional parameters is made as follows: ”Additional ”Additional value” http://<”Hostname”>?< parameter” >=< >&<”HTTP event”>HTTP/1.0 A HTTP request without additional parameters is made as follows: http://<”Hostname”>?<”HTTP event”>HTTP/1.0 IP Video Door Station DS06M(P) Operation User Manual...
-
Page 48: Chapter 9. Config: Record Settings
The device does not support memory cards with several partitions after formatting. ATTENTION! The overwrite function is enabled by default. If the memory card is full. old files are automatically deleted to make space for new files IP Video Door Station DS06M(P) Operation User Manual... -
Page 49: Video Recording
Time 1/2: Set schedule for video recording. Two schedules are available. Stream type: choose between the main or sub streams used for recording. NOTE: «Stream Type» also applies to video recording on alarm. Press [Save] to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 50: Snapshotting
E-mail. You can find the files in the memory card as well. Time 1/2: set the schedule for snapshotting. Two schedules are available. Resolution: select resolution for snapshots NOTE: «Resolution» also applies to snapshotting on alarm. Press [Save].to apply new settings IP Video Door Station DS06M(P) Operation User Manual... -
Page 51: Chapter 10. Config: Alarm Settings
E-mail notification: enable/disable e-mail notifications for motion detection triggers. Snapshot: activate snapshotting for motion detection triggers. Specify the amount of snaps in the field to the right. Snap interval: set the time interval between snapshots. IP Video Door Station DS06M(P) Operation User Manual... - Page 52 If there is no memory card installed, the inner buffer (~1mb) of the door station will be used instead. The duration of video files will vary from 1 to several seconds, depending on the bitrate value Press [Save].to apply new settings IP Video Door Station DS06M(P) Operation User Manual...
-
Page 53: Call Button
Record: enable/ disable video recording when the call button is pressed. Record time: set the duration for video files. FTP: set the FTP server as a destination for recorded video files. If disabled, the memory card will be used instead. IP Video Door Station DS06M(P) Operation User Manual... -
Page 54: Connection Loss
Record time: set the duration for recorded video files. NOTE: In case of connection loss snapshots and video files can only be recorded if the memory card is installed! Press [Save].to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 55: Chapter 11. Config: Controller
12). The door opens if a face is successfully recognized. Night Mode IR LED: IR LED has 2 operating modes – «Always enabled» and «On request». The «On request» mode is active by default. IP Video Door Station DS06M(P) Operation User Manual... - Page 56 Press the “LINK” button on the controller (refer to the Installation Manual for details) and press the [Connect] button. The interaction process will takes about 1 minute. Do not turn off or restart the door station during the interaction process. Press [Save].to apply new settings IP Video Door Station DS06M(P) Operation User Manual...
-
Page 57: Chapter 12. Config: Facial Recognition
NOTE: 3.1.0.0.6.18) Facial recognition is only available for DS06M, DS06M and DS06MP (firmware version - By default, the facial recognition is initiated when a visitor pushes and holds (during 1 second) the call button of the door station. In the process of analyzing visitor’s face the door station emits a sound during the one a visitor should stand still and look into the lens of the door station camera. -
Page 58: Settings
Enable Facial recognition – enable the facial recognition function. NOTE: The function is only available on the DS06M door stations with an SD card inserted. Recognition sound indication – enable emitting sound signals (recognized/unrecognized, face analysis) by the door station. -
Page 59: Face Image Database
Duration of the Learning mode is specified in the Learning time field. Face images area – face images of the chosen person are situated in this area. IP Video Door Station DS06M(P) Operation User Manual... - Page 60 Stand still and look directly into the lens of the door station camera while it captures your face until you will hear the sound signal. Make 2-3 images with different positions of the face (see the picture below). Pic. 12.3 IP Video Door Station DS06M(P) Operation User Manual...
-
Page 61: Events
If some face image is removed from the database, then it is marked as “Removed” in the event list. If no images are found in the database to be matched with the currently captured face image, then the visitor is marked as ”Not found”. IP Video Door Station DS06M(P) Operation User Manual... -
Page 62: Chapter 13. Config: System
Firmware Version: the current installed version of firmware for this device. Build Date: the date when the firmware was built. Web UI Version : the current installed version of the web interface. Press [Save] to apply new settings IP Video Door Station DS06M(P) Operation User Manual... -
Page 63: System Time
(“Week” type). Start / End Time: set the time of advancing and backward adjusting. DST Bias: set a size of the time shift. Press the [Save] button to apply new settings. IP Video Door Station DS06M(P) Operation User Manual... -
Page 64: Access Policy
The length of username and password vary from 1 to 15 symbols which may include Latin letters (A-Z, a-z), figures from 0 to 9 and a dot (.). IP Video Door Station DS06M(P) Operation User Manual... -
Page 65: Upgrade
For this purpose, go to the menu Tools – Internet options – Security and press the [Custom level] button. Find the item “Include local directory path when uploading files to a server” in the opened window and select “Enable” (Pic. 13.5). IP Video Door Station DS06M(P) Operation User Manual... - Page 66 Do not disconnect the device from the network while the firmware is upgraded. The door station will have the IP address 192.168.0.99 after restoring to default settings. The device breakdown caused by incorrect firmware upgrading is not covered by the warranty IP Video Door Station DS06M(P) Operation User Manual...
-
Page 67: Restore
(Network Settings – LAN) without changing. The door station will be automatically rebooted after restoring the default settings. All the parameters, including an IP address and a current date, are set by default. IP Video Door Station DS06M(P) Operation User Manual... -
Page 68: Reboot
[Reboot]: press this button to reboot the door station. This procedure may last 1-2 minutes. Enter the administrator password and press the [OK] button to confirm rebooting in the opened window. Press [Х] to cancel rebooting. IP Video Door Station DS06M(P) Operation User Manual... -
Page 69: System Log
The log starts recording information automatically after the device is switched on. Date: specify the necessary search period. Per page: specify the number of lines per a log page. Press the [Search] button to start searching the events. IP Video Door Station DS06M(P) Operation User Manual... -
Page 70: Chapter 14. Alarm
The “Alarm Log” menu is shown below: Pic. 14.1 This menu has a similar look and functionality as the “System Log” menu (see paragraph 13.7 ), except this menu is used for searching alarm events only . IP Video Door Station DS06M(P) Operation User Manual... -
Page 71: Chapter 15. Recommendations On Setting And Operation Of Ds06M(P)
Chapter 15. Recommendation on Setting and Operation of DS06M(P) Chapter 15. Recommendations on Setting and Operation of DS06M(P) IP intercom systems include different types and configurations of equipment (PCs, laptops, microphones, speakers, etc.). Consequently, correct operation of the whole system depends on proper setting of each device used taking into account the peculiarities of their joint operation. -
Page 72: Sound Gain And Volume Adjusting
Chapter 15. Recommendation on Setting and Operation of DS06M(P) NOTE! The names of options in the OS menus may differ from the ones mentioned above. 2. Some features of functionality of the door station can be effectively used to reduce the echo feedback effect on the Client side (PC speakers). -
Page 73: Appendices
It is recommended to clean the camera lens once a month by using a cotton swab (3mm) soaked in industrial alcohol Pic. B1 If regular cleaning is not performed the image quality will deteriote. IP Video Door Station DS06M(P) Operation User Manual... -
Page 74: Sip Settings Example
Number: enter the door station IP address. Call recipient #1: enter the IP address of the device which will receive the call (for example, PC). To apply new settings click [Save] (Pic. C2). IP Video Door Station DS06M(P) Operation User Manual... - Page 75 If the settings are correct then you will see the following window after pressing the call button of a door station: Pic. C3 You can answer or cancel the call. Setting the SIP direct connection is finished. IP Video Door Station DS06M(P) Operation User Manual...
-
Page 76: C2. Sip Server
Login: username for authentication. Password: your account password. STUN server: enter the STUN server address to access via NAT. If necessary you can also enter additional parameters. To apply new settings click [Save]. IP Video Door Station DS06M(P) Operation User Manual... - Page 77 Call recipient #1: enter the SIP number of the device which will receive the call (for example, SIP number of a PC). STUN IP: enter the STUN server address to access via NAT. To apply new settings click [Save] (Pic. C5). Pic. C5 IP Video Door Station DS06M(P) Operation User Manual...
- Page 78 If the settings are correct then you will see the following window after pressing the call button of a door station: Pic. С6 You can answer or cancel the call. The setting is finished IP Video Door Station DS06M(P) Operation User Manual...
-
Page 79: Sip Hardware And Software ( For Transmitting Video And Sound Via Sip)
Jitsy 2.8.5426 (Windows Desktop, Mac OS X, Linux) MicroSIP 3.12.1 (Windows Desktop) Linphone 3.9.1 (Windows Desktop, Android) Grandstream Wave (Android, iOS) D3. Hardware Compatibility Grandstream GXV3240, GXV3275 videophones Yealink SIP VP-T49G IP Video Door Station DS06M(P) Operation User Manual... -
Page 80: Appendix E. Glossary
ARP (Address Resolution Protocol) is used to associate an IP address to a hardware MAC address. A request is broadcast on the local network to discover the MAC address for an IP address. IP Video Door Station DS06M(P) Operation User Manual... - Page 81 CMOS technology is used in microprocessors, microcontrollers, static RAM, and other digital logic circuits. CMOS technology is also used for several analog circuits such as image sensors (CMOS sensor), data converters, and highly integrated transceivers for many types of communication. IP Video Door Station DS06M(P) Operation User Manual...
- Page 82 The term applies equally to film video and digital video. Each frame is a still image; displaying frames in quick succession creates the illusion of motion. The more frames per second (fps), the smoother the motion appears. IP Video Door Station DS06M(P) Operation User Manual...
- Page 83 ICMP is a required element of IP implementations. ICMP is a control protocol, meaning that it does not carry application data, but rather information about the status of the network itself. IP Video Door Station DS06M(P) Operation User Manual...
- Page 84 Mbit/s (Megabits per second) is a measure of the bit rate, i.e. the rate at which bits are passing a given point. Commonly used to give the “speed” of a network. A LAN might run at 10 or 100 Mbit/s. IP Video Door Station DS06M(P) Operation User Manual...
- Page 85 For example, a PC connected by a phone line to a server. Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating Point-to-Point Protocol (PPP) frames inside Ethernet frames. It is used mainly with DSL services IP Video Door Station DS06M(P) Operation User Manual...
- Page 86 (LAN). Having an organization network divided into subnets allows connected Internet with single shared network address. The subnet mask is the part of the IP address that tells a network router how to find the subnet that IP Video Door Station DS06M(P) Operation User Manual...
- Page 87 Web server is a program, which allows Web browsers to retrieve files from computers connected to the Internet. The Web server listens for requests from Web browsers and upon receiving a request for a file sends it back to the browser. IP Video Door Station DS06M(P) Operation User Manual...
- Page 88 It also controls access to the server whilst monitoring and logging server access statistics. Wireless LAN is a wireless local area network that uses radio waves as its carrier: where the network connections for end-users are wireless. The main network structure usually uses cables. IP Video Door Station DS06M(P) Operation User Manual...
