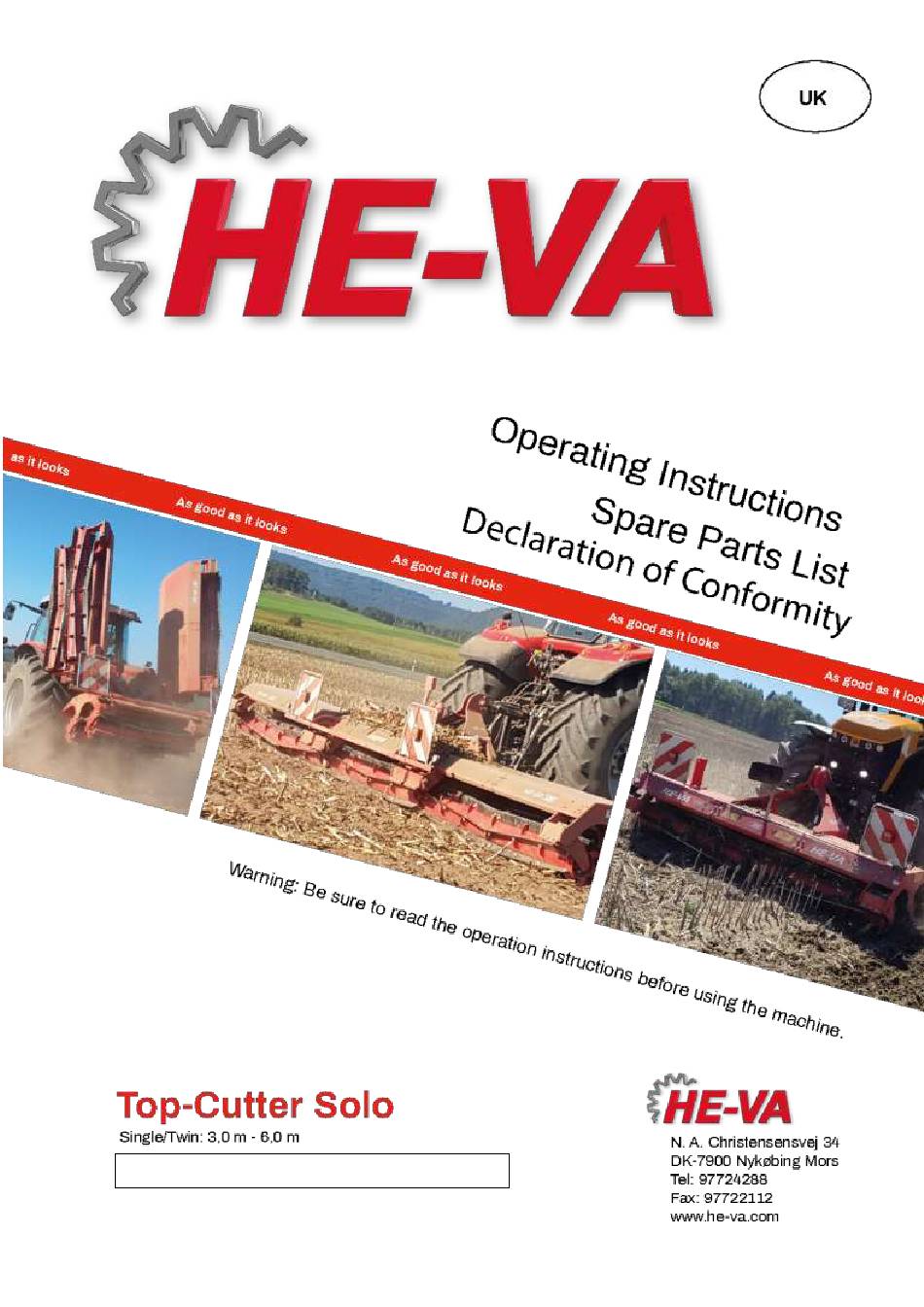

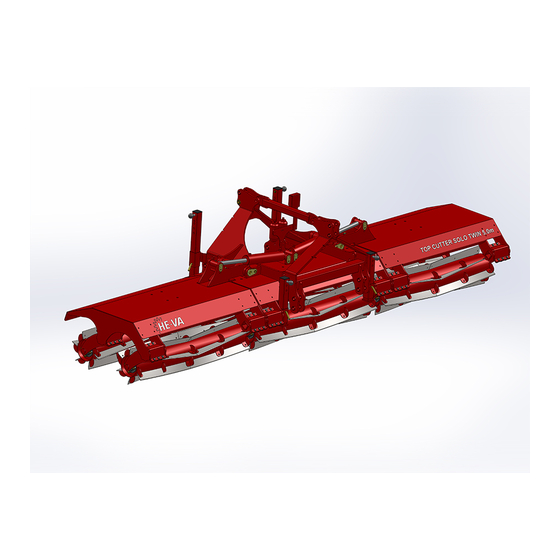

- Page 1 Manual no. 8000421-01 010421...
-
Page 2: Table Of Contents
Contents EC DECLARATION OF CONFORMITY..................3 Delivery Check ............................ 4 Machine description ..........................4 Technical specifications ........................4 Working with the Top-Cutter Solo ...................... 5 Safety around the Top-Cutter Solo ...................... 6 Safety Instructions, regarding Hydraulic System ................7 Markings on the machine ........................8 Maintenance ............................ -
Page 3: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY in accordance with the EU Machinery Directive 2006/42/EC applicable as from December 29 2009: HE-VA ApS N. A. Christensensvej 34, DK-7900 Nykøbing Mors hereby confirms that the following machine has been manufactured in accordance with the Council Directive 2006/42/EC. -
Page 4: Delivery Check
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Delivery Check Check the Top-Cutter for any damage when it is received at either the dealer and the final customer. Check that the frame construction has not been exposed to impacts. Check the hydraulic hoses, at hydraulic models, for cuts and squeezing damages. -
Page 5: Working With The Top-Cutter Solo
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Oil pressure Minimum 170 bar Hydraulic outlets 1 double acting Quick couplings, standard Sterling type E 402 Hydraulic oil: The machine is filled with Hydro Texaco HD32 Working with the Top-Cutter Solo The area must be dry and firm to achieve the best result. -
Page 6: Safety Around The Top-Cutter Solo
Safety around the Top-Cutter Solo Do not operate the machine, if any people are at risk in the dangerous area. When persons are at risk in the dangerous area (e.g. when doing adjustments, maintenance or connect or disconnecting), the following points must be met: •... -
Page 7: Safety Instructions, Regarding Hydraulic System
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Safety Instructions, regarding Hydraulic System • The highest allowable pressure, is 225 bar. • It is recommended to mark the hydraulic connections between the implement and tractor, to avoid incorrect operation! •... -
Page 8: Markings On The Machine
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Markings on the machine Several markings are located on your machine, which contains safety regulations and other instructions to inform about correct operating. Please read these instructions carefully, and make the driver aware about the markings and safety regulations in this Operating Instructions. -
Page 9: Maintenance
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Maintenance After 10 hours of operation, tightening of wheels, bearings and stop rings must be done. If this is not respected our warranty will lapse. Maximum torque in Nm. w/lubricated thread Metric thread Quality 8.8 Quality 10.9... -
Page 10: Spare Parts List
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Spare Parts List Rigid Single model 3,0 - 4,0m Back to the table of contents... - Page 11 Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Pos. Part no. Description 3,0m 4,0m 1330881 Main frame 3,0m Main frame 4,0m 7455000 Top-Cutter rotor L=2930 with knifes Top-Cutter rotor L= with knifes 1330243 Carrier arm left 1330242 Carrier arm right 1330884...
-
Page 12: Singel Modeller 4,0 - 5,0 - 6,0M Complete Machine
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Singel modeller 4,0 - 5,0 - 6,0m complete machine Pos. Part no. Description 4,0m 5,0m 6,0m 1330661 Middle section with A-frame 1330868 Side secton left 1330665 Side secton left Side secton left 1330859 Side section right... -
Page 13: Middle Section Single 4,0 - 5,0 - 6,0M
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Middle section Single 4,0 - 5,0 - 6,0m Pos. Part no. Description 1330662 Middle frame 7455120 Top-Cutter rotor L = 1670 mm 1330242 Carrier arm right 1330243 Carrier arm left 1330435 Screen middle rear 1330688... -
Page 14: Ving Section Single 4,0 - 5,0 - 6,0M
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Ving section Single 4,0 - 5,0 - 6,0m Pos. Part no. Description 1330867 Wing left 1330666 Wing left Wing left 1330858 Wing right 1330664 Wing right Wing right 1330242 Carrier arm right 1330243... -
Page 15: Twin Models 4,0 - 5,0 - 6,0M Complete Machine
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 7455007 Knife bracket left, mounted by welding 7455010 Knife bracket middle, mounted by welding 7455011 (Made out of 2 parts) 7455009 Knife bracket right, mounted by welding Twin models 4,0 - 5,0 - 6,0m complete machine Pos. -
Page 16: Middle Section Twin 4,0 - 5,0 - 6,0M
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Middle section Twin 4,0 - 5,0 - 6,0m Pos. Part no. Description Qty. 1330640 Middle frame 1330703 Middle screen front 1330242 Carrier arm right 1330243 Carrier arm left 7455120 Top-Cutter roller L = 1670 mm front 7455132... -
Page 17: Wing Section Left Twin 4,0 - 5,0 - 6,0M
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Wing section left Twin 4,0 - 5,0 - 6,0m Pos. Part no. Description 1330651 Wing left 1330649 Wing left 1330647 Wing left 1330650 Wing right 1330648 Wing right 1330643 Wing right 1330242... -
Page 18: Carrier Arm For Roller
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 0475100 Bushing Ø40/Ø44 L=40 0236390 Bolt M24x80 8.8 fzb 0261425 Nut M24 galvanized 7455007 Knife bracket left, mounted by welding 7455010 Knife bracket middle, mounted by welding 7455011 (Made out of 2 parts) 7455009 Knife bracket right, mounted by welding... -
Page 19: Knife Overview
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Knife overview Direction of travel This row of rollers only on Twin Models → Single 4,0 m 7455128 7455127 7455123 7455122 7455128 7455127 5,0 m 7455074 7455073 7455123 7455122 7455074... -
Page 20: Support Leg
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 7455142 Rear left L = 531 (Only Twin) 7455073 Front right L = 780 7455074 Front left L = 780 7455158 Rear right L = 780 (Only Twin) 7455159 Rear left L = 780 (Only Twin) -
Page 21: Overview Additonal Equipment Twin 4,0 - 5,0 - 6,0M
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Overview additonal equipment Twin 4,0 - 5,0 - 6,0m Pos. Part no. Description Qty. Basic machine 1330676 3-point linkage for rear mounting 1330708 Toplink for 3-point linkage rear mounting 1330534 Light bar with marker lights and reflecters 1330406... -
Page 22: Weight Plates With Assembly Parts
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Weight plates with assembly parts Pos. Part no. Description Qty. 1330718 Weight plates, max pcs. each meter workwidth are 3 0382852 U-bolt M16x100x200x100 0272290 Facet washer Ø16 DIN125B 0264090 Self-locking nut M16 0236315... -
Page 23: Material Damper Guard Single/Twin Models
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Material damper guard Single/Twin models For rigid model For hydraulic model Pos. Part no. Description 1330559 Rubber plate 3000 mm 1330760 Mounting bar 50x8 L=760 1330759 Mounting bar 50x8 L=1000 0434790 Bolt M8x40 fzb 0272250... -
Page 24: Led - Light
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 LED – light Pos. Part no. Description Qty. 1330763 Light bar right/left 690160074 Reflector complete 7357504 Rear light complete 1330836 Bracket for light bar left 1330839 Bracket for light bar right 1330838 Bracket for light bar left 1330841... -
Page 25: Notes
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Notes Back to the table of contents... -
Page 26: Hydraulic
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Hydraulic All hydraulic models Back to the table of contents... - Page 27 Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Pos. Part no. Description Qty. 7345125 Cylinder 90/40 x 400 ø35/35 690206410 Accumulator H700R 40 bar 690203097 Fitting straight M18x1,5x10 0442052 Manometer Manometer fitting Ø12x1/4” 690206825 Ball valve 3/8” 0442350 Fitting straight Ø10 x 3/8”...
- Page 28 The design is subject to modification without notice.
