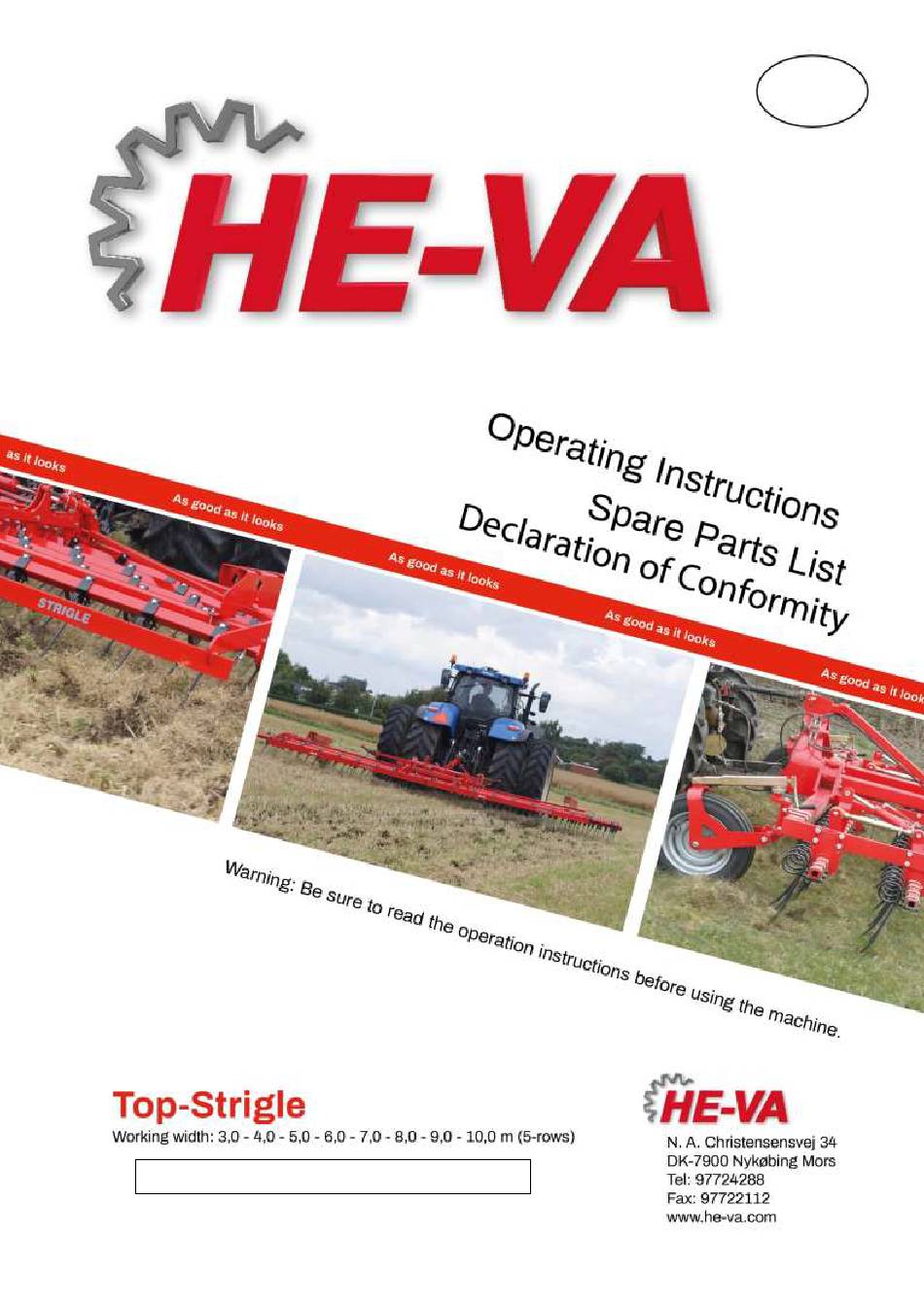

- Page 1 Manual no. 8000121-07 251021 Back to the table of contents...
-
Page 3: Table Of Contents
Light bar 9,0 - 10.0 meter ..........................20 LED - Lighting set ............................21 Turbo-Disc ..............................22 Hydraulics ................................ 24 5,0 - 8,0 meter 5 bar Top-Strigle........................24 Folding 9,0 - 10,0m ............................26 Tine angel 9,0 - 10,0 m ..........................27... -
Page 4: Ec Declaration Of Conformity
DK-7900 Nykøbing Mors hereby confirms that the following machine has been manufactured in accordance with the Council Directive 2006/42/EC. The declaration comprises the following machines: Top-Strigle with 5 bars 3,0m – 4,0m rigid 4,0m – 10,0m hydraulic Nykøbing the 28th february 2011 Villy Christiansen The undersigned is furthermore authorised to compile technical documentation for the above machine. -
Page 5: Delivery Check
Machine description The Top-Strigle is a 5 bar strigle which is suitable for aeration of pasture or spreading out heaps of straw as well as making seeds from weeds and wasted grain germinate. The machine can only be delivered as tail mounted option. -
Page 6: Technical Specifications
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Technical specifications Transport Transport- No. of Working width Tine size Weight in kg width height tines requirement 3,0m rigid 3050 1500 95-115 4,0m rigid 4050 1500 110-135 1170 4,0m hydr. 1500 2100... -
Page 7: Safety Around The Top-Strigle
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Safety around the Top-Strigle Do not operate the machine, if any people are at risk in the dangerous area. When persons are at risk in the dangerous area (e.g. when doing adjustments, maintenance or connect or disconnecting), the following points must be met: •... -
Page 8: Safety Instructions, Regarding Hydraulic System
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Safety Instructions, regarding Hydraulic System • The highest allowable pressure, is 225 bar. • It is recommended to mark the hydraulic connections between the implement and tractor, to avoid incorrect operation! • When checking for hydraulic leeks, suitable safety gear must be used due to danger. (Safety, goggles, gloves, etc.) -
Page 9: Maintenance
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 There is no standard tine angle recommended. The operator may adjust to achieve the desired results. The following issues listed must be taken in consideration: • Actual settings will vary with tine wear •... -
Page 10: Markings On The Machine
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Markings on the machine Several markings are located at your machine, which contains safety regulations and other instructions to inform about correct operating. Please read these instructions carefully, and make the driver aware about the markings and safety regulations in this Operating Instructions. -
Page 11: Spare Parts List
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Spare parts list Right section, 5-bars w/Ø16 mm long finger tine 5,0 - 6.0 - 7,0 - 8,0 m Back to the table of contents... - Page 12 Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Pos. Part no. Description 1276236 Left section, welded (not shown) 1276239 Right section, welded (not shown) 1275219 Left section, welded (not shown) 1275220 Right section, welded (not shown) Left section, welded, (not shown)
- Page 13 Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 7355002 U-bolt 0261350 Nut M8 black 1275235 Plate for scala 1275239 Scala 0236210 Bolt M20x120 mm 0272310 Facet washer M20 DIN125B 0264110 Self-locking nut M20 633055609 Long finger tine Ø16 x H 655mm 633055612 Mounting bracket Ø12...
-
Page 14: Extension Kit For 8 M
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Extension kit for 8 m Pos. Part no. Description 1275151 Holder for storage of extension bar, left 1275152 Holder for storage of extension bar, right 1275182 Extension bar, left 1 1275183 Extension bar, left 2... -
Page 15: Middle Section 9,0 - 10,0 Meter
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Middle section 9,0 - 10,0 meter Pos. Part no. Description Qty. 1276067 Middle frame 1276225 Light bar 1276219 Bumper 1276062 1276107 1276109 690200301 Cylinder 80x40x400 ø30/ø30 45° (H) 1290076 Cylinder 50/30x250 690200300 Cylinder 80x40x400 ø30/ø30 45° (V) Parallel bar w/locks for bolts. -
Page 16: Side Section 9,0 - 10,0 Meter
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Side section 9,0 - 10,0 meter Back to the table of contents... - Page 17 Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 OBS: Quantity in this table relates to the whole machine Pos. Part no. Description Qty. 1276080 Side section left 1276081 Side section right 1276218 Bumper left 1276220 Bumper right 1275854 Bar holder, crippled 45mm...
-
Page 18: Wheels
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Wheels Qty. Pos. Part no. Description 7330056 Console for wheel 7330047 Steel profile w/hub and axel 69516125A Pin Ø16 S355J2 0377400 Hair-clip Ø4 Tire 200/60 – 14,5 10 ply 0395630 Rim 200/60 – 14,5 5/94/140 w/protection of valve... -
Page 19: Wheel 9,0 - 10,0 Meter (Additional Equipment)
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Wheel 9,0 - 10,0 meter (additional equipment) Qty. Pos. Part no. Description 1276192 Console for support wheel middle frame left 1276192 Console for support wheel middle frame right 1276213 Hollow profile w/axel and hub, facing left... -
Page 20: Light Bar 9,0 - 10.0 Meter
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Light bar 9,0 - 10.0 meter Qty. Pos. Part no. Description 1276225 Light bar complete 1276226 Holder for light bar left 1276227 Holder for light bar right 1275168 Light bar 1275159 Flange for mounting... -
Page 21: Led - Lighting Set
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 LED - Lighting set Pos. Part no. Description Qty. 7357505 Lightbox (L) 7357508 Lightbox (R) 7357504 Rear light 0264030 Locking nut M5 7357507 Marking lights (L) 7357509 Marking lights (R) 0234340 Bolt M5x25 0272240 Facet plate Ø5... -
Page 22: Turbo-Disc
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Turbo-Disc Back to the table of contents... - Page 23 Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Pos. Part no. Description 1275481 Bar outer H/V 6,0 m 1275537 Bar inner H/V 6,0 - 7,0 - 8,0 m (not shown) 1275536 Bar outer H/V 7,0 m (not shown) 1275487 Horn right facing...
-
Page 24: Hydraulics
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Hydraulics 5,0 - 8,0 meter 5 bar Top-Strigle Back to the table of contents... - Page 25 Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Pos. Part no. Description 5,0 - 6,0 - 7,0 - 8,0m 690200060 Cylinder 70/40 x 500 1290076 Cylinder 50/30 x 250 Ball valve 3/8” 0442350 690203130 Fitting, adjustable 12-3/8” mounted w/O-ring Fitting 90° 12-3/8” BSP 690203106 Fitting 90°...
-
Page 26: Folding 9,0 - 10,0M
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Folding 9,0 - 10,0m Pos. Part no. Description 9,0 - 10,0 m 690200301 Cylinder 80x40x400 ø30/ø30 45° (H) 690200300 Cylinder 80x40x400 ø30/ø30 45° (V) Fitting 90° 10-3/8” BSP 690203006 Fitting 90° 12-3/8” BSP 690203106 Fitting straight Ø10 x 3/8”... -
Page 27: Tine Angel 9,0 - 10,0 M
Top-Strigle 3,0 – 10,0 m 5 bars 25-10-2021 Tine angel 9,0 - 10,0 m Pos. Part no. Description 9,0 - 10,0 m 1290076 Cylinder 50/30 x 250 Fitting 90° 10-3/8” BSP 690203006 690203015 Connector T10 690203014 Connector T10 adjustable Fitting straight Ø10 x 1/2”... - Page 28 The design is subject to modification without notice.
