HE-VA Top-Strigle Operating Instructions Manual

Working width: 3,0 - 4,0 - 5,0 - 6,0 - 7,0 - 8,0 m (4 rows)
Hide thumbs Also See for Top-Strigle:
Table of Contents

Advertisement

Quick Links

Download this manual
Manual no. 8000111-01 100320

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Top-Strigle and is the answer not in the manual?

Questions and answers

Related Manuals for HE-VA Top-Strigle

Summary of Contents for HE-VA Top-Strigle

  • Page 1 Manual no. 8000111-01 100320...

  • Page 3: Table Of Contents

    EC DECLARATION OF CONFORMITY ....................... 3 Delivery Check ..............................4 Machine description ............................4 Technical specifications ..........................5 Safety around the Top-Strigle ..........................5 Safety Instructions, regarding Hydraulic System ....................6 Markings on the machine ........................... 7 Maintenance ............................... 8 Disposal................................

  • Page 4: Ec Declaration Of Conformity

    DK-7900 Nykøbing Mors hereby confirms that the following machine has been manufactured in accordance with the Council Directive 2006/42/EC. The declaration comprises the following machines: Top-Strigle with 5 bars 3,0m – 4,0m rigid 4,0m – 8,0m hydraulic Nykøbing the 28th february 2011 Villy Christiansen The undersigned is furthermore authorised to compile technical documentation for the above machine.

  • Page 5: Delivery Check

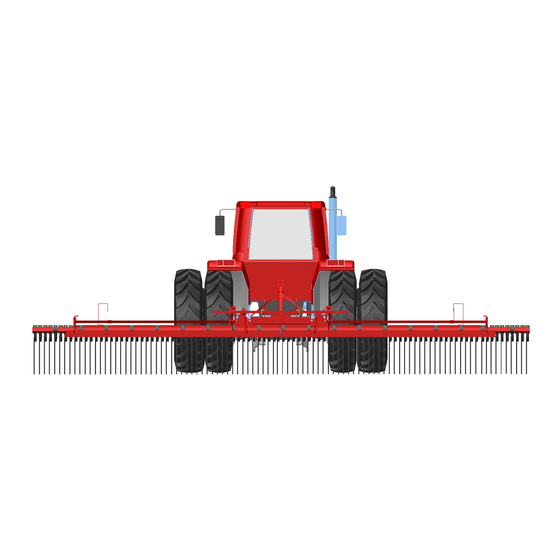

    Machine description The Top-Strigle is a 4 bar strigle which is suitable for aeration of pasture or spreading out heaps of straw as well as making seeds from weeds and wasted grain germinate. The machine can be delivered as either a front- or a tail mounted Strigle, and also with both options.

  • Page 6: Technical Specifications

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Technical specifications Working Transport Transport- No. of Tine size Weight in kg width width height tines requirement 12mm 3050 1500 85-110 3,00m riged 16mm...

  • Page 7: Safety Instructions, Regarding Hydraulic System

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Most accidents when operating the machine, transporting and doing maintenance occurs, when avoiding the most simple safety regulations. For this reason, it is of highest importance, that any person who is operating the machine, strictly follows the safety regulations and other instructions, which belongs the machine.

  • Page 8: Markings On The Machine

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 • Check the hydraulic hoses on a regular basis, however, every six months as a minimum due to any cracks, wear and tear, etc. Replace any defective hoses immediately.

  • Page 9: Maintenance

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Maintenance After 10 hours of operation, tightening of wheels, bearings and stop rings must be done. If this is not respected our warranty will lapse.

  • Page 10: Disposal

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Disposal When, after many years of use, the machine is to be regarded as end-of-life, it must be disposed of to a registered and approved product dealer. This will carry out the statutory discharge and disposal of hydraulic oil, as well as sorting materials for further processing for recycling.
  • Page 11 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Back to the table of contents...

  • Page 12: Spare Parts List

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Spare parts list For models before chassis number: 538020 Right wing w/Ø12 mm tines Back to the table of contents...
  • Page 13 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Pos. Part no. Description 675172005 Left section, welded 675172010 Right section, welded 675172505 Left section, welded 675172510 Right section, welded 675172705 Left section, welded...
  • Page 14 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 675174525 Bar 1 left, 50x50x3050 675174526 Bar 2 left, 50x50x3050 675174527 Bar 3 left, 50x50x3050 675174528 Bar 4 left, 50x50x3050 675174721 Bar 1 right, 50x50x3550...

  • Page 15: Noter

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Noter Back to the table of contents...

  • Page 16: For Models After Chassis Number: 538020

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 For models after chassis number: 538020 Right wing with Ø12 mm tine Back to the table of contents...
  • Page 17 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Pos. Part no. Description Right wing, welded Left wing, welded 1275410 Right wing, welded 1275409 Left wing, welded 1275201 Right wing, welded 1275199 Left wing, welded 690200060 Cylinder 70/40-500 69430090G Pin Ø30 L=90...

  • Page 18: Main Frame And Frame For Rearmonting

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 1275391 Bar 50x50x3550, right 1 1275392 Bar 50x50x3550, right 2 1275393 Bar 50x50x3550, right 3 1275394 Bar 50x50x3550, right 4 1275412 Horn for top-link between bars...

  • Page 19: 8M Extension Kit 70/70 Bars W/Ø16 Tine

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 8m extension kit 70/70 bars w/Ø16 tine Pos. Part no. Description 675170167 Parking holder f/extension kit, left 675170173 Parking holder f/extension kit, right 1275300...

  • Page 20: Left Wing W/Ø16 Mm Tine 5,0 - 6,0 - 7,0 - 8,0 M

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Left wing w/Ø16 mm tine 5,0 – 6,0 – 7,0 – 8,0 m Back to the table of contents...
  • Page 21 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Pos. Part no. Description Left wing, welded Right wing, welded 1275409 Left wing, welded 1275410 Right wing, welded 1275199 Left wing, welded 1275201 Right wing, welded 0272310 Facet washer Ø20 DIN125B...
  • Page 22 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 1275366 Holder for bar 1275452 Bar 70x70x3050, left 1 1275453 Bar 70x70x3050, left 2 1275454 Bar 70x70x3050, left 3 1275455 Bar 70x70x3050, left 4...

  • Page 23: Support Wheel

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Support wheel 3m – 4m - 5m – 6m Pos. Part no. Description 675170015 Mounting bracket 675170014 Turnable console 675170013 Wheel suspension Tyre 200/60 – 14,5” 10 ply 0395630 Rim 200/60 –...

  • Page 24: Hydraulic

    Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Hydraulic Back to the table of contents...
  • Page 25 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Pos. Part no. Description 7,0 + 8,0m 690200060 Cylinder 70/40 x 500 1275023 Cylinder 50/30 x 250 Ballvalve 3/8” 0442350 690203130 Fitting adjustable 12 mounted w/ O-ring Fitting 90°...
  • Page 26 Top-Strigle 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 m 4 bars 10-03-2020 Above: 4-bar Front-Strigle Right: Top-links at 4-bar Front-Strigle for individual angel of the tines Back to the table of contents...
  • Page 28 The design is subject to modification without notice.
