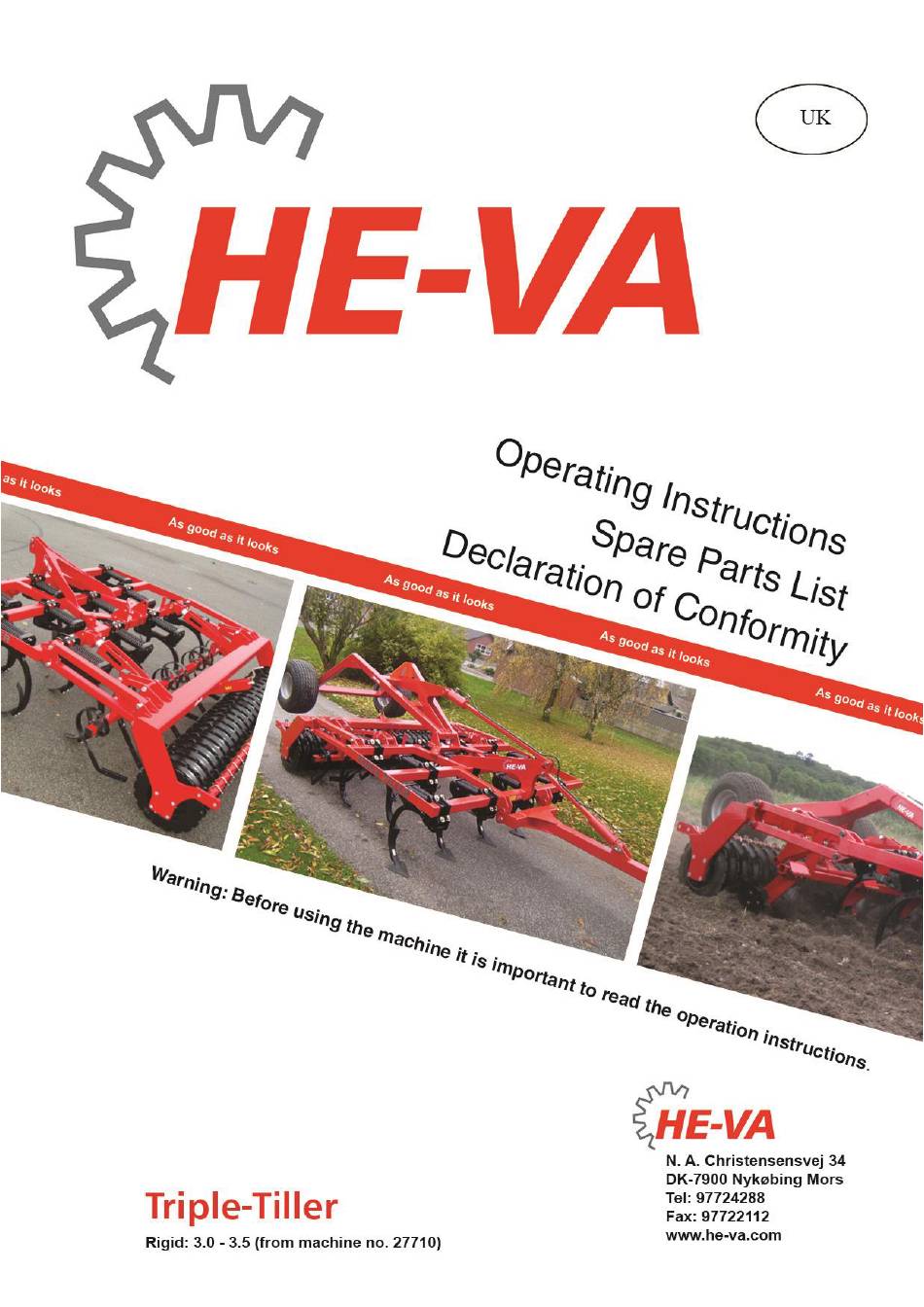

HE-VA Triple-Tiller Operating Instructions Manual

Rigid: 3.0 - 3.5 (from machine no. 27710)
Hide thumbs Also See for Triple-Tiller:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for HE-VA Triple-Tiller

Summary of Contents for HE-VA Triple-Tiller

  • Page 2: Table Of Contents

    Triple-Tiller 08-05-2013 Table of contents EC- Declaration of Conformity ........................4 Machine description ............................ 5 Range of application ..........................5 Technical specifications ..........................5 Delivery check .............................. 6 Preparation of the machine ........................6 Safety instructions ............................7 Safety and instructions for hydraulics ....................... 8 Labels on the machine ..........................
  • Page 3 Triple-Tiller 08-05-2013 Trailed kit 3 – 3.5 m (rigid) ........................34 Notes ................................36...

  • Page 4: Ec- Declaration Of Conformity

    Triple-Tiller 08-05-2013 EC- Declaration of Conformity in accordance with the EU Machinery Directive 2006/42/EC applicable as from December 29 2009: HE-VA ApS N. A. Christensensvej 34, DK-7900 Nykøbing Mors hereby confirms that the following machine has been manufactured in accordance with the Council Directive 2006/42/EC.

  • Page 5: Machine Description

    Range of application HE-VA Triple-Tiller stubble harrow is available in 3,00 m and 3,50 m working width as rigid models and 4 m and 5 m working width with hydraulic folding (transport width 3,00 m). All models are available as lift-mounted or trailed with a row spacing of only 25 cm.

  • Page 6: Delivery Check

    Triple-Tiller 08-05-2013 Delivery check Preparation of the machine Check :  the machine for any damages.  for transport damage to the paint.  hydraulic hoses for cuts and other damage. Check that none of the other hydraulics components were damages during transport.

  • Page 7: Safety Instructions

    Triple-Tiller 08-05-2013 Safety instructions Do not start-up the machine if there are persons in exposed positions** within a hazardous area*. When persons are in exposed positions (e.g. in connection with adjustment, maintenance, attachment and uncoupling), the following conditions must be observed: The machine must be lowered to firm ground.

  • Page 8: Safety And Instructions For Hydraulics

    Triple-Tiller 08-05-2013 Safety and instructions for hydraulics 1. The maximum working pressure is 225 bar. 2. It is advisable to label the attachment parts at hydraulic connections between the tractor and the tool in order to eliminate incorrect operation! 3. When checking for hydraulic leaks, use suitable safety wear (eye protectors, gloves, etc.) High-pressure hydraulic oil may penetrate the skin and cause dangerous injuries.

  • Page 9: Labels On The Machine

    Triple-Tiller 08-05-2013 Labels on the machine There are several labels on the machine advising on safety precautions and practical use. Please study these instructions carefully, and make sure the operator are familiar with all labels and safety instructions. Keep the labels clean and legible – if not, they should be replaced.

  • Page 10: Start-Up

    Triple-Tiller 08-05-2013 Start-up General information Rigid models require 0 – 1 double-acting oil outlets (see technical specifications p. 5) Attachment (rigid lift-mounted machines) 1. Reverse the tractor to the machine and attach it. 2. Lift the machine to maximum transport height.

  • Page 11: Settings And Adjustment

    These clips are easily removed by hand to adjust the working depth of the roller. When not in use, excess clips may be put onthe tube (pos. 2). Scraper Triple-Tiller is fitted with scrapers of special steel in between the rings of the V-profile roller. Check their centering daily, so they do not wear unnecessarily, and to ensure optimal effect.

  • Page 12: Maintenance

    Lubrification When lubricating, maintaining and repairing the Triple-Tiller, always lower the machine, brake the tractor and stop the engine. The typical lubricating points are: by the roller, spindle, side section and the arms of the roller bar. The lubricating points must be lubricated after 10 hours of operation, and before/after cleaning in order to drive out any water or dirt.

  • Page 13: Spare Parts

    Triple-Tiller 08-05-2013 Spare parts Frame 3.0 and 3.5 m (rigid) Pos. Item no. Designation 3.5 m 1160097 Frame 1160149 Frame 1140600 Pin Ø37x150 0378650 Ring split Ø10x42 1140361 Pin Ø32x175 0378600 Ring split Ø11x40 690200664 Distance clip 6.2 mm, blue 690200665 Distance clip 9.4 mm, red...

  • Page 14: Harrow Tine

    Triple-Tiller 08-05-2013 Harrow tine...
  • Page 15 Triple-Tiller 08-05-2013 Pos. Item no. Designation No. per tine 0424601 Shank 0424602 Holder for shank 0424603 Tine attachment 0424604 Side plate for shank, Left 0424605 Side plate for shank, Right 0424606 Spring 0424607 Spring retainer 0424608 Clamping bracket 0424609 Carrier bolt 3/4NC-2A...

  • Page 16: Roller Bar 3.0 And 3.5.M (Rigid)

    Triple-Tiller 08-05-2013 Roller bar 3.0 and 3.5.m (rigid)
  • Page 17 Triple-Tiller 08-05-2013 Pos. Item no. Designation 3.5 m 1160103 Levelling bar 1160403 Levelling bar 1160486 Cylinder 69430095G Pin Ø30 L=95 1160155 Pin Ø30 L=165 69440165G Pin Ø40 L=165 630532600 Lock bush for pin head 0235330 Bolt M12x25mm 8.8 690136001 Lubricating nipple M6...

  • Page 18: Roller 3.0 And 3.5 M (Rigid)

    Triple-Tiller 08-05-2013 Roller 3.0 and 3.5 m (rigid)
  • Page 19 Triple-Tiller 08-05-2013 Pos. Item no. Designation 3.5 m 678612935 Axle Ø60x2935 678613435 Axle Ø60x3435 1069111 T-profile ring T-profile ring – wide+narrow ring 1048100 1048240 Square tube roller Ø550 1048280 Square tube roller Ø550 630916300 V-profile roller (to machine no. 29175) 1160470 V-profile roller (from machine no.

  • Page 20: Scraper

    Triple-Tiller 08-05-2013 Scraper...
  • Page 21 Triple-Tiller 08-05-2013 Pos. Item no. Designation 3.5 m 1160433 Scraper bar (V-profile roller) (to machine no. 29175) 1160431 Scraper bar (V-profile roller) (to machine no. 29175) 1160566 Scraper bar (V-profile roller) (from machine no. 29176) 1160567 Scraper bar (V-profile roller) (from machine no. 29176)

  • Page 22: Tine Track Eradicator

    Triple-Tiller 08-05-2013 Tine track eradicator...
  • Page 23 Triple-Tiller 08-05-2013 Pos. Item no. Designation 3.5 m 1160387 Levelling bar 1160400 Levelling bar 1160325 Spindle 0236260 Bolt M20x170 8.8 0272310 Facet plate Ø20 0264110 Self-locking nut M20 690103124 Bolt M16x35MM 8.8 0236170 Bolt M20x80MM 8.8 690103188 Bolt M20x160mm 8.8...

  • Page 24: Extra Equipment

    Triple-Tiller 08-05-2013 Extra equipment Eradicator disc...
  • Page 25 Triple-Tiller 08-05-2013 3,5m. Pos. Varenr. Betegnelse Pos. Item no. Designation 3,5m. 1139870 Carrier arm (R + L) 1139871 Carrier arm (R) 1139872 Carrier arm (L) 30949046 Clamping plate 690103091 Steel bolt M12x45 10.9 0272270 Facet plate M12 0264070 Self-locking nut M12 690210710 Rubber cord 630949019 Disc Ø45/71,7...

  • Page 26: Wearing Point (Quick Change Adapter)

    Triple-Tiller 08-05-2013 Wearing point (Quick change adapter) Pos. Item no. Designation No. per tine 0424480 Twisted mould board (L) (8 pcs per machine 3,0m) 0424490 Twisted mould board (R) (4 pcs per machine 3,0m) 0424480 Twisted mould board (L) (9 pcs per machine 3,5m)

  • Page 27: Lights

    Triple-Tiller 08-05-2013 Lights Pos. Item no. Designation 30910110 Bracket 0230825 Screw Tapetite M8x25mm 30930110 Bracket 0234330 Set screw M6x20 mm 0272240 Facet plate Ø6 0264040 Self-locking nut M6 1043480 Light bracket (L) 1043510 Light bracket (R) 0527000 Rear light (L)

  • Page 28: Trailed Kit 3 - 3.5 M (Rigid)

    Triple-Tiller 08-05-2013 Trailed kit 3 – 3.5 m (rigid)
  • Page 29 Triple-Tiller 08-05-2013 Pos. Item no. Designation 1160182 Wheel frame 0396110 Wheel rim 0396130 Tyre 11,5/80 x 15,3 0396100 Complete wheel 690141055 Hub nut M18x1,5 0521010 Warning triangle with bracket 1160119 Bracket 0382160 U-bolt M16 100x100 0272290 Facet plate M16 0264090...

  • Page 30: Edge Equipment W/Tine Eradicator

    Triple-Tiller 08-05-2013 Edge equipment w/tine eradicator Pos. Item no. Designation 1139830 Inner tube f/edge equipment 1139800 Outer tube f/edge equipment 0248660 Carrier bolt M12x40mm 0261370 Nut M12 0422375 Tine holder f/ 60x10mm tine 0422421 Levelling tine w/wearing point 60x10mm (R) (shown)

  • Page 31: Edge Equipment W/Disc Eradicator

    Triple-Tiller 08-05-2013 Edge equipment w/disc eradicator Pos. Item no. Designation 1139830 Inner tube f/edge equipment 1139800 Outer tube f/edge equipment 0248660 Carrier bolt M12x40mm 0261370 Nut M12 0422390 Tine holder f/ 80x10mm tine 0422144 Tine 80x10mm 0235480 Bolt M12x120mm 0272270 Facet plate Ø12...

  • Page 32: Support Wheels

    Triple-Tiller 08-05-2013 Support wheels...
  • Page 33 Triple-Tiller 08-05-2013 Item no. Designation 3,0m 3,5m Wheel (complete) 10.0/80x12 – 10 PLY 0394700 0394860 Hub bolt M12x1,5x36 mm 0394861 Nub nut M12x1,5 NV22mm 0394850 Hub (complete) pos. 4-9 1145390 1145393 Distance sleeve 0474100 Ball bearing 5206-2RS YC 0483585 Oil sealing ring Ø45/62x7 630949019 Disc Ø45/71,7...

  • Page 34: Hydraulics

    Triple-Tiller 08-05-2013 Hydraulics Trailed kit 3 – 3.5 m (rigid)
  • Page 35 Triple-Tiller 08-05-2013 Pos. Item no. Designation 1160178 Hydraulic cylinder 1160414 Hydraulic cylinder Quick coupling ½” 0444020 Bounded seal ½” 0449070 Hexagon nipple ½” - ¼” 0444490 Hose 1700mm. ¼” 0454550 T-nipple ¼” 0446610 Bounded seal ¼” 0449050 Hexagon nipple ¼” - ⅜”...
  • Page 36 Triple-Tiller 08-05-2013 Notes...
  • Page 37 Triple-Tiller 08-05-2013...
  • Page 38 Triple-Tiller 08-05-2013...
  • Page 39 Triple-Tiller 08-05-2013...
  • Page 40 Triple-Tiller 08-05-2013...
