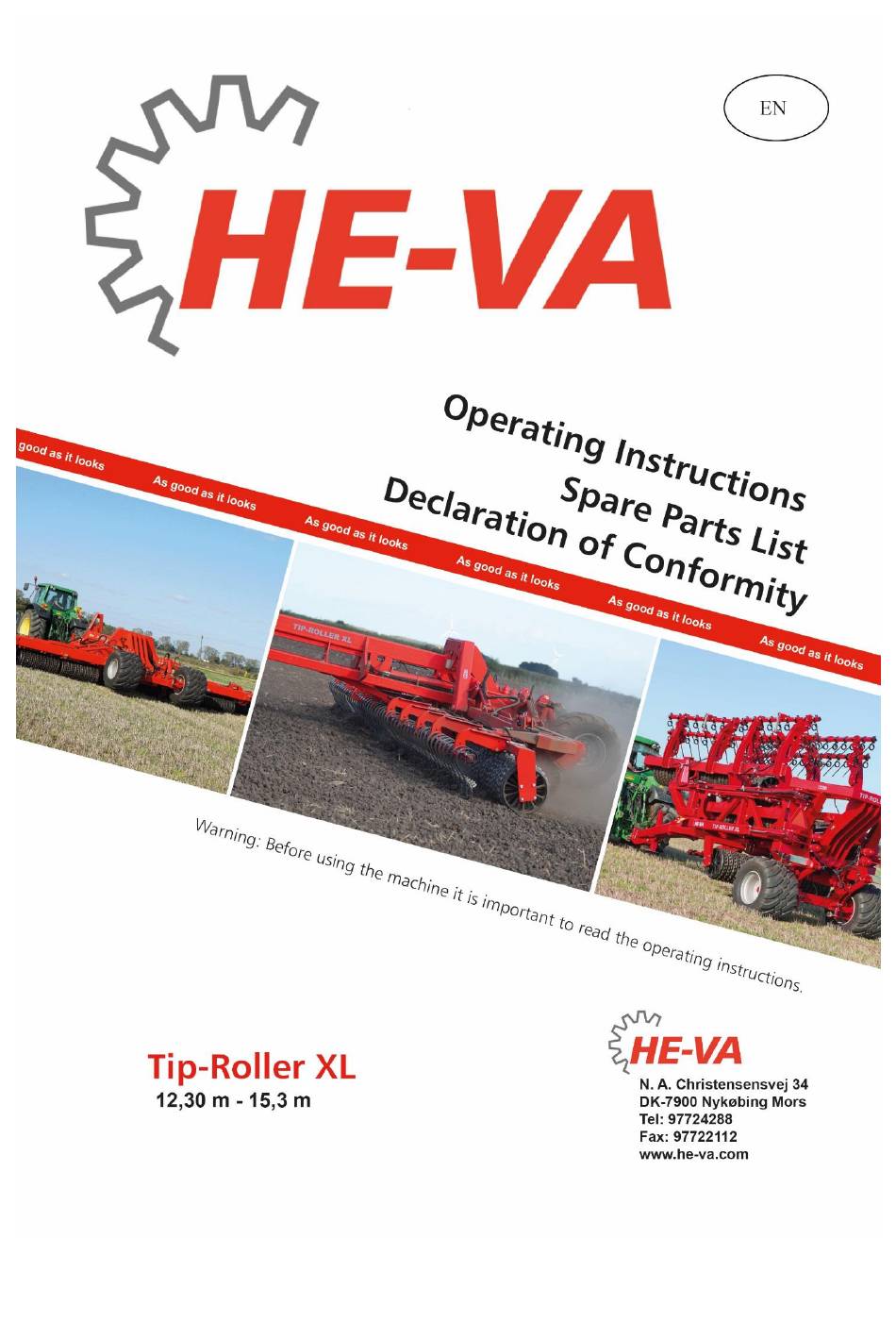

HE-VA Tip-Roller XL Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for HE-VA Tip-Roller XL

Summary of Contents for HE-VA Tip-Roller XL

  • Page 2 Back to the table of contents...

  • Page 3: Table Of Contents

    Technical Specifications ..........................5 4. Operating Instructions ........................... 5 Attachment ..............................5 Warning ................................. 6 Transport to work position ..........................6 He-Va SAT-System ............................7 Spring Board ..............................8 Transport................................ 8 Rolling ................................8 6. Safety Instructions, regarding Hydraulic System ..................10 7.

  • Page 4: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY in accordance with the EU Machinery Directive 2006/42/EC applicable as from December 29 2009: HE-VA ApS N. A. Christensensvej 34, DK-7900 Nykøbing Mors hereby confirms that the following machine has been manufactured in accordance with the Council Directive 2006/42/EC.

  • Page 5: Description Of The Machine

    26-03-2019 1. Description of the machine The Tip-Roller XL is a 5-section hydraulic roller, with a 2-section wheel frame. The main purpose of the divided wheel frame is to reduce the radius when turning in transport position and lower height in transport postition. The roller sections is mounted in a middle suspension. This construction gives the sections an independent movement from each other, which makes the roller able to follow the surface in uneven or hilly areas.

  • Page 6: Technical Specifications

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Technical Specifications Work Width 12,3 m 15,3 m Total Width in workposition 12,65 m 15,65 m Length 8,6 m 8,6 m Width in transportposition 3,0 m 3,0 m Hight in transportposition Pressure on pintle eye in ca.

  • Page 7: Warning

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 IMPORTANT: Check that the male quick couplings of the hydraulic hoses, mounted by the factory, fits the female end of the tractor. Now connect the hydraulic hoses, in the hydraulic outlets of the tractor. Coloured tags are mounted...

  • Page 8: He-Va Sat-System

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Tipping cylinder must be completely in negative position when working, which will raise the transport wheels off the ground. Figur 3 He-Va SAT-System Figur 4 To activate the He-Va SAT-system (weight distribution system), gently pressurise the same lever as when folding wings tovards transport position (figure 4), up to 50 –...

  • Page 9: Spring Board

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Spring Board The spring board is adjustable by the means of the cylinders mounted in the horns for the spring board bar. If the roller is mounted with two Spring-Board bars, it is possible to adjust the angle to the surface individually by the top link (figure 6).
  • Page 10 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Tractor must be turned off, and the key removed. Driver must be aware of, when operating that there is no persons at risk in the dangerous area. Dangerous area: At the machine and underneath it, and in a distance of 4 m from People at risk: Any person, who is completely or partially in the dangerous area.

  • Page 11: Safety Instructions, Regarding Hydraulic System

    He-Va spare- and wearing parts. Any work done as a warranty issue, must only be done when an agreement in advance with He-Va is made. Repairs done as warranty will be done at the dealers workshop in ordinary working houres.

  • Page 12: Safety And Other Markings On The Machine

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 INSTRUCTIONS FOR TRANSPORT AT PUBLIC ROADS: Before transport at public roads, make sure that the attachment of the implement to the tractor, is in accordance with the local rules and regulations in force (permitted total weight, permitted axel load, transport width, lights and warning signs).

  • Page 13: Maintenance

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Tighten up the bolts regularly. If this is not performed, our warranty obligations will no longer apply. Maximum torque in Nm. w/lubricated thread Metric thread Quality 8.8 Quality 10.9 Quality 12.9 M10x1,5 M12x1,75 M14x2,0...
  • Page 14 Tip-Roller XL 12,3 – 15,3m 26-03-2019 - wheel frame bushings hinged to chassis - wing frame bushings hinged to chassis Once a year: - the support leg Bearings must only be lubricated with 1-2 strokes, otherwise IMPORTANT: the sealing rings can be released.
  • Page 15 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Back to the table of contents...

  • Page 16: Spareparts List

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 10. Spareparts list Outer wing right / left Outer roller section Back to the table of contents...
  • Page 17 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Part no. Description 12,3m 15,3m 630850260 Outer wing right 630850071 Outer wing left 69440615N Pin Ø40 L=615 New model 0235760 Bolt M16x25mm, 8.8 fzb 630532700 Lock bushing for pin head 1215096 Lock plate for Ø40 mm bushing 1215107 Cover for lock plate Ø40 mm bushing...
  • Page 18 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Side section left Back to the table of contents...
  • Page 19 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Part no. Description 12,3m 15,3m 630850088 Side wing right, welded 1215127 Side wing right, welded 630850103 Steel plate 20mm 690103282 Bolt M16x100 10.9 Faceted washer Ø16 – DIN 125B 0272290 630850104 Steel plate 15 mm 630850107 POM black, Ø80 mm...
  • Page 20 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Side roller section right / left and middle section Back to the table of contents...
  • Page 21 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Part no. Description Sidesec. Middle 630850083 Side roller section, right / left 12,3 m 1215119 Side roller section, right / left 12,3 m 630850095 Middle roller section 630850263 Bearing for support, side wings and outer wings...
  • Page 22 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Chassis and drawbar Back to the table of contents...
  • Page 23 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Part No. Description 12,3 m 15,3 m 630850130 Chassis, welded 1215114 Chassis, welded 630850228 Tower 690207100 End stop valve FC10NA 690207101 End stop valve FC10NC 630850292 Bracket for end stop valve 630850168 Wearing plate...
  • Page 24 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Drag bar for lift. 630757077 Cat. 3 / Cat. 4 (Additional) Pos. Part no. Description 0235390 Bolt M12x55 mm, 8.8 fzb 0272270 Faceted washer 12 mm, fzb Din 125B 0264070 Safety nut M12, fzb DIN 985...
  • Page 25 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Chassis for wheels Pos. Part no. Description 12,3 m 15,3 m 630850106 Chassis for wheels, welded 121596 Lock plate for Ø40 mm bushing 1215106 Cover plate for Ø40 mm bushing 0227545 Insex. M6x25 BH 10.9 FZB DIN7380 0235800 Bolt M16x45 mm 8.8...
  • Page 26 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Spring-Board w/ fixed mounted wearing points and traverse locking system Pos. Part no. Description 0422145 Spring-board tine 80x10 - long 633052100 Slicing point (crust breaker) 633052150 Wearing point for Spring-Board tine 633052200 Mounting piece for Spring-Board tine...

  • Page 27: Spring-Board Mounting W/Easy Change

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Spring-Board mounting w/easy change Wearing points and Slicing point (Crust breaker) and traverse locking system Pos. Part no. Description 0422145 Spring-Board tine Flat wearing point – Easy-Change 1170388 3 – point Slicing point (Crust breaker) – Easy-Change...

  • Page 28: Ø16 Mm Tine For Strigle

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Ø16 mm tine for strigle Pos. Part no. Description 633055609 Tine for strigle Ø16 H=655mm 0235480 Bolt M12x120 8.8 633055612 Mounting bracket 0272820 Flat washer 0264070 Safety nut M12, fzb DIN985 0272270 Faceted washer 12mm fzb, DIN125B...

  • Page 29: Led -Light Bar

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 LED –light bar Pos. Part no. Description 7357505 Lightbox (L) 7357508 Lightbox (R) 7357504 Rear light 0264030 Locking nut M5 7357507 Marking lights (L) 7357509 Marking lights (R) 0234340 Bolt M5x25 0272240 Facet plate Ø5...

  • Page 30: Light Kit: El. Diagram

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Light kit: El. diagram Back to the table of contents...

  • Page 31: Notes

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Notes Back to the table of contents...
  • Page 32 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Axel, tiltable Back to the table of contents...
  • Page 33 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Part no. Description 630850361 Axel, tiltable, welded 690141052_PK Tire 710/40R22,5 FL630+ 690141051_PK Rim 8/M27-221-275 69435148G Pin Ø35 L = 148 mm 0238870 Bolt M20x110, 10.9 fzb 690112009 Nut M20 7297509 Mounting kit w/long bars Membranecylinder 12”...
  • Page 34 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Part no. Description 12,3m 15,3m 0478972 Bearing HCF 312 Ø60 0236130 Bolt M20x60 8.8 fzb 0272310 Faceted washer Ø20 DIN125B 0264110 Safety nut M20 671040400 Stop ring w/2 stk. M12 bolts (for Ø60 axle) 678612710 Axle Ø59,95 h9, E335C, outer sec.
  • Page 35 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Cambridge rings Ø620 mm with 10 spokes Description Quality Part no. Pos. 12 Hub 104 mm GG25 690150113 Pos. 12 Hub 104 mm GGG50 7375016 Pos. 12 Hub 80 mm GG25 690150111 Pos. 12 Hub 80 mm...

  • Page 36: Rings At Support Bearing

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Crosskill 485/530 mm – 550/600 mm Description Quality Part no. Pos. 22 600 mm GG25 690150075 Pos. 23 550 mm GG25 690150074 Pos. 24 Hub Ø104 690150076 Pos. 22 Pos. 23 Pos. 24 Loose Crosskill...
  • Page 37 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Support bearing Support bearing with rubber (additional equipment) Back to the table of contents...
  • Page 38 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Part no. Description 12,3m 15,3m 630850263 Console for support bearing, side- and outer section 630850271 Console for support bearing, center section 630764008 Holder for support bearing 0478971 Bearing UC312 R3 691370150 Seeger circlip ring Ø150 DIN 471 690117102 Support circular plate Ø90xØ62x2 mm...

  • Page 39: Hydraulic

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 11. Hydraulic Side sections Pos. Part no. Description 12,3 m 15,3 m Hydraulic hose 3/8” L = 9750 mm 0455416 Hydraulic hose 3/8” L = 11250 mm 0455490 Hydraulic hose 3/8” L = 3300 mm 0454916 Hydraulic hose 3/8”...
  • Page 40 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Weight distribution system, outer- and center section Back to the table of contents...
  • Page 41 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Part no. Description 12,3 m 15,3 m 7345020 Cylinder Ø100/40 x 50 ø35/ø35 Cylinder Ø90/40 – 155 ø35/ø35 2 x rod eyes 7345037 690206822 Pressure guage 250 bar, ø100 690207101 End stop valve FC10NC Pilot controlled non return valve 3/8”...
  • Page 42 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Spring-Board Back to the table of contents...
  • Page 43 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Part no. Description 12,3 m 15,3 m 690200160 Cylinder 50/30x135 Fitting, 90° angel 12-3/8” BSP 690203106 690207901 Restrictor (1 mm) 690203115 Tee, 3 x male thread T12 Hydraulic hose 3/8” L = 3530 mm 690201232 Hydraulic hose 3/8”...

  • Page 44: Tipping Cylinder

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Tipping cylinder Back to the table of contents...
  • Page 45 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Pos. Vare nr. Betegnelse 12,3 m 15,3 m 7345028 Cylinder 110/90 x 1300 7345042 Cylinder 110/40 x 285 0442510 Pilot controlled non return valve 3/8” 690207101 End stop valve FC10NC Quick coupling 1/2” 0444020 Fitting, straight Ø12 x 1/2”...

  • Page 46: Support Leg

    Tip-Roller XL 12,3 – 15,3m 26-03-2019 Support leg Pos. Vare nr. Betegnelse 12,3 m 15,3 m 690141105 Support leg Fitting 90° angle 10-3/8” BSP 690203006 Fitting straight 10-3/8” BSP 0446752 Quick coupling 1/2” 0444020 Hydraulic hose 1/4” L 690201047 Back to the table of contents...
  • Page 47 Tip-Roller XL 12,3 – 15,3m 26-03-2019 Back to the table of contents...
  • Page 48 The design is subject to modification without notice.
