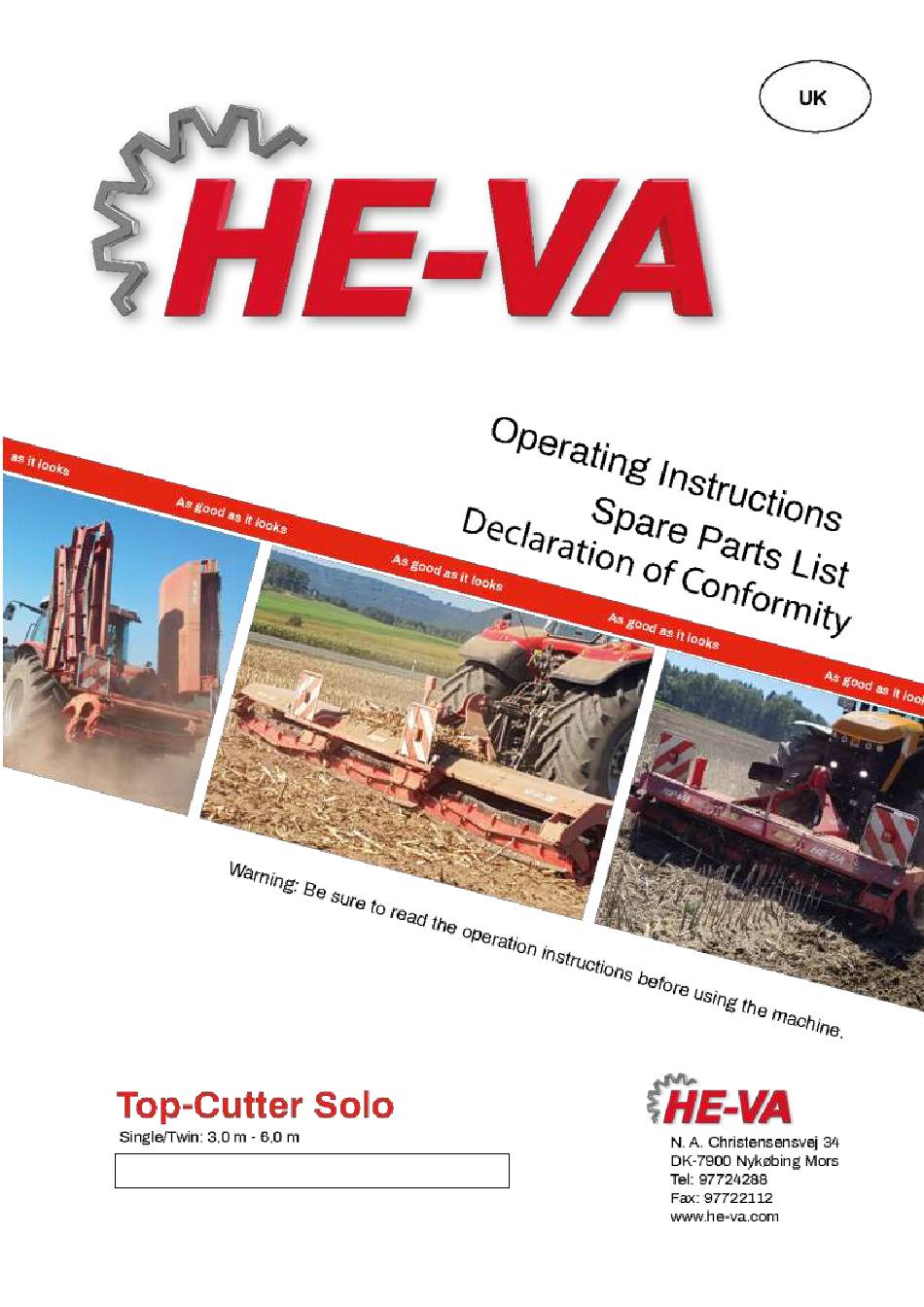

- Page 1 Manual no. 8000421-01 010421...
-
Page 3: Table Of Contents
EC DECLARATION OF CONFORMITY..................4 Delivery Check ............................ 5 Machine description ..........................5 Technical specifications ........................5 Working with the Top-Cutter Solo ...................... 6 Safety around the Top-Cutter Solo ...................... 7 Safety Instructions, regarding Hydraulic System ................8 Markings on the machine ........................9 Maintenance ............................ -
Page 4: Ec Declaration Of Conformity
DK-7900 Nykøbing Mors hereby confirms that the following machine has been manufactured in accordance with the Council Directive 2006/42/EC. The declaration comprises the following machines: Top-Cutter Solo 3,0m – 3,5m rigid 4,0m – 6,0m hydraulic foldable Nykøbing the 28th february 2021... -
Page 5: Delivery Check
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Delivery Check Check the Top-Cutter for any damage when it is received at either the dealer and the final customer. Check that the frame construction has not been exposed to impacts. Check the hydraulic hoses, at hydraulic models, for cuts and squeezing damages. -
Page 6: Working With The Top-Cutter Solo
Sterling type E 402 Hydraulic oil: The machine is filled with Hydro Texaco HD32 Working with the Top-Cutter Solo The area must be dry and firm to achieve the best result. Drive around wet spots where the machine sinks and works unintentionally. -
Page 7: Safety Around The Top-Cutter Solo
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Safety around the Top-Cutter Solo Do not operate the machine, if any people are at risk in the dangerous area. When persons are at risk in the dangerous area (e.g. when doing adjustments, maintenance or connect or disconnecting), the following points must be met: •... -
Page 8: Safety Instructions, Regarding Hydraulic System
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Safety Instructions, regarding Hydraulic System • The highest allowable pressure, is 225 bar. • It is recommended to mark the hydraulic connections between the implement and tractor, to avoid incorrect operation! •... -
Page 9: Markings On The Machine
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Markings on the machine Several markings are located on your machine, which contains safety regulations and other instructions to inform about correct operating. Please read these instructions carefully, and make the driver aware about the markings and safety regulations in this Operating Instructions. -
Page 10: Maintenance
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Maintenance After 10 hours of operation, tightening of wheels, bearings and stop rings must be done. If this is not respected our warranty will lapse. Maximum torque in Nm. w/lubricated thread Metric thread Quality 8.8 Quality 10.9... -
Page 11: Notes
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Notes Tilbage til indholdsfortegnelse... -
Page 12: Spare Parts List
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Spare Parts List The machines main components Pos. Part no. Description 4,0m 5,0m 6,0m 1330660 Middle section with 3-point linkage 1330655 Left side section 1330656 Left side section 1330658 Left side section 1330653... -
Page 13: Middle Section Twin 4,0 - 5,0 - 6,0M
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Middle section Twin 4,0 - 5,0 - 6,0m Pos. Part no. Description Qty. 1330640 Middle frame 1330703 Middle screen front 1330242 Carrier arm right 1330243 Carrier arm left 7455120 Top-Cutter roller L = 1668 mm Forward 7455132... -
Page 14: Wing Section Left Twin 4,0 - 5,0 - 6,0M
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Wing section left Twin 4,0 - 5,0 - 6,0m Pos. Part no. Description 1330651 Wing left 1330649 Wing left 1330647 Wing left 1350650 Wing right 1330648 Wing right 1330643 Wing right 1330242... -
Page 15: Carrier Arm For Roller
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 1330472 Screen 2-divided left inner 1330481 Screen 2-divided left outer 690140715 Bushing Ø40/Ø44 L=40 0236390 Bolt M24x80 8.8 fzb 0261425 Nut M24 galvanized Carrier arm for roller Pos. Part no. -
Page 16: Knife Overview
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Knife overview Middle section Single and Twin models 4,0m 5,0m 6,0m 7455122 Forward right L = 838 7455123 Forward left L = 838 7455133 Reverse right L = 838 7455138 Reverse left L = 838 Wing right/left Single and Twin models... -
Page 17: Overview Additonal Equipment Twin 4,0 - 5,0 - 6,0M
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Overview additonal equipment Twin 4,0 - 5,0 - 6,0m Pos. Part no. Description Qty. Basic machine 1330676 3-point linkage for rear mounting 1330708 Toplink for 3-point linkage rear mounting 1330534 Light bar with marker lights and reflecters 1330406... -
Page 18: Led - Light Bar
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 LED – light bar Pos. Part no. Description Qty. 7357505 Light console (V) 7357508 Light console (H) 7357504 Light 0264030 Self locking nut M5 7357507 Marker light (V) 7357509 Marker light (H) 0234340... -
Page 19: Hydraulic
Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Hydraulic Tilbage til indholdsfortegnelse... - Page 20 Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Pos. Part no. Description Qty. 7345125 Cylinder 90/40 x 400 ø35/35 690206410 Accumulator H700R 40 bar 690203097 Fitting straight M18x1,5x10 0442052 Manometer Manometer fitting Ø12x1/4” 690206825 Ball valve 3/8” 0442350 Fitting straight Ø10 x 3/8”...
- Page 21 Top-Cutter 3,0 - 3,5 - 4,0 - 5,0 - 6,0m rigid/hydraulic 01-04-2021 Tilbage til indholdsfortegnelse...
- Page 24 EC DECLARATION OF CONFORMITY UK DECLARATION OF CONFORMITY Product type : Top-Cutter Solo We hereby declare under our own responsibility that the machine complies with the health and safety requirements established by: European Directive 2006/42/EC and UKCA legislation Supply of Machinery (Safety) regulations 2008.
