Technical Data - SPECTRO SPECTROTEST Original Operating Instructions

3

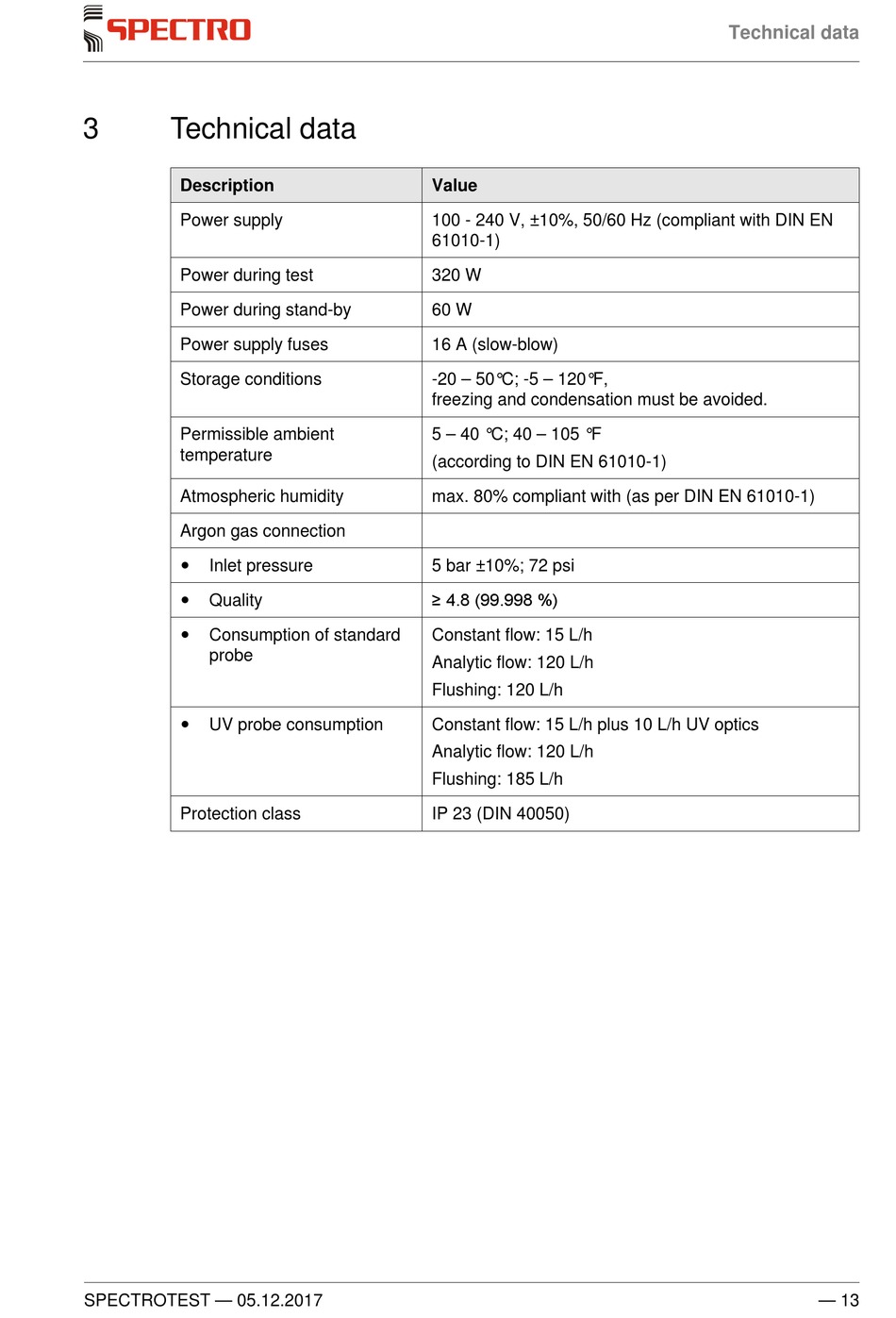

Technical data

Description
Power supply
Power during test
Power during stand-by
Power supply fuses
Storage conditions
Permissible ambient
temperature
Atmospheric humidity
Argon gas connection

Inlet pressure

Quality

Consumption of standard
probe

UV probe consumption
Protection class
SPECTROTEST — 05.12.2017
Value
100 - 240 V, ±10%, 50/60 Hz (compliant with DIN EN
61010-1)
320 W
60 W
16 A (slow-blow)
-20 – 50°C; -5 – 120°F,
freezing and condensation must be avoided.
5 – 40 °C; 40 – 105 °F
(according to DIN EN 61010-1)
max. 80% compliant with (as per DIN EN 61010-1)
5 bar ±10%; 72 psi
≥ 4.8 (99.998 %)
Constant flow: 15 L/h
Analytic flow: 120 L/h
Flushing: 120 L/h
Constant flow: 15 L/h plus 10 L/h UV optics
Analytic flow: 120 L/h
Flushing: 185 L/h
IP 23 (DIN 40050)
Technical data
— 13
