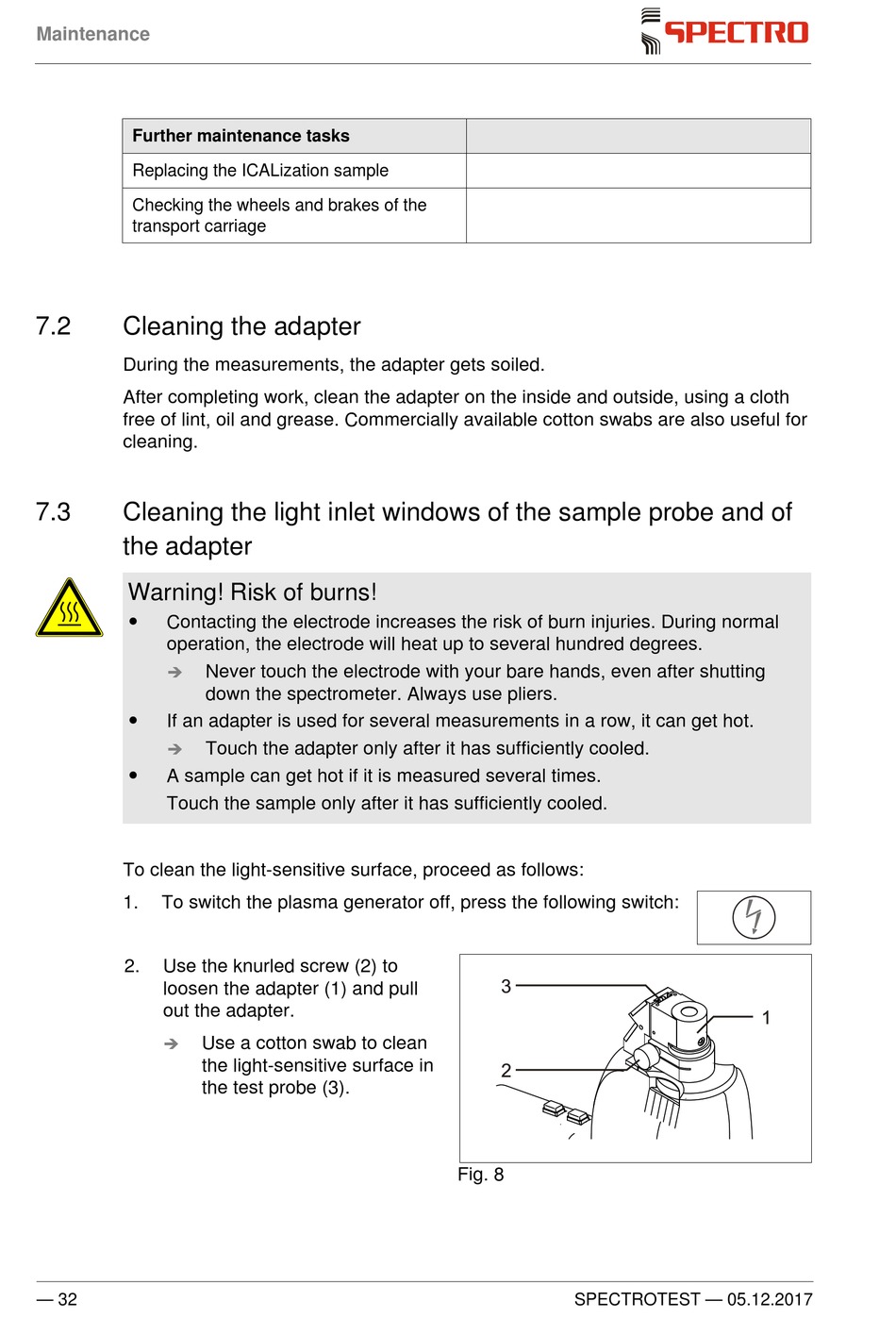

Maintenance
Further maintenance tasks
Replacing the ICALization sample
Checking the wheels and brakes of the
transport carriage
7.2

Cleaning the adapter

During the measurements, the adapter gets soiled.
After completing work, clean the adapter on the inside and outside, using a cloth
free of lint, oil and grease. Commercially available cotton swabs are also useful for
cleaning.
7.3 Cleaning the light inlet windows of the sample probe and of
the adapter
Warning! Risk of burns!

Contacting the electrode increases the risk of burn injuries. During normal
operation, the electrode will heat up to several hundred degrees.


If an adapter is used for several measurements in a row, it can get hot.


A sample can get hot if it is measured several times.
Touch the sample only after it has sufficiently cooled.
To clean the light-sensitive surface, proceed as follows:
1. To switch the plasma generator off, press the following switch:
2. Use the knurled screw (2) to
loosen the adapter (1) and pull
out the adapter.
 Use a cotton swab to clean
the light-sensitive surface in
the test probe (3).
— 32
Never touch the electrode with your bare hands, even after shutting
down the spectrometer. Always use pliers.
Touch the adapter only after it has sufficiently cooled.
Fig. 8
