Instrument - SPECTRO SPECTROTEST Original Operating Instructions

1.3.2

Instrument

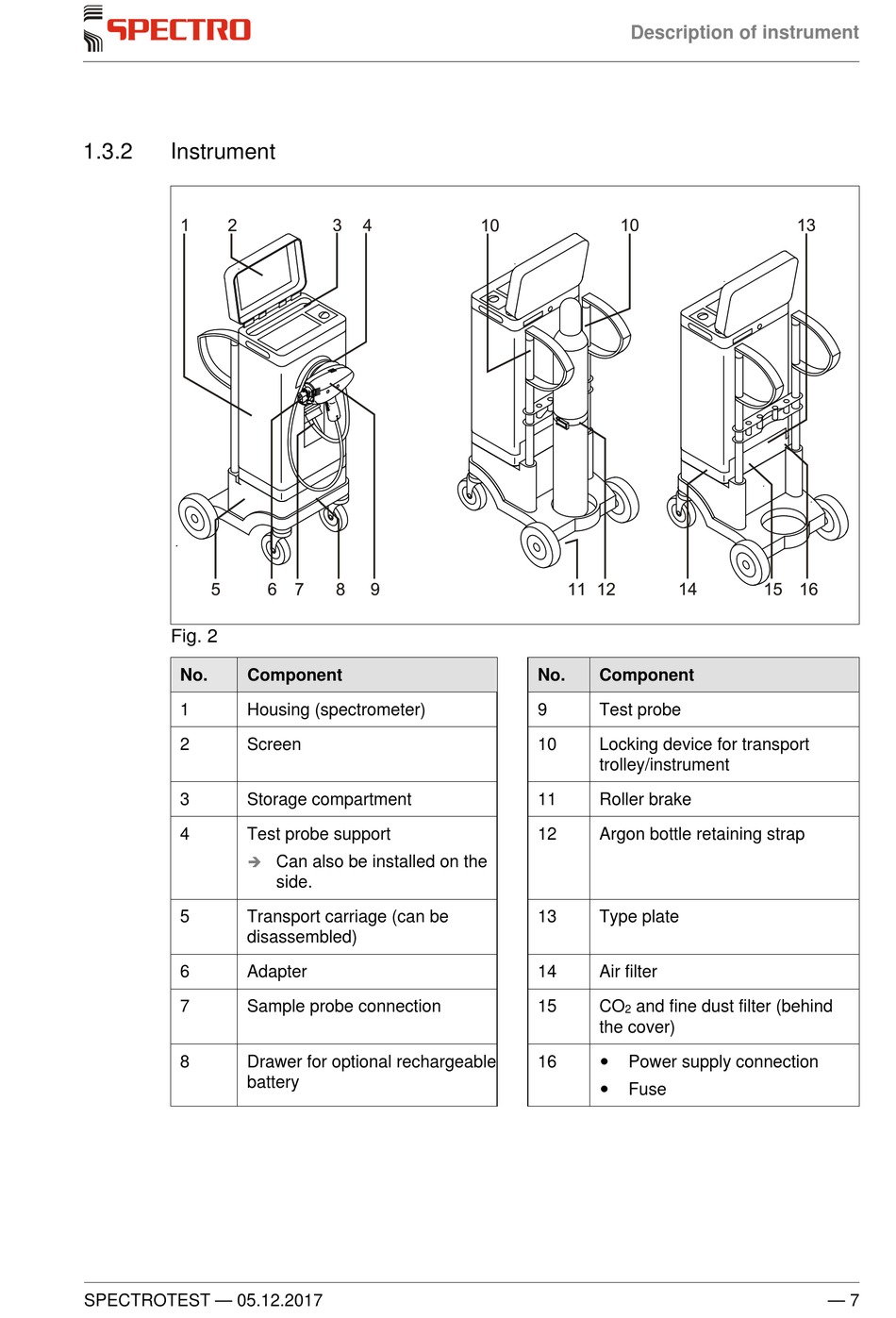

Fig. 2
No. Component
1 Housing (spectrometer)
2 Screen
3 Storage compartment
4 Test probe support

5 Transport carriage (can be
disassembled)
6 Adapter
7 Sample probe connection
8 Drawer for optional rechargeable
battery
SPECTROTEST — 05.12.2017
Can also be installed on the
side.
Description of instrument
No. Component
9 Test probe
10 Locking device for transport
trolley/instrument
11 Roller brake
12 Argon bottle retaining strap
13 Type plate
14 Air filter
15 CO and fine dust filter (behind
2
the cover)

16 Power supply connection

Fuse
— 7
