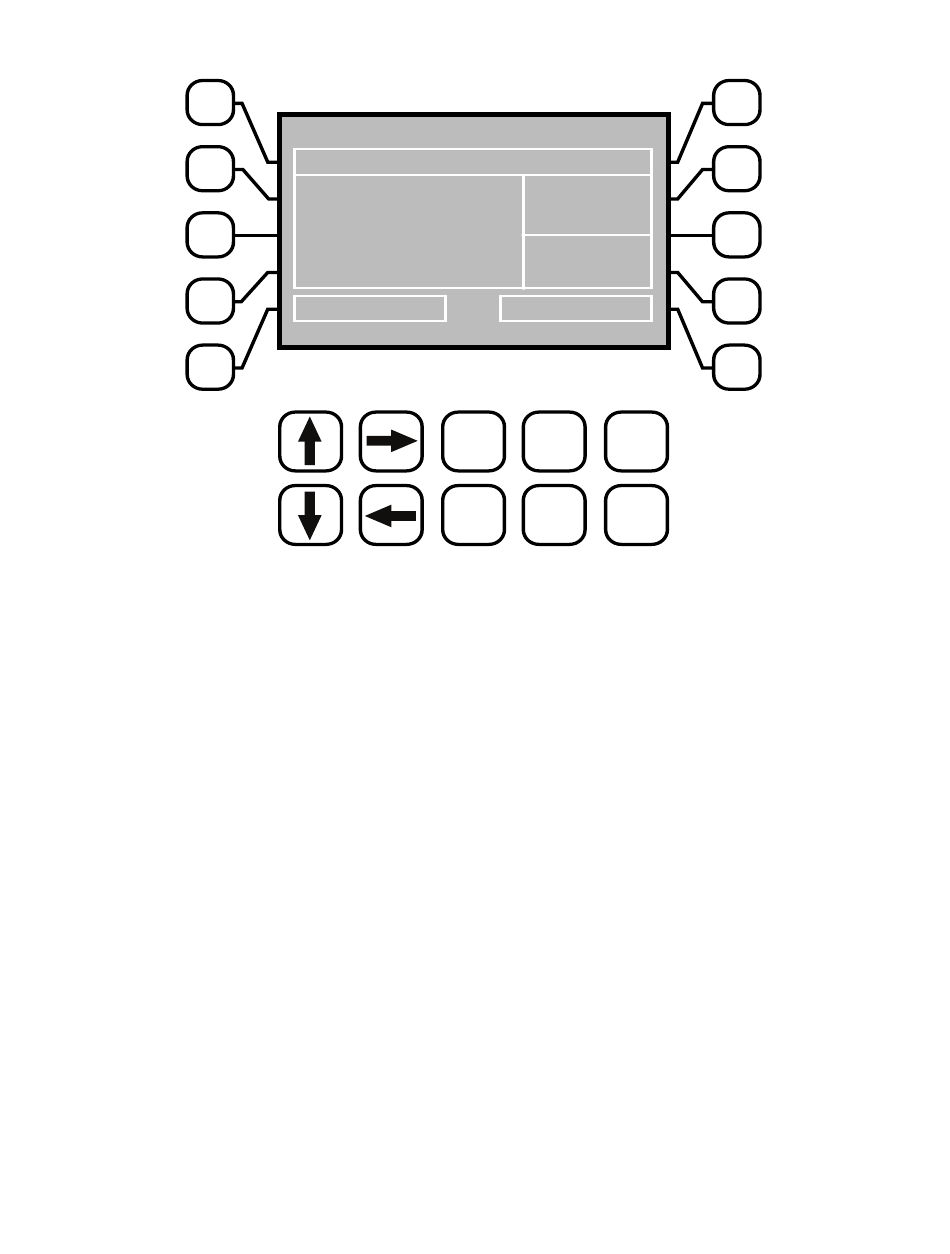

III. Front Panel Description
1
2
3
4
5
NUMBER Keys-
UP/DOWN -
LEFT/RIGHT -
SET UP/RUN -
ENTER -
HOME -
CANCEL -
HELP -
BACK -
The bottom right box in the RUN screen mode is a hot key that will take you directly to a particular menu
screen. The default is the RELAY status menu, but this can be changed by navigating to the desired
screen and pressing the HELP button. Follow the on-screen instructions to set the new hot key location.
ACI MEGATRON
SYS1: PROCESS 1
COND
1,400 uS/cm
pH
7.2
PSI
125
SYSTEM OK
Thursday, August 29, 2013
Used to enter new values in the SET UP mode and to access desired sub menus.
Used to cycle through text options to find desired setting.
Used to cycle through text or setting options to find desired setting.
System initializes into RUN mode. Press this key to put the controller in SET UP
Mode and see HOME menu page.
Used to log a changed value into program.
Used to go back to the HOME menu page.
Used to cancel a pop-up screen if no change is desired.
Used to access help screens.
Used to go back to last menu screen viewed or clear values keyed in that are not
wanted.
