Front Panel Description

Wed 10:59:57am
1 2
ENTER
MENU
V.

System Operation Overview

Description of Menus

NANOXL controllers have two modes of operation, Run and Menu. All menus are circular. Pressing the
DOWN key will display the next line of information on the display.
Run -
This mode is for normal operation. In the Run mode, the display will read system values. If an
alarm is present, the display flashes with the alarm status.
The Run menu will display values such as day, time, date and other values depending upon the
features present on the unit. The unit will automatically return to the Run mode if no keys are
pressed for three minutes.
Menu -
This mode is used to make adjustments to settings and readings on the controller. To access
the Menu mode from the run screen, press the Menu key. Use the up or down arrow to scroll
through the various menus. When you want to access a specific menu, press the Enter key.
Once you have entered a sub-menu you will be able to step through that menu's options with
the up or down arrow key.
MENU
FORCE
ON/OFF
3 4
ENTER
FORCE
ON/OFF
9

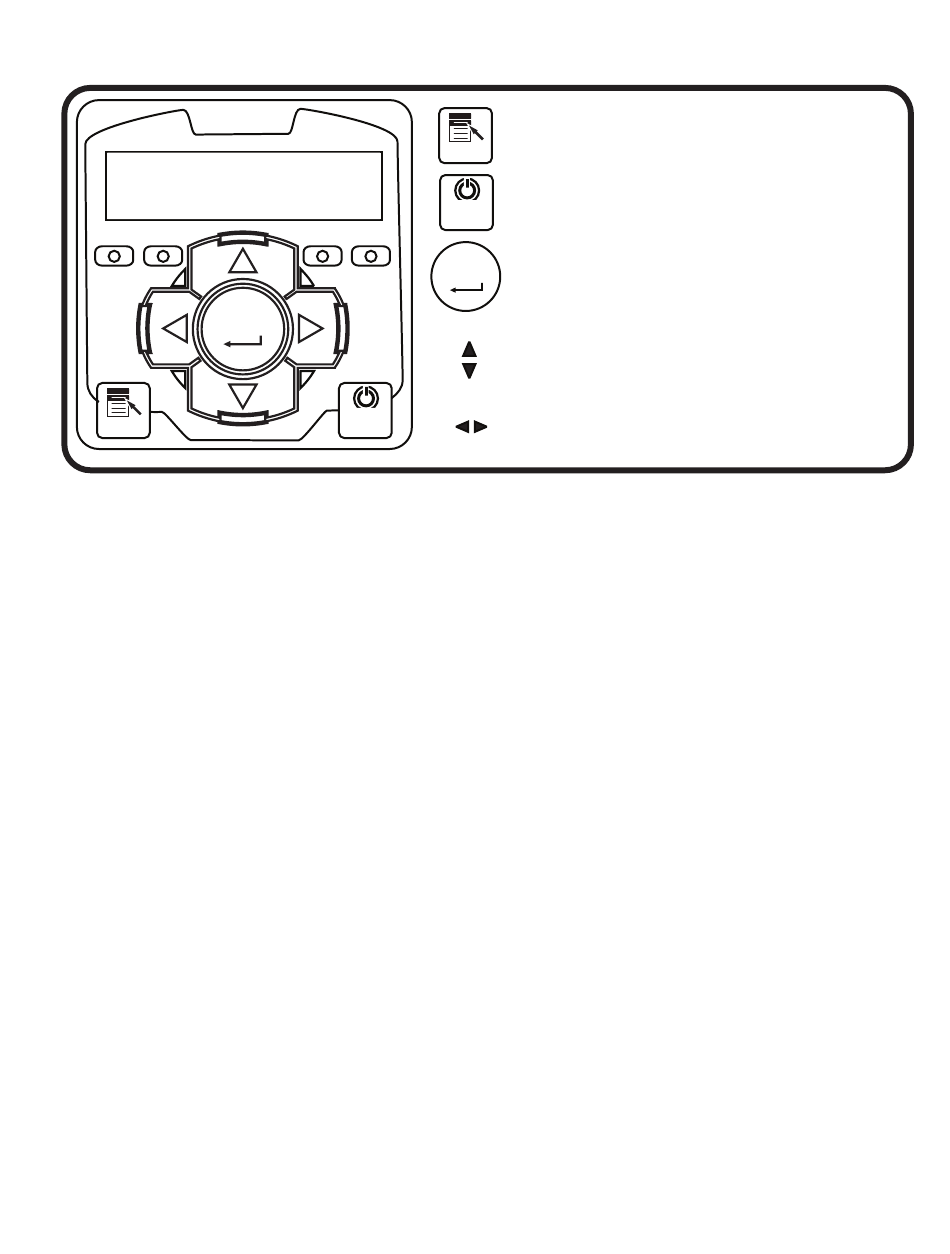

Press MENU to access menus or go back
one layer in menu structure.
Press FORCE to activate relays manually.
Press ENTER to go a layer deeper in menu,
to initiate a setting change and to set change.
Use up or down arrows to navigate through
menu selections or setting options.
Use left or right arrows to move cursor
while making a numerical value change.
