XS Controller - USB Functions
The XS is capable of transferring information
using a FAT formatted USB drive. The XS has
three main USB functions as detailed in the
following sections:
1. Exporting log data
2. Upgrading firmware
3. Cloning user settings for other XS units
Getting Started
With the controller powered up, plug the USB
drive into the XS USB port. The USB DRIVE
DETECTED pop-up window will appear.
Notes:
• You may be required to enter a password.
• USB drives must be FAT formatted.
• Not all customized names will be saved.

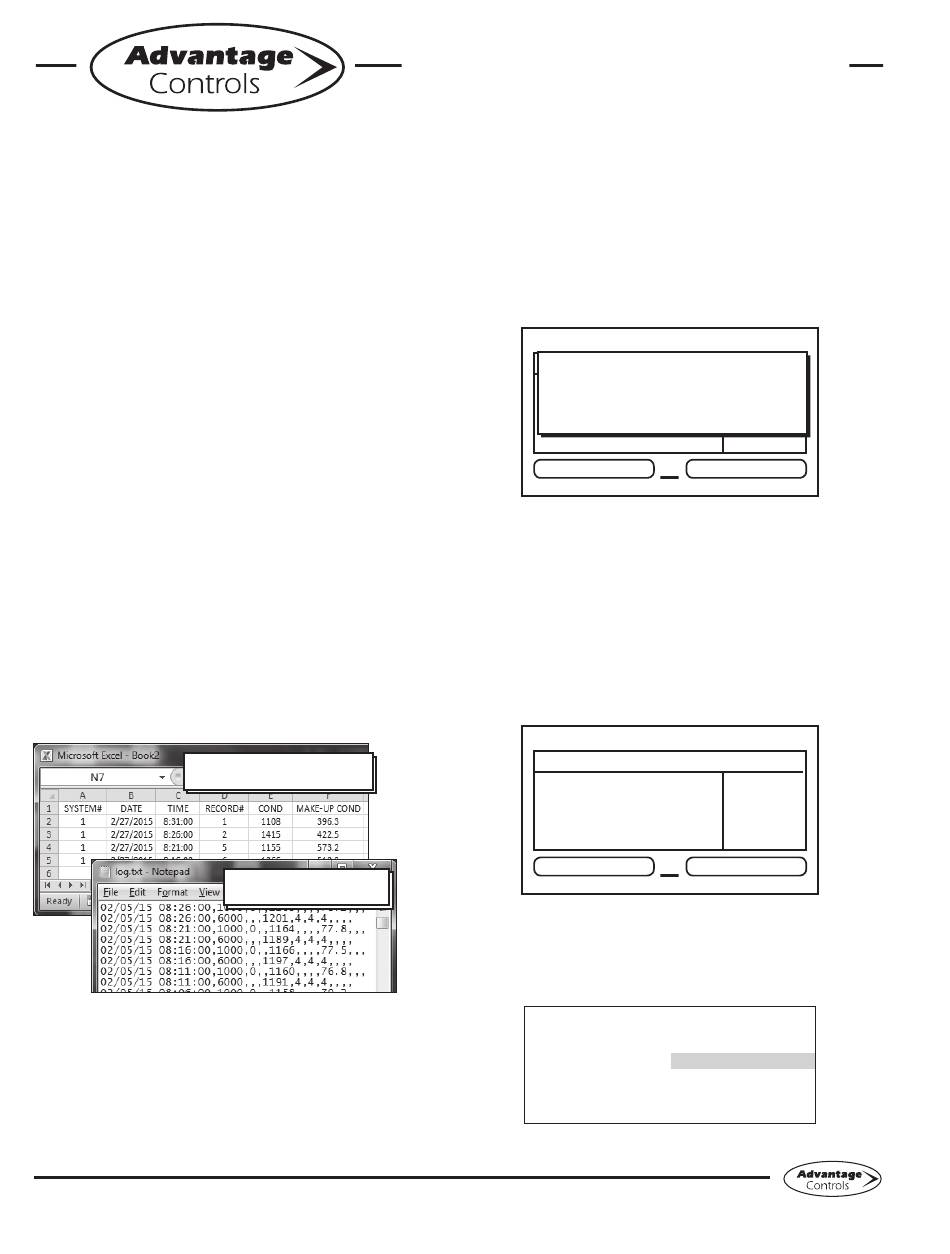

Exporting Log Data
History from an XS controller can be saved to a
USB drive in one of two file formats: WebAdvan-
tage or generic comma separated (default).
Comma Separated Format
Sample Log Data "log.txt" files
To change formats, see Step 2.
with header row
WebAdvantage Format
without header row
MegaTron Quick Steps
Step 1:
To transfer the contents of the XS history logs to the
USB drive, select → History → USB by using the Arrow
buttons. Then press ENTER.
SYS1:
USB DRIVE DETECTED
COND:
--> History --> USB
PRESS UP/DOWN KEYS TO CHANGE
PRESS ENTER TO ACCEPT
pH:
ORP:
3 ALARMS!
Friday, February 6, 2015
Note: Status will be displayed on the screen to show the
percent completed of each log record type. Once the
log is completely stored, the pop-up window will close. If
only a small amount of data is available the screen may
disappear quickly. The USB drive will now contain a file
name: example "LOG_AB-1234.TXT". The AB-1234 will
be the unit's serial number.
Step 2: Changing the File Format
This is the RUN Screen.
SYS1:
COND:
pH:
ORP:
3 ALARMS!
Friday, February 6, 2015
Step 3:
Push the SET UP RUN button to get this screen. From
here push CONFIGURE (Button 7) to go to the next
screen.
SETPOINTS
CALIBRATION
TIMERS
CUSTOMIZE
ALARMS
20
XS Controller
Towers 1-4
0 uS/cm TEMP1: 68°F
WM1: 0.0
WM2: 0.0
3.2
548 mV
FLOW: ON
DR
RELAYS
15:50:47 Wk1
XS Controller
Towers 1-4
0 uS/cm
TEMP1: 68°F
WM1: 0.0
WM2: 0.0
3.2
548 mV
FLOW: ON
DR
RELAYS
15:50:47 Wk1
>HOME SETUP<
DATE/TIME
CONFIGURE
HISTORY
WATER METER
RELAYS
