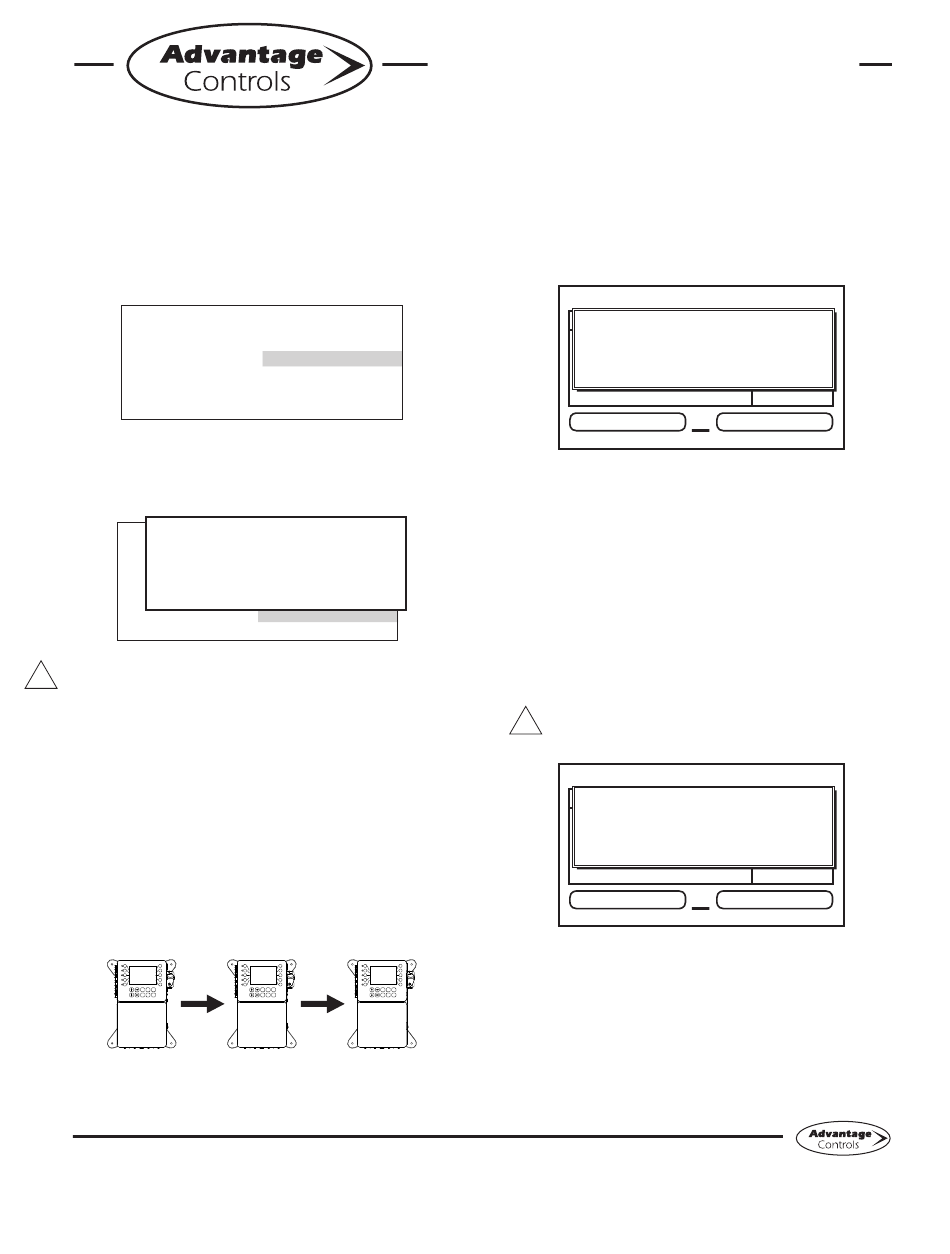

Advantage Controls MegaTrom XSi Product Manual page 22

After second update is complete, power down and
remove USB. Power back on (after 20 seconds) and
go to the Configure menu.
>HOME SETUP<
SETPOINTS
CALIBRATION
TIMERS
CUSTOMIZE
ALARMS
From here push SYS INFO (Button 9) and confirm
that the unit now has the new version and that the
CARD version is also current (consult factory for
current).
SYSTEM INFORMATION:
>CONFIGURE<
XS MEGATRON CONTROLLER
ADVANTAGE CONTROLS INC.
PASSWORD
FRMWARE REV: KA.10.03A Jan 29 2018
RELAYS S/N: SERIAL#
CARD VER: 5
HISTORY
FLOW SW
Warning:
If the card revision has not updated
!
to the newer version, the sensor function will not
work correctly. A few power cycles may be needed
to get the system card updated. The mA input
and communications card (if present) may need
to be removed with the power off and a power
cycle performed. Once the system card version is
updated, power back down and reinstall the mA and
communications cards.
Cloning User Settings for other XS Units
The XS has the ability to copy the User Settings
from one XS to another. This process is referred to
as cloning.
1 6
2 7
3 8
4 9
5 0
SET UP
RUN ENTER HOME
CANCEL HELP BACK
Step 1:
With the controller powered up, plug the USB drive
into the XS USB port. The USB DRIVE DETECTED
XS Controller - USB Functions
DATE/TIME
CONFIGURE
HISTORY
WATER METER
RELAYS
CONTRAST
TEMP SCALE
NETWORK
SYS INFO
FACTORY
1 6 1 6
2 7 2 7
3 8 3 8
4 9 4 9
5 0 5 0
SET UP SET UP
RUN ENTER HOME RUN ENTER HOME
CANCEL HELP BACK CANCEL HELP BACK
MegaTron Quick Steps
pop-up window will appear. Select → Config → USB
(Config to USB) by using the Arrow buttons. Then
press ENTER.
SYS1:
USB DRIVE DETECTED
COND:
PRESS UP/DOWN KEYS TO CHANGE
PRESS ENTER TO ACCEPT
pH:
ORP:
3 ALARMS!
Friday, February 6, 2015
The User settings will be saved to the USB drive under
the file name "CONFIG.BIN". The pop-up window will
close when the copy is completed.
Step 2:
Plug the USB drive into the XS that you would like
to copy the User Settings to.
DETECTED pop-up window will appear.
Select → USB → Config (USB to Config) by using
the Arrow buttons. Then press ENTER.
CAUTION: Do not choose → Config →
!
USB again or you will save over your USB
contained CONFIG.BIN file.
SYS1:
USB DRIVE DETECTED
COND:
PRESS UP/DOWN KEYS TO CHANGE
PRESS ENTER TO ACCEPT
pH:
ORP:
3 ALARMS!
Friday, February 6, 2015
The User Data will be loaded into the XS from the
USB drive. Once the pop-up window closes, cloning
has been completed.
Notes:
• Not all customized names will be cloned.
• If you have trouble reading clone files, insure
that the XS you are cloning has current
firmware.
22
XS Controller
Towers 1-4
0 uS/cm
TEMP1: 68°F
--> Config --> USB
WM1: 0.0
WM2: 0.0
3.2
548 mV
FLOW: ON
DR
RELAYS
15:50:47 Wk1
The USB DRIVE
XS Controller
Towers 1-4
0 uS/cm TEMP1: 68°F
--> USB --> Config
WM1: 0.0
WM2: 0.0
3.2
548 mV
FLOW: ON
DR
RELAYS
15:50:47 Wk1
