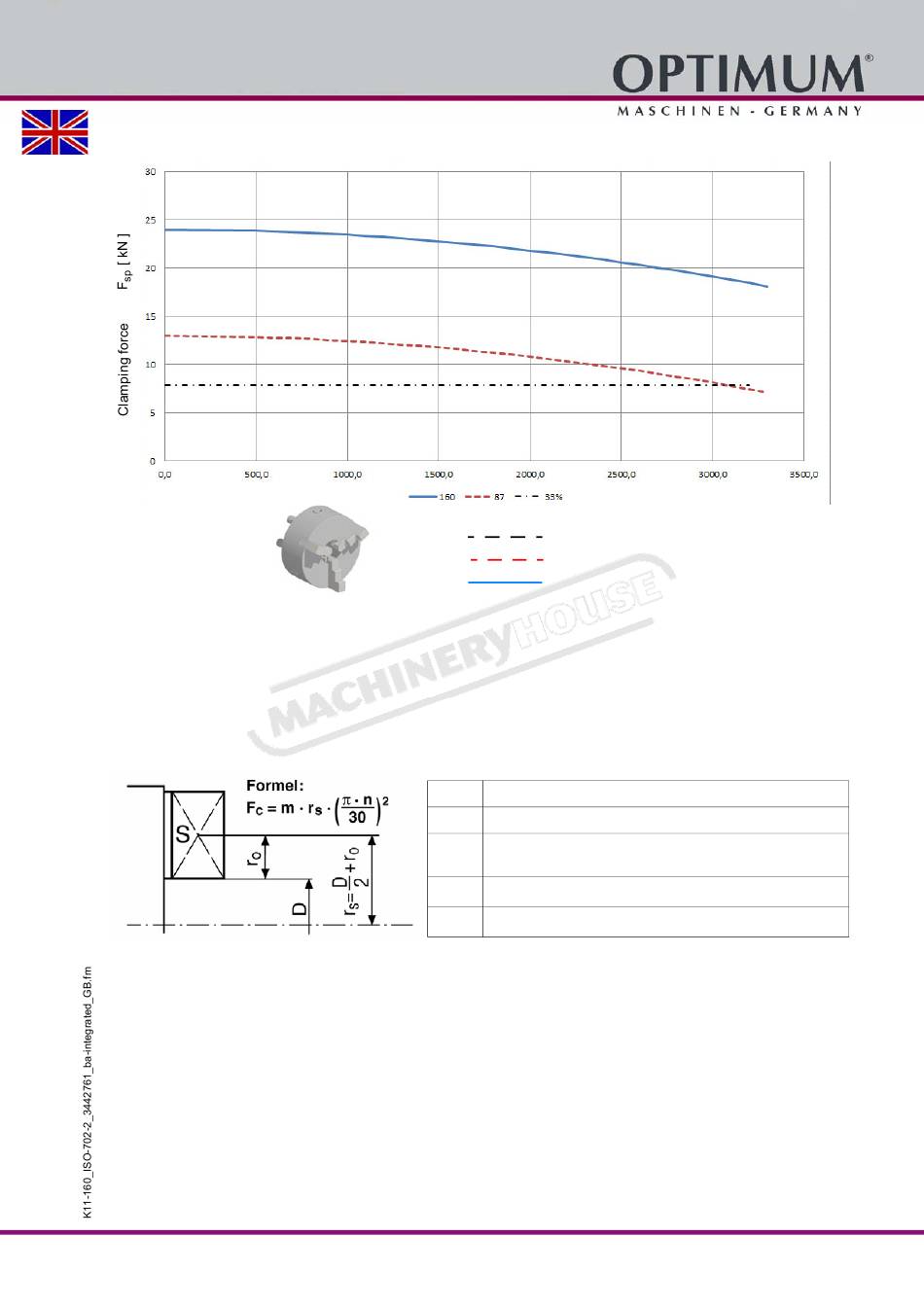

4.25.5 Clamping force-speed diagram - Lathe chuck K11-160

Speed n [rpm]
The clamping force to speed diagram shows the calculated centrifugal force with the matching
jaw design as a function for the speed if the chuck jaws do not protrude beyond the outer dia-
meter of the chuck.

4.25.6 Clamping jaw centrifugal force

To calculate the required tensioning force for processing a workpiece, the centrifugal force of
the clamping jaws must be taken into account.
The permissible speeds can be determined in accordance with VDI Guideline 3106 "Determi-
ning the permissible speed for lathe chucks (jaw chucks). This guideline also allows for the resi-
dual tensioning force at a specified speed to be determined.
Version 1.1.6 - 2021-09-17
Required minimum clamping force 33 %
Tightening torque with key 87 Nm
Tightening torque with key max. 160 Nm
Fc Centrifugal force in N
m Mass in kg/set
rs Centre of gravity distance to the centre of the chuck in
metres
n
-1
Speed min
r Centre of gravity distance to the clamping jaw
0
