●Product handling
∗Installation
•Tighten to the specified tightening torque.
If the tightening torque is exceeded the mounting screws, the product may damaged.
If the tightening torque is insufficient, the product may be displaced and the mounting screws may come loose.
•Ensure that the FG terminal is connected to ground when using a commercially available switch-mode
power supply.
•Do not drop, hit or apply excessive shock to the product.
Otherwise damage to the internal parts can result, causing malfunction.
•Do not pull the lead wire forcefully, or lift the product by the lead wire. (Tensile force 49 N or less)
Hold the product body when handling, to prevent damage, failure or malfunction.
•For piping of the product, hold the piping with a wrench on the metal part of the product.
Holding other parts with a wrench leads to may damage the product.
•Any dust left in the piping should be flushed out by air blow before connecting the piping to the product.
Otherwise damage or malfunction can result.
•Refer to the flow direction of the fluid indicated on the product label for installation and piping.
•Do not mount the body with the bottom facing upwards.
Retention of air can cause inability to measure accurately.
•Do not insert metal wires or other foreign matter into the piping port.
This can damage the sensor causing failure or malfunction.
•Never mount a product in a location that will be used as a foothold.
The product may be damaged if excessive force is applied by stepping or climbing onto it.
•Do not apply excessive rotational force to the monitor.
The monitor with integrated display can be rotated.
It can be positioned at 45 ° and 90 ° intervals, clockwise and anti-clockwise.
Rotating the display with excessive force will damage the end stop.
•If there is a risk of foreign matter entering the fluid, install and pipe a filter or the mist separator at the
inlet to avoid failure and malfunction.
Otherwise failure or malfunction can result, and it can cause inability to measure accurately.
It is possible to satisfy the air quality class indicated in the specification using the pneumatic circuit below.

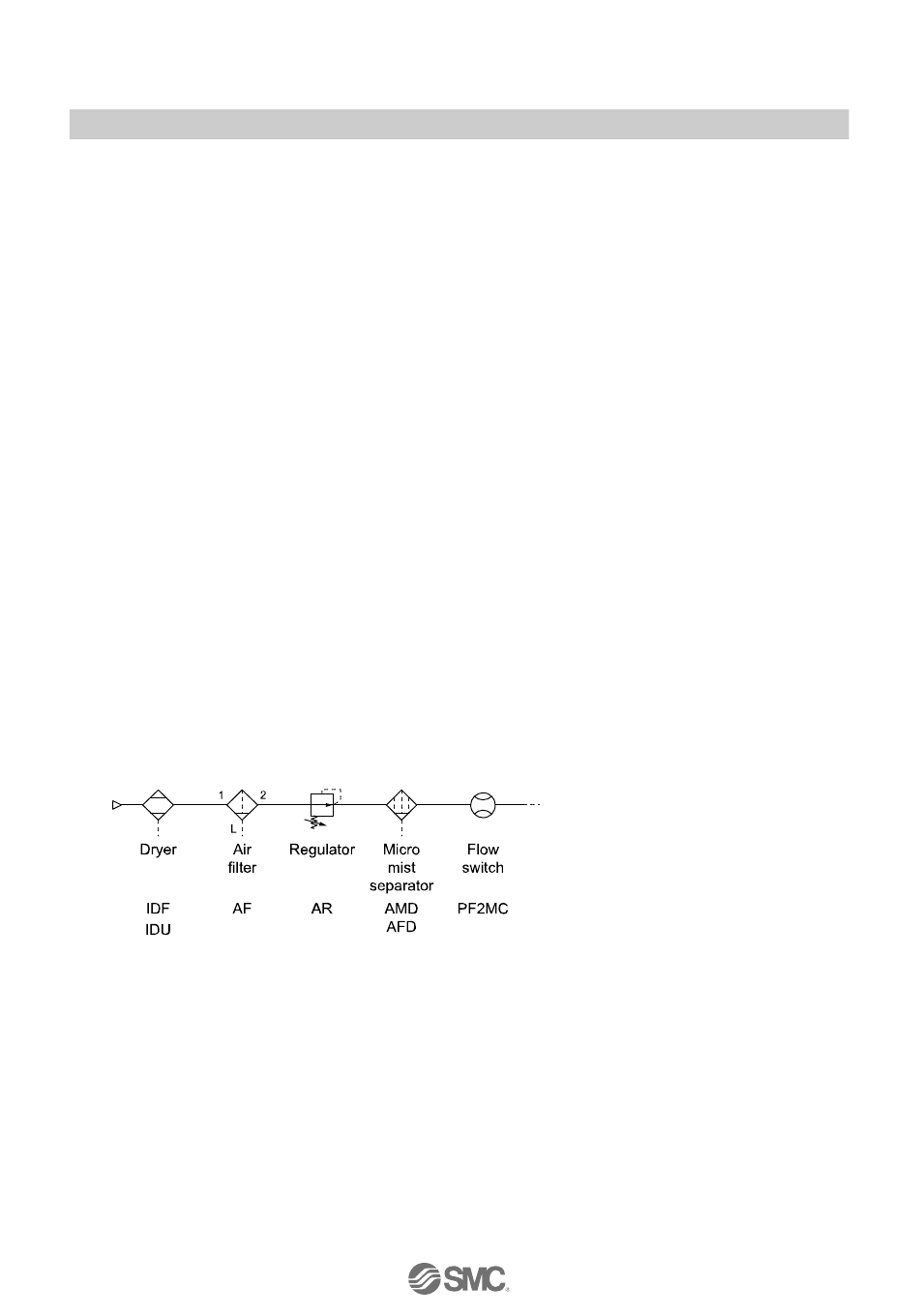

Recommended pneumatic circuit example (Compressed air)
