RGBlink mini User Manual page 8

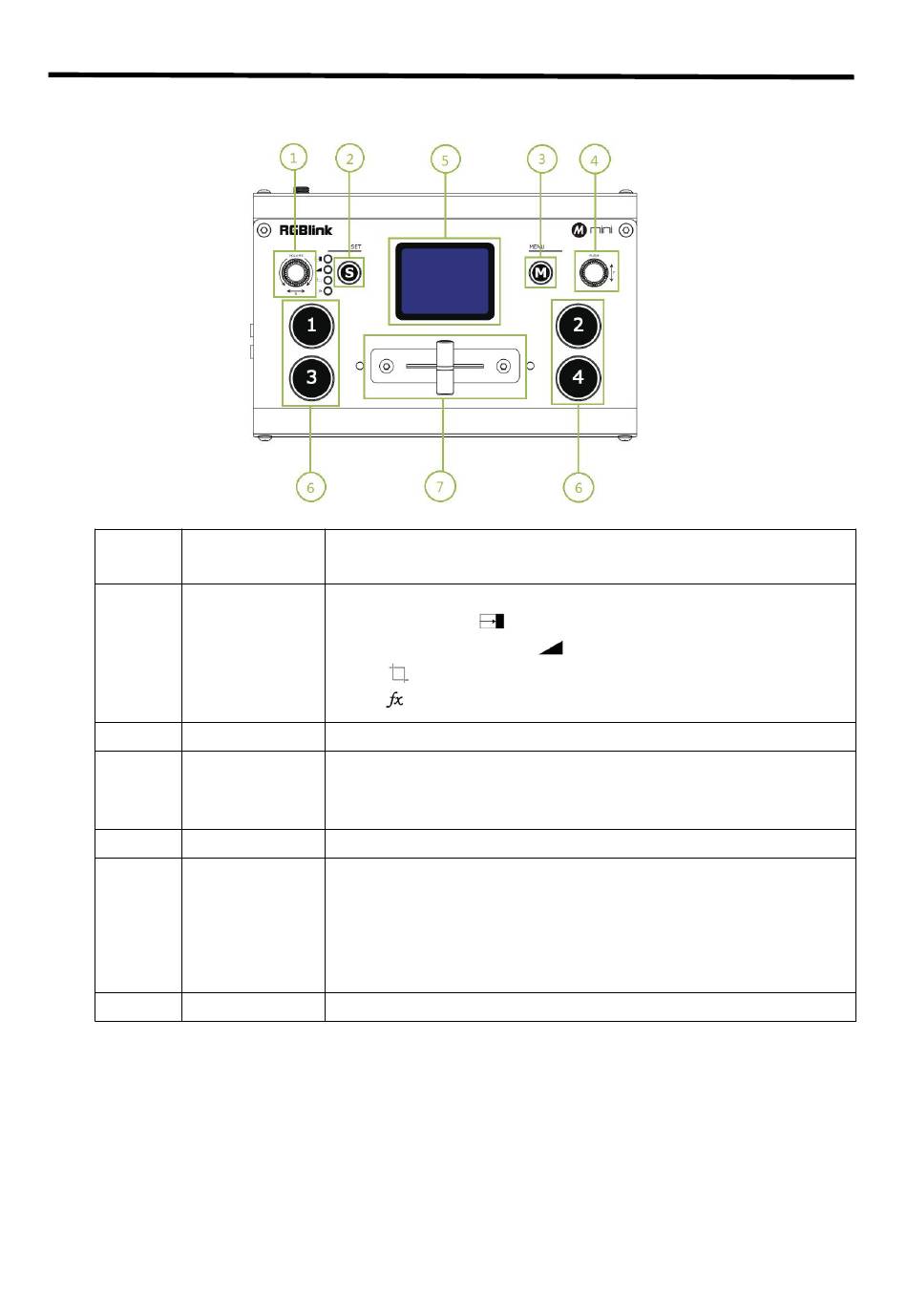

1.2.2 Front Panel
1 VOLUME/X
2 S
3 M(menu)
PUSH/Y
4
5 TFT display
1,2,3,4
6
7 T-Bar
mini
Turn to adjust volume of PGM
Control camera left-right spinning when it is in PTZ setting
Function selection button to select
1. Transition Effect (
2. Switch Mode(MODE:CUT
3. PIP( ),
4. FX( , preview 4 inputs)
Menu and back button
Y:turn knob to select menu item, push to confirm
PUSH:Push knob to quickly switch HDMI Out between 6-Picture PVW
and PGM when TFT is under the state of previewing 4 inputs
To display 4 inputs and menu
4 inputs,
1. red: is on air (PGM),
2. static green: signal is standing by,
3. flashing green: ready to be switched,
4. No light: input source is not supported
Manual switch, push to left end or right end to switch signal to PGM
User Manual
),
or T-Bar),
8
