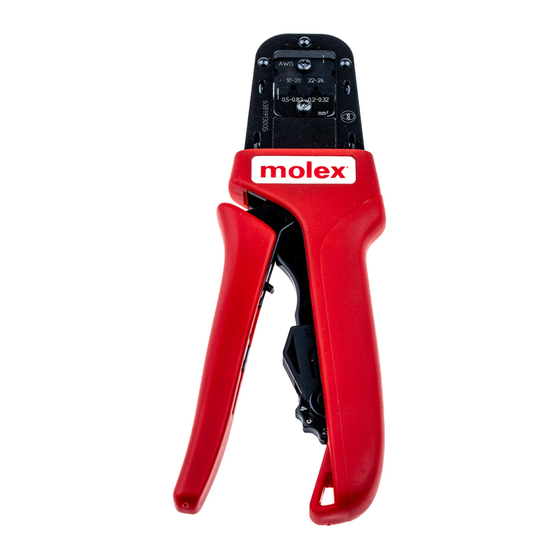

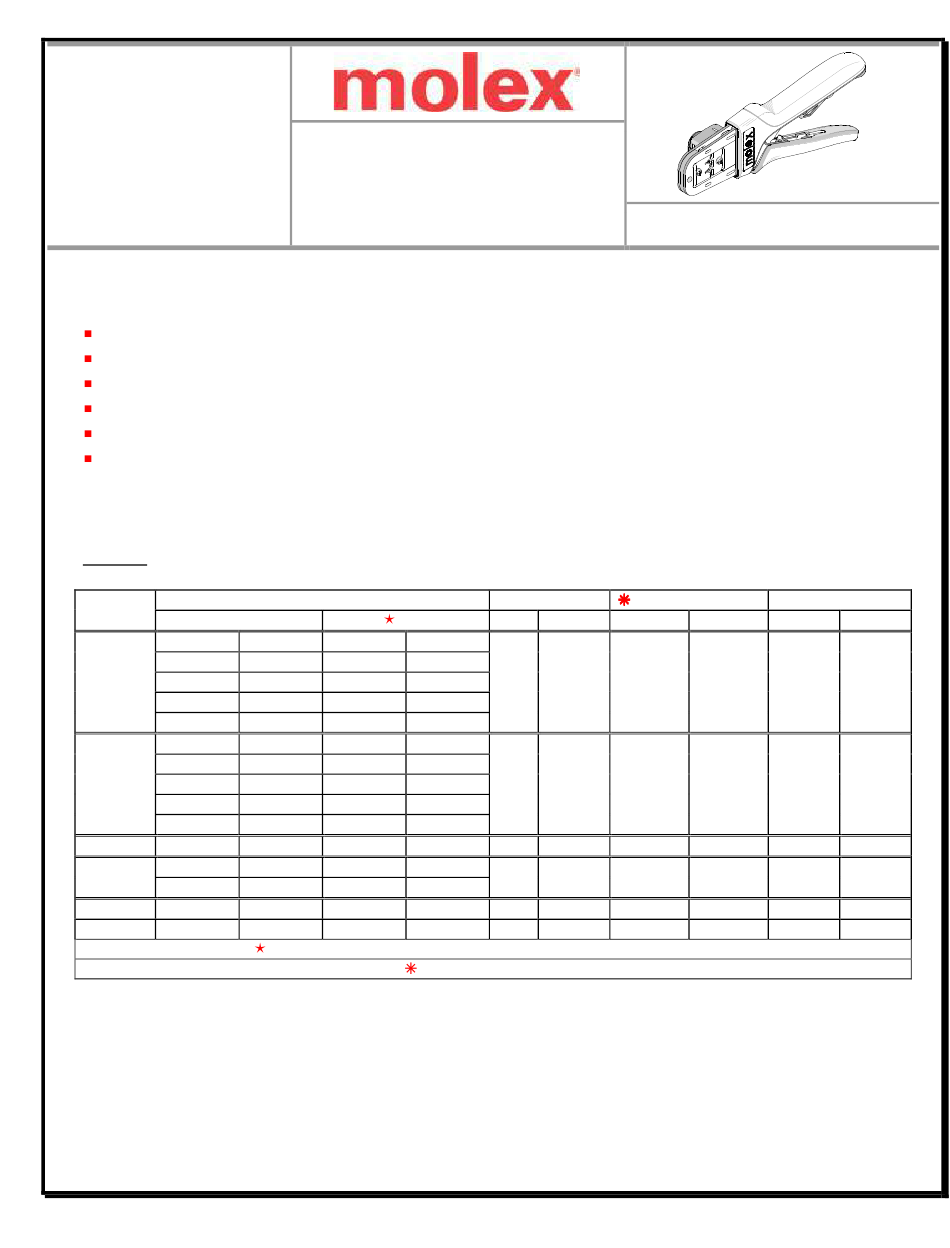

Hand Crimp Tool For Standard .062" Pin and Socket Crimp Terminals
Hand Crimp
Tool
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is WHMA-IPCA620 Class 2 compliant as indicated
This tool is RoHS compliant, however RoHS compliant is not required
SCOPE
Products: 1.57mm (.062") Diameter, Standard .062" Pin and Socket Crimp Terminals, 18-24 AWG.
Terminal
Series No.
Loose Piece
02-06-2103 02-06-6119 02-06-2101 02-06-6118
02-06-6102 04-01-0805 02-06-6100 39-00-0278
1560
02-06-6103 39-00-0327 02-06-6101 39-00-0328
02-06-6104 39-00-0330 02-06-6105 39-00-0329
02-06-6112
02-06-1103 04-01-0808 02-06-1101 04-01-0806
02-06-5102 39-00-0331 02-06-1118 39-00-0279
1561
02-06-5103 39-00-0334 02-06-5100 39-00-0332
02-06-5104
02-06-5109
1786
02-06-2202 02-06-6202 02-06-2201 02-06-6201 18-24 0.82-0.20
02-06-1202
1787
5005
08-70-0042 08-70-1012 08-70-0001 08-70-1011 18-24 0.82-0.20
5006
08-70-0043 08-70-1014 08-70-0002 08-70-1013 18-24 0.82-0.20
Doc No: ATS-638191300
Revision: F
Application Tooling
Specification Sheet
Terminal Order No.
Reel
02-06-6116
02-06-5101 39-00-0333
02-06-5108
02-06-1201 02-06-5205
02-06-5201
Customer to cut off terminal from reel: 0.13mm (.005") maximum Cut-off Tab.
See Conditions on page 3.
Release Date: 01-22-08
Revision Date: 08-31-12
Wire Size
Insulation Diameter
AWG
mm²
mm
18-24 0.82-0.20
1.52-3.05
18-24 0.82-0.20
1.52-3.05
1.52-3.05
18-24 0.82-0.20
1.52-3.05
1.30-3.00
1.30-3.00
UNCONTROLLED COPY
TYPE 4D
Order No. 63819-1300
Strip Length
In.
mm
In.
.060-.120
2.41-3.04 .095-.120
.060-.120
2.41-3.04 .095-.120
.060-.120
2.41-3.04 .095-.120
.060-.120
2.41-3.04 .095-.120
.051-.118
2.30-2.95 .090-.116
.051-.118
2.30-2.95 .090-.116
Page 1 of 9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63819-1300
Summary of Contents for molex 63819-1300
- Page 1 Tool Application Tooling TYPE 4D Specification Sheet Order No. 63819-1300 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position...
-
Page 2: Definition Of Terms
Hand Crimp Tool For Standard .062" Pin and Socket Crimp Terminals DEFINITION OF TERMS BEND UP CONDUCTOR BRUSH BELL MOUTH CRIMP INSULATION CRIMP ROLLING ▲SEE NOTE TWISTING STRIP BEND LENGTH DOWN CRIMP HEIGHT The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope. - Page 3 Profile 18-20: 1.70mm – 2.30mm (.067 -.091 inch) Profile 22-24: 1.85mm – 2.30mm (.073 -.091 inch) CAUTION: Crimp only the Molex terminals listed in the scope for this tool. Do not crimp hardened objects as damage can occur to the tool frame and/or crimp dies.
-
Page 4: Operation
Hand Crimp Tool For Standard .062" Pin and Socket Crimp Terminals Note: A crimp height chart is provided with this manual as Reference Only. Due to the HANDLE WILL SPRING OPEN wide range of wires, strands, insulation diameters, and durometer available, actual crimp height measurements may very slightly. - Page 5 Hand Crimp Tool For Standard .062" Pin and Socket Crimp Terminals WIRE STOP IS PART OF THE LOCATOR WIRE AGAINST TERMINAL THE WIRE STOP PRE-STRIPPED WIRE Figure 5 TERMINAL WIRE Note: The tamper proof ratchet action will not release the tool until it has been fully closed. 8.
-
Page 6: Maintenance
Hand Crimp Tool For Standard .062" Pin and Socket Crimp Terminals 1. Open the crimp hand tool. MATCH 2. Squeeze gently on the lower area shown in Figure UP MARKS 7A with your thumb and index finger. The lower tabs of the locator should disengage from the hand tool. -
Page 7: Warranty
This tool is designed for hand use only. Any clamping, fixturing, or use of handle extensions voids this warranty. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY Doc No: ATS-638191300... - Page 8 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
-
Page 9: Parts List
Hand Crimp Tool For Standard .062" Pin and Socket Crimp Terminals PARTS LIST Item Number Order Number Description Quantity 63819-1300 Hand Crimp Tool Figure 13 63819-1375 Locator Assembly (Red) 63810-0104 Spring, Return 63810-0105 Spring, Ratchet RATCHET RELEASE LEVER Figure 13 http://www.molex.com...
