Table of Contents

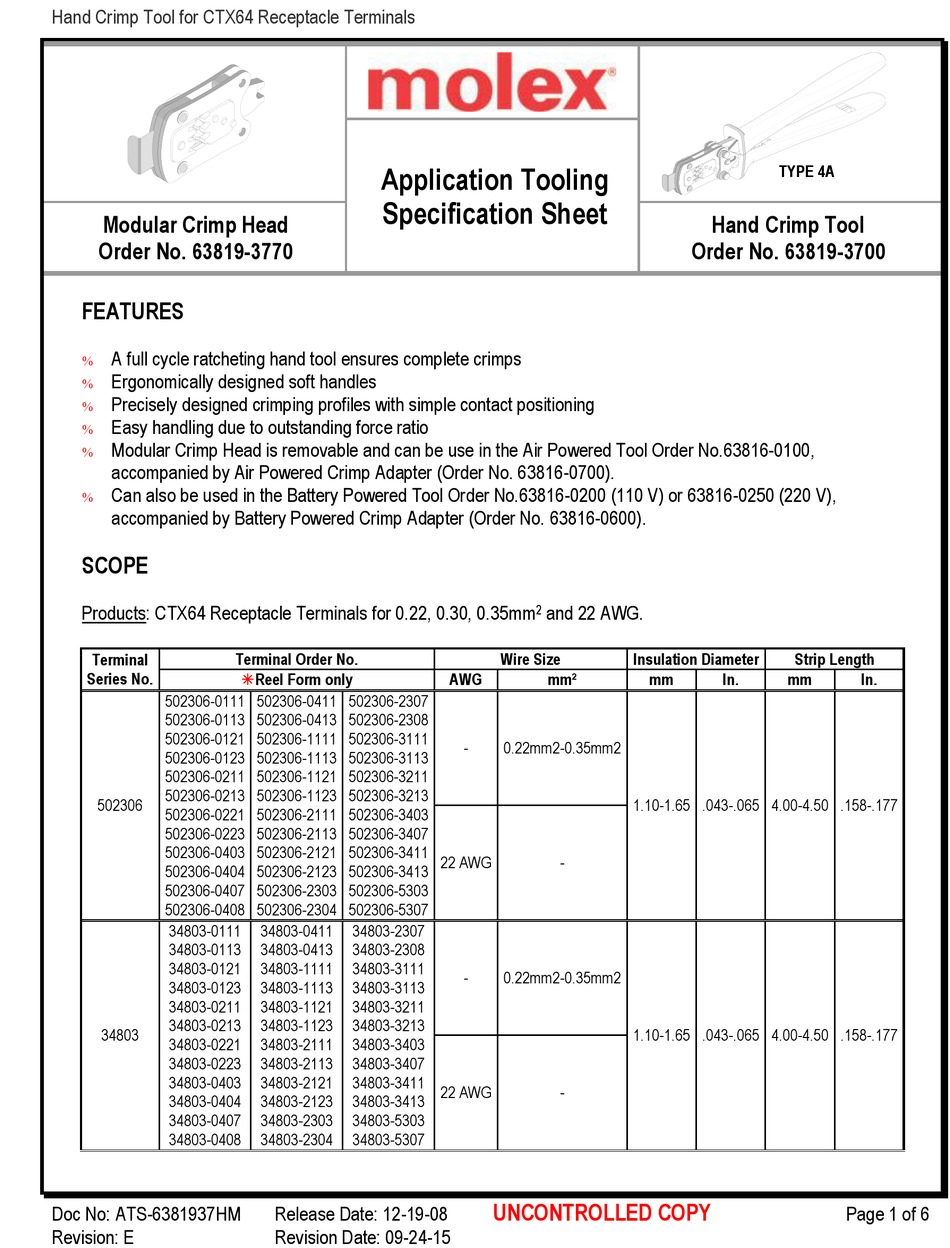

Hand Crimp Tool for CTX64 Receptacle Terminals
Modular Crimp Head
Order No. 63819-3770
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: CTX64 Receptacle Terminals for 0.22, 0.30, 0.35mm
Terminal
Series No.
502306-0111
502306-0113
502306-0121
502306-0123
502306-0211
502306-0213
502306
502306-0221
502306-0223
502306-0403
502306-0404
502306-0407
502306-0408
34803-0111
34803-0113
34803-0121
34803-0123
34803-0211
34803-0213
34803
34803-0221
34803-0223
34803-0403
34803-0404
34803-0407
34803-0408
Doc No: ATS-6381937HM
Revision: E
Application Tooling
Specification Sheet
Terminal Order No.
Reel Form only
502306-0411
502306-2307
502306-0413
502306-2308
502306-1111
502306-3111
502306-1113
502306-3113
502306-1121
502306-3211
502306-1123
502306-3213
502306-2111
502306-3403
502306-2113
502306-3407
502306-2121
502306-3411
502306-2123
502306-3413
502306-2303
502306-5303
502306-2304
502306-5307
34803-0411
34803-2307
34803-0413
34803-2308
34803-1111
34803-3111
34803-1113
34803-3113
34803-1121
34803-3211
34803-1123
34803-3213
34803-2111
34803-3403
34803-2113
34803-3407
34803-2121
34803-3411
34803-2123
34803-3413
34803-2303
34803-5303
34803-2304
34803-5307
Release Date: 12-19-08
Revision Date: 09-24-15
and 22 AWG.
2
Wire Size
AWG
mm²
-
0.22mm2-0.35mm2
22 AWG
-
-
0.22mm2-0.35mm2
22 AWG
-
UNCONTROLLED COPY

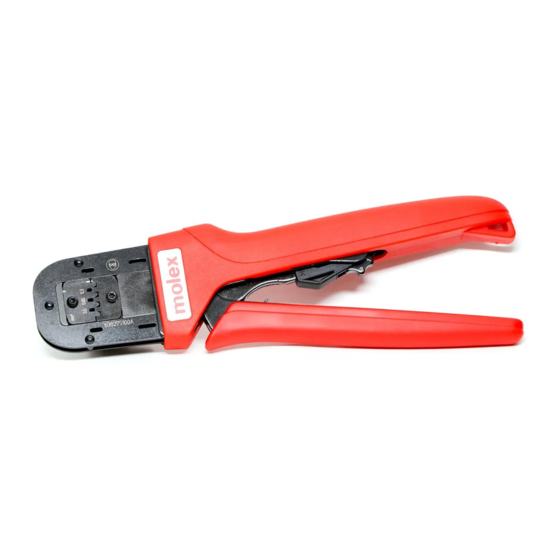

TYPE 4A
Hand Crimp Tool
Order No. 63819-3700
Insulation Diameter
Strip Length
mm
In.
mm
1.10-1.65 .043-.065 4.00-4.50 .158-.177
1.10-1.65 .043-.065 4.00-4.50 .158-.177
In.
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63819-3700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 63819-3700

Summary of Contents for molex 63819-3700

  • Page 1 TYPE 4A Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63819-3770 Order No. 63819-3700 FEATURES A full cycle ratcheting hand tool ensures complete crimps  Ergonomically designed soft handles  Precisely designed crimping profiles with simple contact positioning ...

  • Page 2: Definition Of Terms

    Hand Crimp Tool for CTX64 Receptacle Terminals 34863-0211 34863-0411 34863-3403 0.22mm2-0.35mm2 34863-0213 34863-0413 34863-3407 34863 1.10-1.65 .043-.065 4.00-4.50 .158-.177 34863-0403 34863-3211 34863-3411 22 AWG 34863-0407 34863-3213 34863-3413 34970-3111 0.22mm2-0.35mm2 34970-3403 34970-3413 34970-3113 34970 34970-3407 34970-5303 1.10-1.65 .043-.065 4.00-4.50 .158-.177 34970-3211 34970-3411 34970-5307 22 AWG...

  • Page 3: Operation

    Hand Crimp Tool for CTX64 Receptacle Terminals CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects - damage can occur to the tool or die. OPERATION Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.

  • Page 4: Maintenance

    3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
  • Page 5 Hand Crimp Tool for CTX64 Receptacle Terminals 6. Molex does not certify crimp hand tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. Applications for the Modular Crimp Head WARNING: NEVER operate, service, install, or adjust this Modular Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet.

  • Page 6: Parts List

    Crimping Spring HANDLE SPRING M4 X 14mm LONG BHCS RATCHET RELEASE LEVER Figure 7 CRIMPING SPRING (2) Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381937HM Release Date: 12-19-08 Page 6 of 6 Revision: E Revision Date: 09-24-15...
