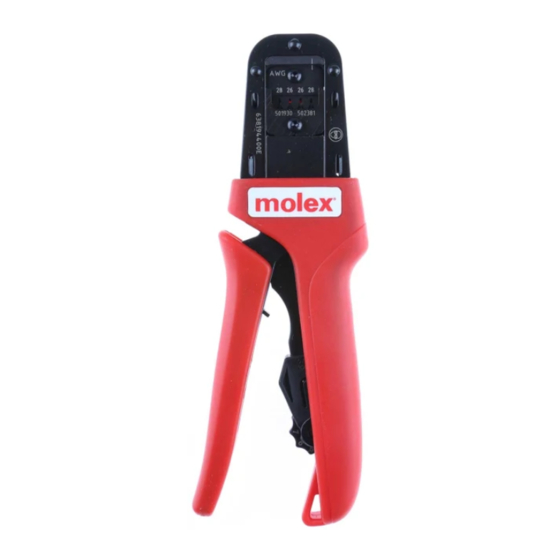

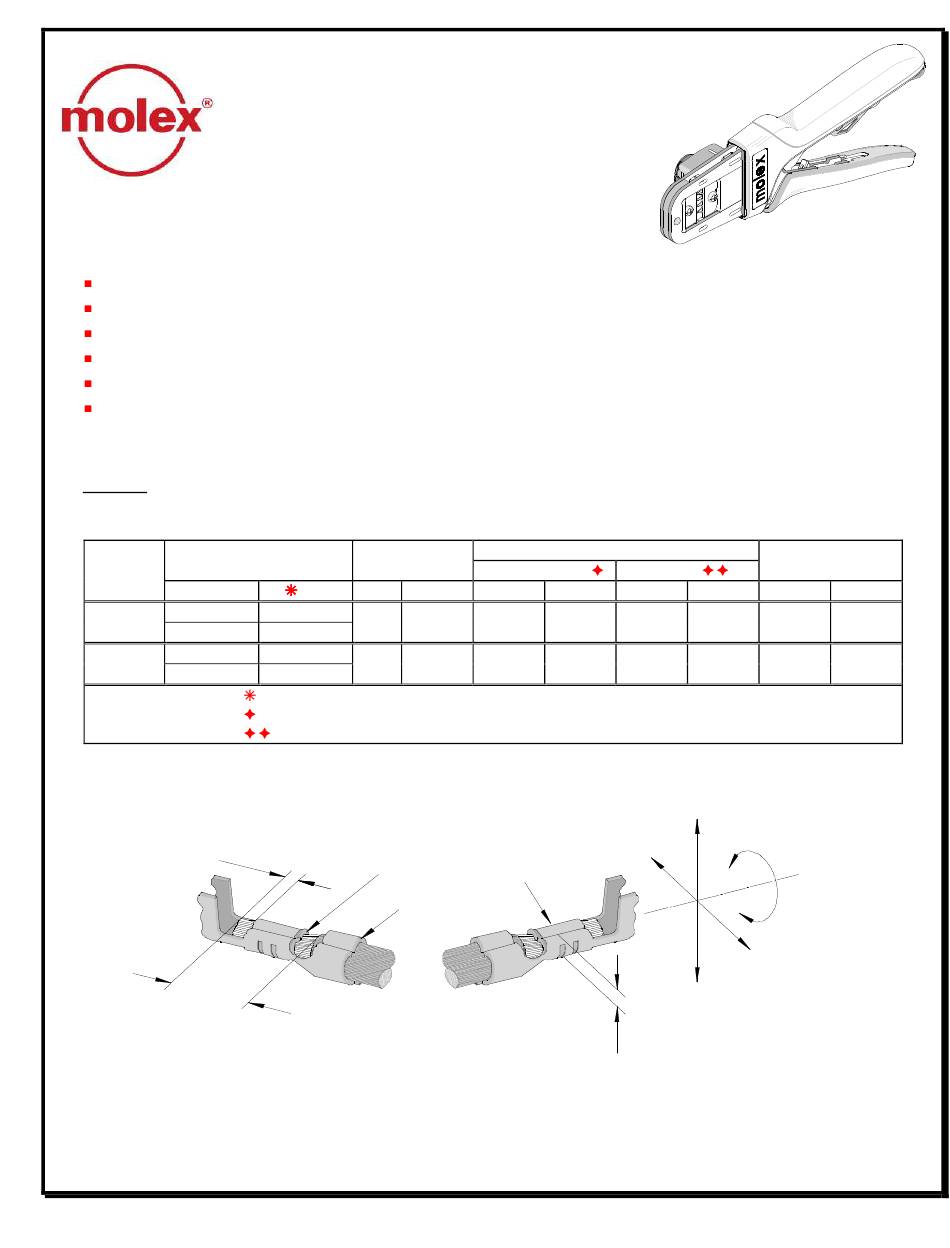

Hand Crimp Tool For
1.25mm (.049") Pitch Crimp Terminals
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is IPC/WHMA A-620 Class 2 compliant
This tool is RoHS compliant, however RoHS compliant is not required
SCOPE
Products: 1.25mm (.049") Pitch Wire-to-Board Crimp Terminal, 26-28 AWG.
1.25mm (.049") Pitch CLIK-Mate™ Wire-to-Board Crimp Terminal, 26-28 AWG.
Terminal Order No.
Terminal
Series No.
Loose Piece
501930-0200 501930-0100
501930
501930-1200 501930-1100
502381
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-638194400
Revision: A
HAND CRIMP TOOL
Specification Sheet
Order No. 63819-4400
Wire Size
Reel
AWG
mm²
26-28 .136-.079 0.80-1.00 .032-.039 0.80-1.00 .031-.039 1.50-1.70 .059-.067
502381-0000
26-28 .136-.079 0.80-1.00 .032-.039 0.80-1.00 .031-.039 1.50-1.70 .059-.067
502381-0010
Customer to cut off terminal from reel: 0.15mm (.006") maximum Cut-off Tab.
To achieve optimum IPC-A620 Class 2 insulation crimps, use this insulation OD range.
Overall insulation OD specification for terminal.
BELL MOUTH
INSULATION
CRIMP
Release Date: 10-31-08
Revision Date: 10-31-08
Insulation Diameter
IPC/WHMA-A620
Terminal
mm
In.
mm
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4D
Strip Length
In.
mm
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 7
In.
Advertisement
Table of Contents
Related Manuals for molex 63819-4400
Summary of Contents for molex 63819-4400
- Page 1 Hand Crimp Tool For 1.25mm (.049") Pitch Crimp Terminals HAND CRIMP TOOL Specification Sheet Order No. 63819-4400 TYPE 4D FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position...
- Page 2 2.20 OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together. At the end of the closing stroke, the ratchet mechanism will release the handles and the hand tool will spring open.
- Page 3 Hand Crimp Tool For 1.25mm (.049") Pitch Crimp Terminals RELEASE LOCATOR LOCATOR LOCATOR BUTTON PUSHED THRU TOOLING LOCATOR BUTTON PUSHED IN Figure 3 TERMINAL TERMINAL TOOLING 4. Release the locator button, allowing the locator to return to the crimping PARTIALLY CLOSED position.
- Page 4 Hand Crimp Tool For 1.25mm (.049") Pitch Crimp Terminals WIRE 10. On some large O.D. wires, it may not be possible to insert the wire with the tool partially closed. Those wires should be inserted with the hand tool in the open position. Insert the wire above the terminal in the punch and against the wire stop then close the tool.
- Page 5 Hand Crimp Tool For 1.25mm (.049") Pitch Crimp Terminals Right or Left Hand Operation MATCH UP MARKS This hand tool has an added feature that can be converted from a right handed application to a left handed application. It is necessary to reverse the Figure 9 tooling if using the left handed application along with the locator.
- Page 6 Molex does not certify or re-certify hand tools but rather supplies the following guidelines for customers to re-certify hand tools. This tool is qualified to pull force only. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 7 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638194400 Release Date: 10-31-08 Page 7 of 7 Revision: A Revision Date: 10-31-08...
