Table of Contents
Related Manuals for molex 63819-0500
Summary of Contents for molex 63819-0500
- Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.

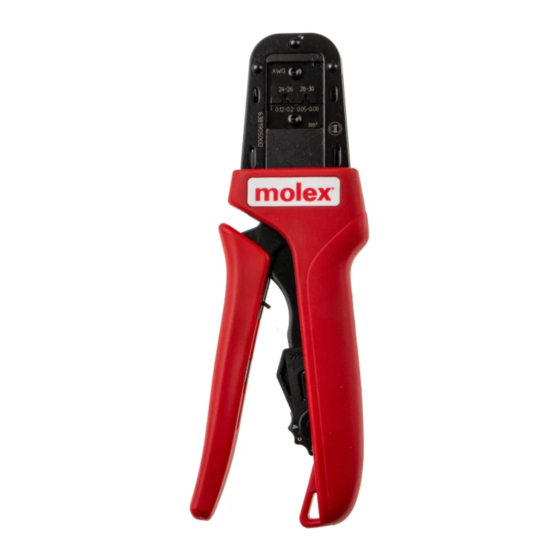

- Page 2 Hand Crimp Tool For 2.00mm (.079") Pitch Crimp Terminals "# " $ %&'()*+,++ A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user"friendly terminal locator wire stop holds terminals in the proper crimping position Right and Left handed applications This tool is IPC/WHMA A"620 Class 2 compliant as indicated This tool is RoHS compliant, however RoHS compliant is not required...
- Page 3 See figure to the right. (Some tools with multiple crimp pockets may not have the “overlap” profile on all pockets). 3 Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
- Page 4 Hand Crimp Tool For 2.00mm (.079") Pitch Crimp Terminals " - "- 1. Select the desired terminal listed in the preceding charts. 2. Make sure the center of the locator is in the down position. With the locator attached, push the locator button on the back of the hand tool to bring the locator forward through the tooling.
- Page 5 Hand Crimp Tool For 2.00mm (.079") Pitch Crimp Terminals 8. Remove the crimped terminal from the terminal locator by pulling on the wire. 9. Visually inspect the crimped terminal for proper crimp location. 10. On some large O.D. wires, it may not be possible to insert the wire with the tool partially closed.
- Page 6 Hand Crimp Tool For 2.00mm (.079") Pitch Crimp Terminals 1. The locator must be removed before reversing the tooling. < 2. Remove the M3 BHCS which is holding the upper tooling. 3. Flip the upper tooling to the opposite side and 0"...
- Page 7 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 8 . " 63819"0500 Hand Crimp Tool Figure 13 63819"0575 Locator Assembly 63810"0104 Spring, Return 63810"0105 Spring, Ratchet & 0" (& Visit our Web site at http://www.molex.com Doc No: ATS"638190500 Release Date: 11"26"07 Page 7 of 7 Revision: D Revision Date: 01"26"12...
