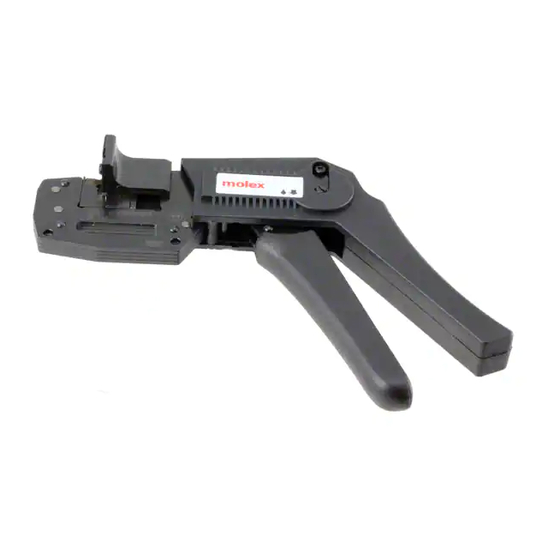

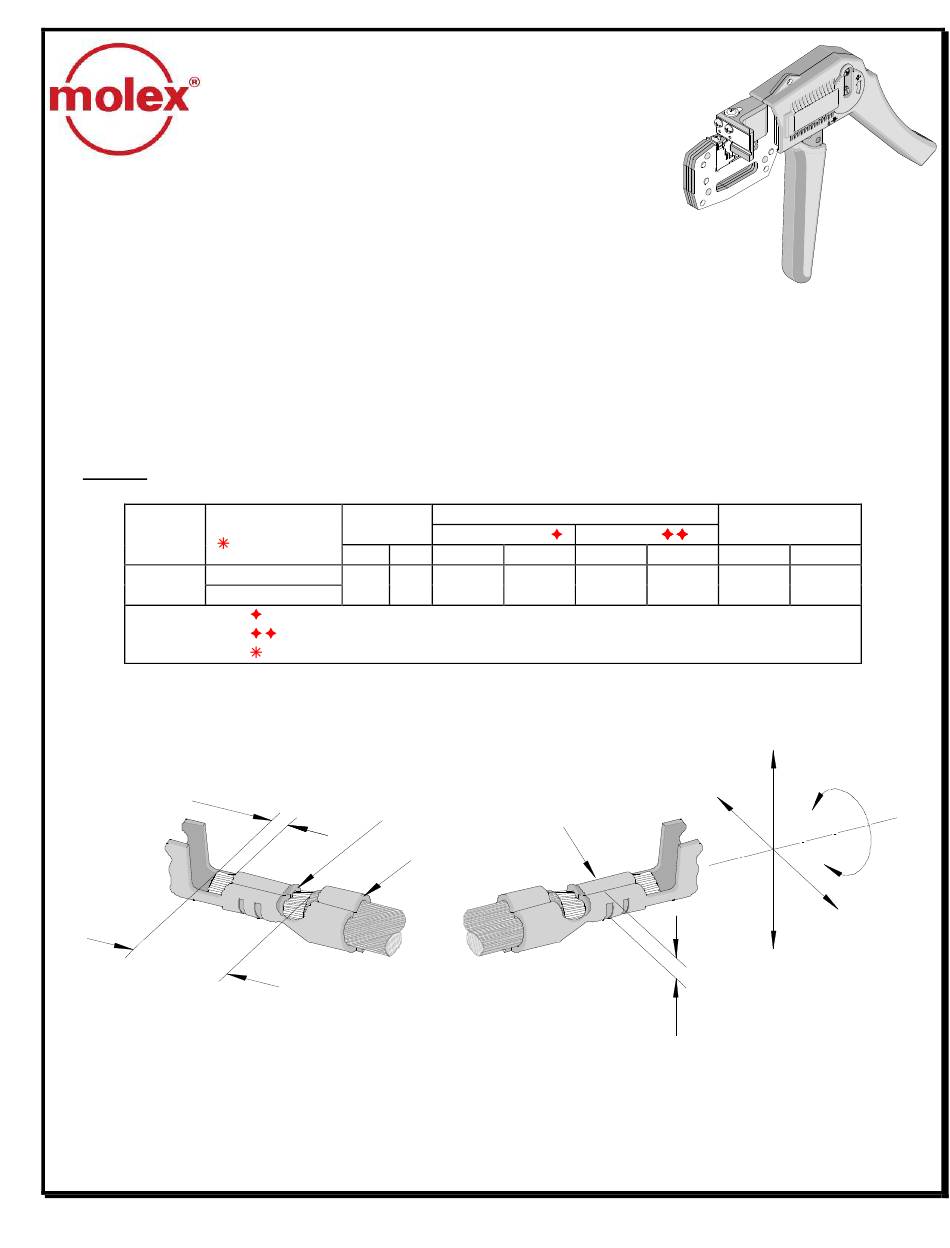

Hand Crimp Tool 1.20mm (.047") Pitch Pico-EZmate™ Crimp Terminals
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
This tool is designed to be used with reeled product due to the small size of the connector
%
This tool is designed for prototype work only and is not designed for production
%
The reeled product must be cut into 5-inch strips to be processed in this hand tool
%
This tool is IPC/WHMA A-620 Class 2 compliant as indicated
%
This tool is RoHS compliant, however RoHS compliant is not required
%
SCOPE
Products: 1.20mm (.047") Pitch Pico-EZmate™ Wire-to-Board Crimp Terminal, 28 AWG.
Terminal
Terminal Order No.
Series No.
Reel Form Only
78172
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381948000
Revision: A
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63819-4800
Wire Size
AWG mm²
78172-0410
28
0.08 0.55-0.70 .022-.028 0.55-0.70 .022-.028 0.90-1.30 .035-.051
78172-0411
To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
Overall insulation OD specification for terminal.
Customer to cut off terminal from reel: 0.05mm (.002") maximum Cut-off Tab.
BELL MOUTH
INSULATION
CRIMP
Release Date: 08-17-09
Revision Date: 08-17-09
Insulation Diameter
IPC/WHMA-A620
Terminal
mm
In.
mm
CONDUCTOR
CRIMP
UNCONTROLLED COPY
Strip Length
In.
mm
BEND UP
BEND
DOWN
CRIMP HEIGHT
TYPE 7
In.
ROLLING
TWISTING
Page 1 of 6
